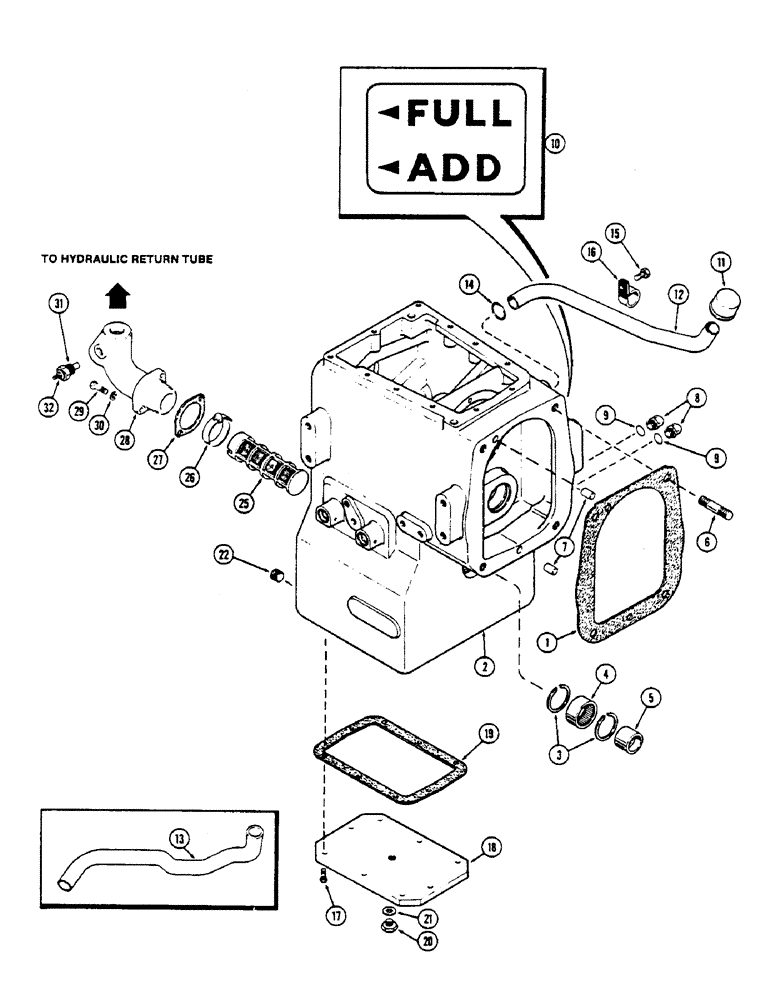

Запчасти Case IH 2670 (194) - TRANSMISSION HOUSING AND ATTACHING PARTS, BEFORE TRANSMISSION SERIAL NUMBER 10054311 (06) - POWER TRAIN

1

A58138

GASKET

- clutch housing to transmission housing

1шт.

2

A76522

TRANSMISSION

CASE - transmission (Order 1-A150088, 1-A144094, 2-A142879, and 1-A144093)

1шт.

3

A76298

SNAP RING,#300, 3.222", Int

RING - snap, output shaft needle bearing, 3.222" free OD, 0.093" thick

2шт.

4

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - needle, output shaft, front, 2.2521" ID x 3 OD x 1.5" wide

1шт.

5

A76505

BEARING, CONE

RACE - inner, output shaft needle bearing, 2" ID x 2.2489" OD x 1.76" wide

1шт.

6

A151866

STUD

- transmission housing to clutch housing, 7/8" NF x 4" (Replaces A7073)

4шт.

7

A28269

PIN

- dowel, clutch hsg. to trans. case (3/4 x 1-1/4")

2шт.

8

A58420

GAUGE

ASSY. - oil level sight

2шт.

9

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- sight gauge, 5/8 x 13/16 x 3/32"

1шт.

10

321-2470

DECAL

- trans. oil level

1шт.

11

A27973

CAP

- filler and breather

1шт.

12

A138464

TUBE

- oil filler and breather (1st used trans. ser. no. 10025310)

1шт.

13

A75165

TUBE

- oil filler and breather (Used before trans. ser. no. 10025310)

1шт.

14

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- oil filler and breather tube (1-31/64 I.D. x 1-49/64" O.D. x 9/64" thick)

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

16

49773

CLAMP

- oil filler and breather tube

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

18

A140244

COVER

- trans. case, bottom (Replaces A76166)

1шт.

19

A75167

GASKET,0.79mm Thk

- trans. case bottom cover

1шт.

20

A140222

PLUG

- drain, transmission (Replaces A14280)

1шт.

21

A51759

GASKET

- trans. drain plug

1шт.

22

221-846

PLUG,Hex Soc, 1"-11 1/2

- (1" hex socket head) (Used without P.T.O.)

1шт.

25

A60299

FILTER STRAINER

SCREEN - suction

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

27

A75314

GASKET

- suction manifold

1шт.

28

A75315

MANIFOLD

- suction

1шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

A21462

SENDER UNIT

SENDER - trans. temp. gauge

1шт.

32

129-661

NUT

- (#10 N.F. hex, brass)

1шт.
