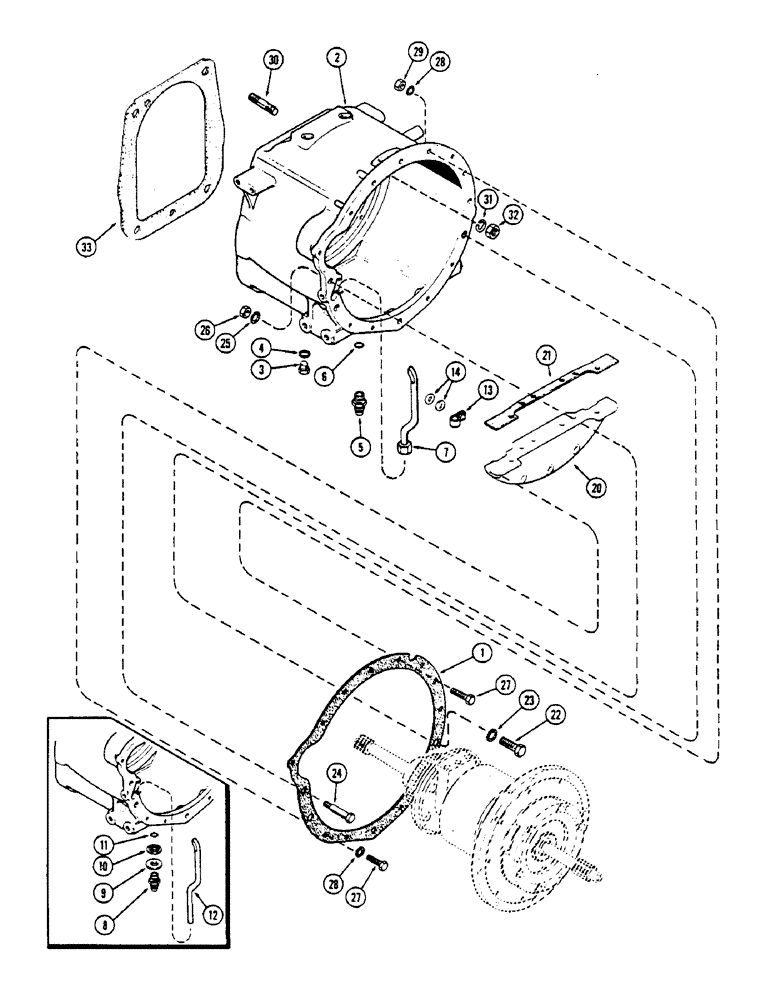

Запчасти Case IH 2670 (190) - CLUTCH HOUSING AND ATTACHING PARTS (06) - POWER TRAIN

1

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

2

A140730

HOUSING

- clutch (1st used trans. ser. no. 10025310) (Used with A138464 tube) (See Figure 192)

1шт.

2

A58483

HOUSING - clutch (Used before trans. ser. no. 10025310) (Used with A75165 tube) (See Figure 192)

1шт.

3

A140222

PLUG

- drain, clutch housing (Replaces A14280)

1шт.

4

A51759

GASKET

- clutch hsg. drain plug

1шт.

5

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- bulkhead, 3/4"-16 x 1"

1шт.

7

A140211

TUBE

- (C-1) lube oil (1st used trans. ser. no. 10027854)

1шт.

8

A75100

FITTING

- (C-1) clutch lube oil

1шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat steel (49/64 x 1-15/64 x 1/32")

1шт.

10

A75995

SEAL

- thread (1-3/8" O.D. x 7/64" thick)

1шт.

11

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- (C-1) clutch lube oil fitting (1/2 x 5/8 x 1/16") (Included in A42888 kit) (See Figure 216)

1шт.

12

A76487

TUBE

- (C-1) lube oil (Order 1-A140211 tube, 1-218-674 fitting and 1-218-5006 O-ring) (Used before trans. ser. no. 10027854)

1шт.

13

49838

CLAMP

- (C-1) lube oil tube

1шт.

14

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- clamp (27/64 x 3/4 x 1/32")

2шт.

20

A144906

PLATE

- flywheel housing seal (Replaces A75305)

1шт.

21

A76249

GASKET

- flywheel housing seal plate (Order A152424) (See Figure 56)

1шт.

22

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

23

A34651

LOCK WASHER

- lock (51/64" I.D. ext. type teeth)

2шт.

24

A149764

STEP BOLT

BOLT - dowel (1/2 x 3-9/64" N.C. hex hd.) (Replaces A61040)

1шт.

24

A149765

STEP BOLT

BOLT - dowel (1/2 x 2-21/32" N.C. hex hd.) (Replaces A61041)

2шт.

25

A34650

LOCK WASHER

- lock (1/2" external type)

3шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

27

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

27

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

27

113-2408

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- 1/2 x 1-7/8" N.C. hex., grade 5

1шт.

27

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex, grade 5

2шт.

27

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

28

A34650

LOCK WASHER

- lock (1/2" external type)

11шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

30

A151866

STUD

- trans. case to clutch housing (7/8" N.F. x 4")

4шт.

31

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER - 7/8" internal Shakeproof

4шт.

32

25-1114

NUT,7/8"-14, G5

- (7/8 " N.F. hex)

4шт.

33

A58138

GASKET

- clutch hsg. to trans. hsg.

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/8"

1шт.
