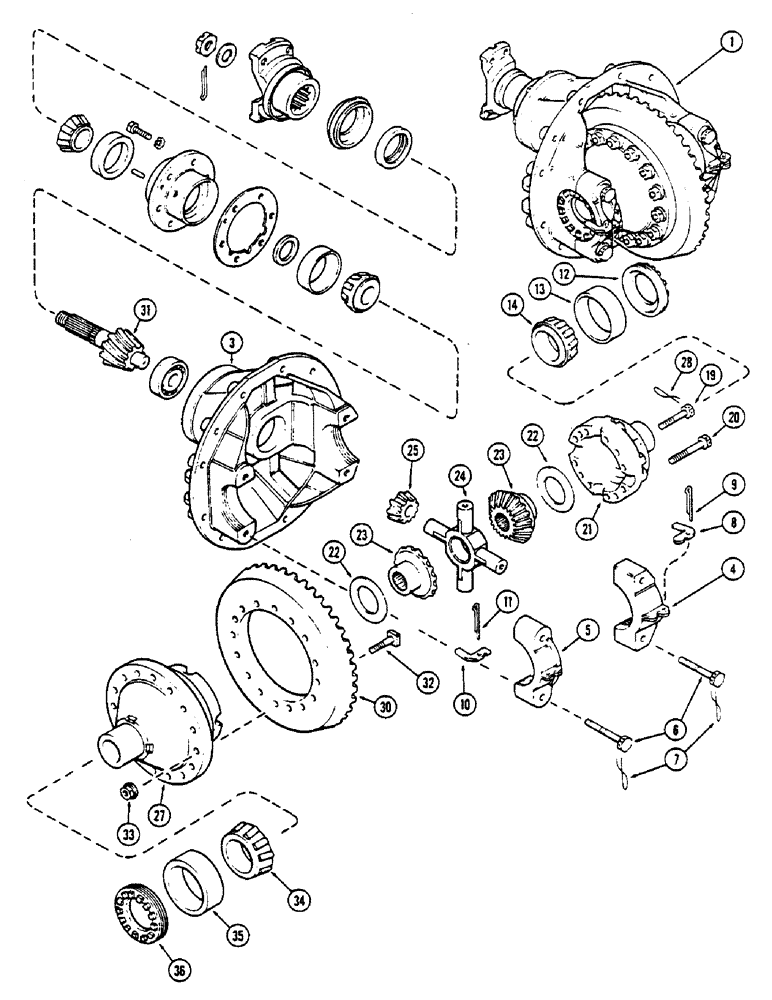

Запчасти Case IH 2670 (186) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBLY (05) - STEERING

1

A153461

CARRIER

ASSY. - differential, front axle (Replaces A140047), Includes: Ref. 3 - 36

1шт.

A44224

CARRIER

U-CARRIER ASSY. - diff. with cap and bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

6

A44227

BOLT

- diff. brg. carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock, #16 gauge x 12"

4шт.

8

A44216

LOCK

- adjusting, diff. carrier bearing

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, diff, carrier bearing

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, diff. carrier bearing

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - diff. bearing

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, diff. case

1шт.

A153802

DIFFERENTIAL

ASSY. - with bias gears and cases (Replaces A140071), Includes: Ref. 19 - 36

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- short, diff. case

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- long, diff. case

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - differential (Plain half) (Order A140071)

1шт.

22

A45248

WASHER

- thrust, side gear, 0.057-0.059" (1.45-1.50 MM)

1шт.

22

A44204

WASHER

- thrust, side gear, 0.060-0.062" (1.52-1.57 MM)

1шт.

22

A44355

WASHER

- thrust, side gear, 0.063-0.065" (1.60-1.65 MM)

1шт.

22

A44356

WASHER

- thrust, side gear, 0.066-0.068" (1.68-1.73 MM)

1шт.

22

A44357

WASHER

- thrust, side gear, 0.069-0.071" (1.75-1.80 MM)

1шт.

22

A44358

WASHER

- thrust, side gear, 0.072-0.074" (1.83-1.88 MM)

1шт.

22

A44359

WASHER

- thrust, side gear, 0.075-0.077" (1.91-1.96 MM)

1шт.

A153803

GEAR-SET

GEAR ASSEMBLY - pinion and side, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - diff. bias side (Replaces A44354) (Order A153803)

2шт.

24

NSS

NOT SOLD SEPARAT

SPIDER - differential

1шт.

25

NSS

NOT SOLD SEPARAT

PINION - diff. bias gear

4шт.

27

NSS

NOT SOLD SEPARAT

CASE - differential, flange half (Order A153802)

1шт.

28

391-709

ELECTRICAL WIRE

WIRE - lock, #18 gauge x 84"

1шт.

A45112

GEAR

SET - drive gear and pinion (Replaces A44220), Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - diff. bevel drive, 39 teeth (Order A45112)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - bevel drive, 8 teeth (Order A45112)

1шт.

32

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

33

A44264

NUT

- differential, Serial Range: gear-case

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, diff

1шт.

35

A31242

CUP

- bearing, diff

1шт.

36

A44215

NUT

- adjusting, diff. carrier bearing

1шт.
