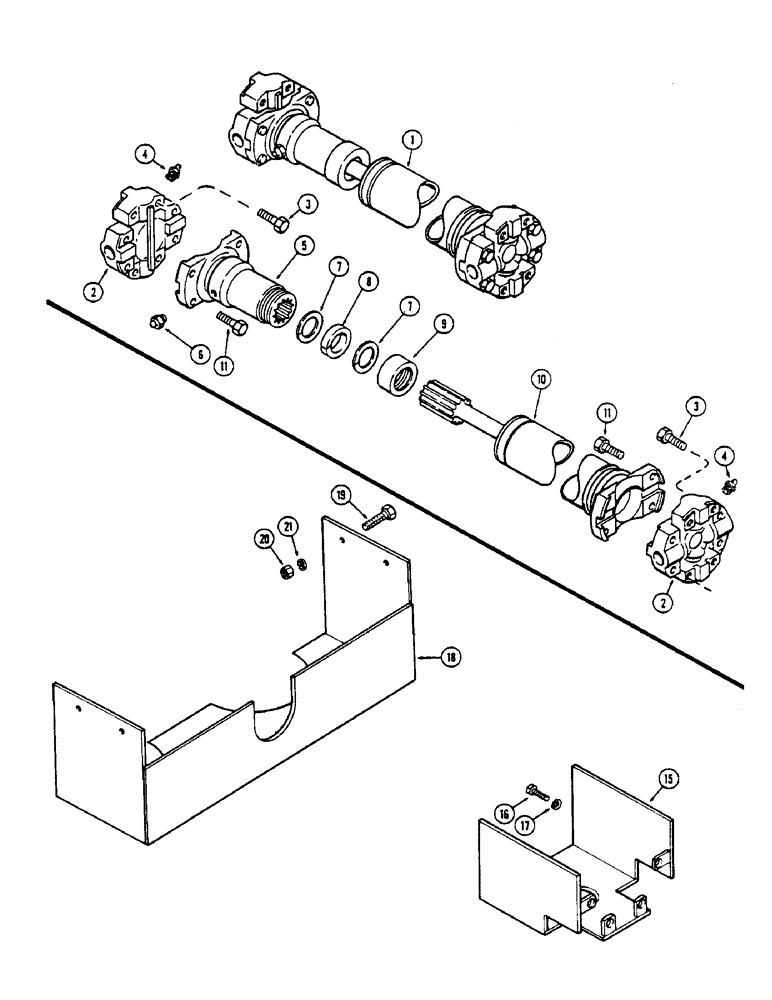

Запчасти Case IH 2670 (184) - FRONT AXLE DRIVE SHAFT ASSEMBLY (05) - STEERING

1

A76595

SHAFT

ASSY. - front axle drive, Includes: Ref. 2 - 11

1шт.

2

A45596

JOINT

U-JOINT ASSY. - (Includes bearings and bolts), Includes: Ref. 3 and 4

2шт.

3

A56245

BOLT,Hex, 1/2" x 2 3/8"

- 1/2 x 2-3/8" N.F. hex hd.

4шт.

3

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- 7/16 x 1-1/16" N.F. hex hd.

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - 1/8"-28 str.

1шт.

5

A44743

YOKE

SLIP YOKE ASSY. - drive shaft, Includes: Ref. 6 - 9

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

7

A12868

WASHER

- retainer, slip yoke felt seal

2шт.

8

A12873

SEAL

- felt, slip yoke dust shield

1шт.

9

A12867

CAP

- stuffing, slip yoke

1шт.

10

A44744

TUBE

- drive shaft stub yoke

1шт.

11

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- yoke to U-Joint, 7/16 x 1-1/16" N.F. hex

8шт.

15

A137599

GUARD

SHIELD - front axle U-joint, drive shaft

1шт.

16

A44212

BOLT

- shield to diff. pinion carrier, front axle drive shaft

4шт.

A44212 bolt and 193-33 lockwasher are part of differential assy. Figure 188.

1шт.

17

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. Shakeproof, front axle drive shaft shield 9/16"

4шт.

A44212 bolt and 193-33 lockwasher are part of differential assy. Figure 188.

1шт.

18

A137186

GUARD

SHIELD - front transmission U-joint, axle drive shaft shield

1шт.

19

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Front axle drive shaft shield Hex, 3/8"-16 x 1 1/2", G5

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Front axle drive shaft shield 3/8"-16, G5

4шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Front axle drive shaft shield 3/8"

4шт.
