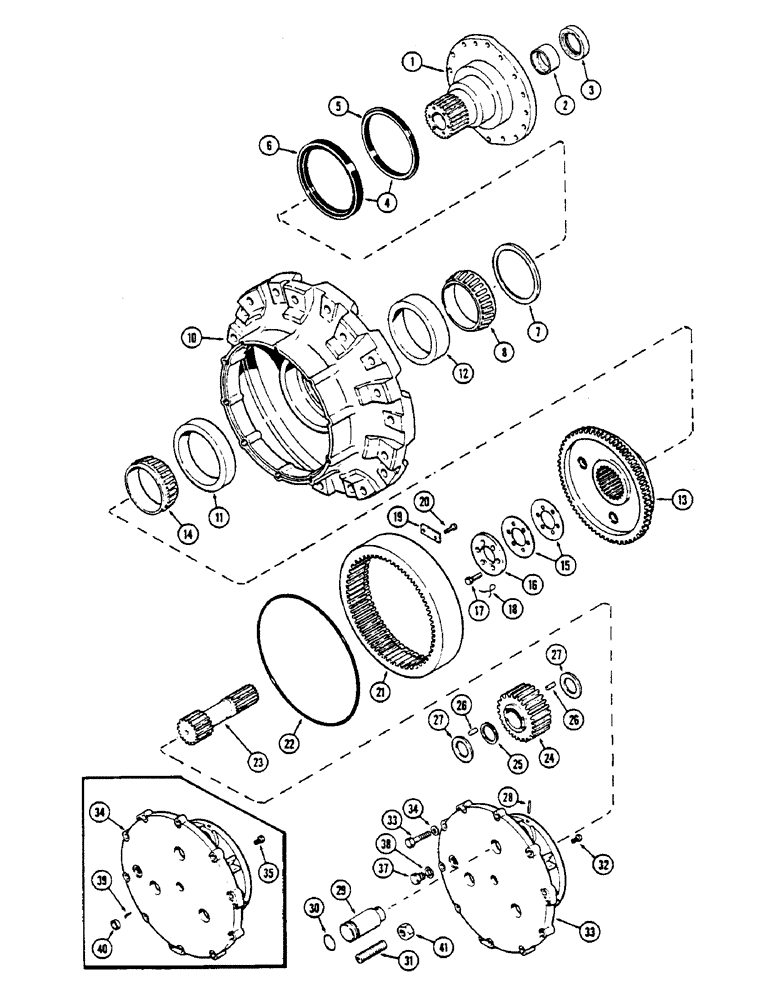

Запчасти Case IH 2670 (180) - WHEEL HUB AND SPINDLE KIT (05) - STEERING

A77297

KIT - wheel end, front and rear, Includes: Ref. 1 - 41

1шт.

A152503

SPINDLE

ASSY. - wheel (Replaces A150703), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

2

A75234

BUSHING

- universal joint yoke

1шт.

3

A153036

OIL SEAL

- oil, axle (Replaces A75233)

1шт.

4

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSY. - oil, wheel spindle

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

7

A75256

RING

- back-up, bearing, 5" I.D. x 1-1/2" (127 x 38.1 MM)

1шт.

8

L31699

TAPERED BEARING

CONE - bearing, wheel hub

1шт.

10

A151255

HUB

ASSY. - wheel (Replaces A77101 and A139982), Includes: Ref. 11 and 12

1шт.

11

A75262

CUP

- outer bearing, 7-3/4" O.D. x 1-1/2" wide (196.85 x 38.1 MM)

1шт.

12

L31698

BEARING CUP

CUP - inner bearing, 7-3/16" O.D. x 1-5/16" width (182.56 x 33.33 MM)

1шт.

13

A76461

HOLDER

HUB ASSY. - planetary ring gear, Includes: Ref. 14

1шт.

14

A75263

CONE

- bearing, 5" I.D. x 1-13/16" wide (127 x 30.16 MM)

1шт.

15

A75264

SHIM,.003" Thk

Hub brg. (.0762 mm) .003" Thk

1шт.

15

A75265

SHIM,.007" Thk

Hub brg. (0.1778 mm) .007" Thk

1шт.

15

A75266

SHIM,.020" Thk

Hub brg. (.5080 mm) .020" Thk

1шт.

16

A75267

CAP

- retainer, hub bearing

1шт.

17

A75268

BOLT

- drilled, 3/8 x 1-1/4" N.C.hex

6шт.

18

391-629

ELECTRICAL WIRE

WIRE - safety, #16 x 50"

1шт.

19

A153458

RETAINER

- ring gear, planetary (Replaces A77291)

6шт.

20

46945

SCREW

BOLT - drilled, 3/8 x 1" N.C. hex

12шт.

21

A76019

GEAR

- ring, planetary

1шт.

22

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to hub, 15-1/2 x 15-7/8 x 1/4" wide (393.7 x 403.23 x 6.35 MM)

1шт.

B17428

LOCTITE

ELIMINATOR - gasket (Used in production - order A63230)

1шт.

23

A76594

SHAFT

- sun gear

1шт.

24

A76590

GEAR

- planet

3шт.

25

A76592

BEARING

SPACER - roller bearing, 2 x 2-39/64 x 1/32" (50.8 x 66.28 x 0.79 MM)

3шт.

26

A43664

KIT

BEARING KIT - needle roller (Set of 38)

3шт.

27

A76593

WASHER

- planet pin, 2 x 3-1/4 x 1/32" (50.8 x 82.55 x 0.79 MM)

6шт.

28

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

3шт.

29

A76591

PIN

- planet gear

3шт.

30

T13235

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

- pin, 1-5/8 x 2 x 3/16" (41.28 x 50.8 x 4.76 MM)

3шт.

31

A153621

STUD

- sun gear shaft adjusting (1st used axle ser. no. 10116209)

2шт.

32

A75277

ADJUSTMENT SCREW

- adjusting, shaft, 1/2"-13 x 3/4"

1шт.

33

A153254

CARRIER

- planetary (1st used axle serial no. 10116209)

2шт.

34

A76589

CARRIER

- planetary (Used before axle ser. no. 10116209) (Order A153621, A153254 and 25-1512)

1шт.

35

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" N.C. hex

10шт.

36

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

10шт.

37

A140222

PLUG

- drain and fill

1шт.

38

A51759

GASKET

- plug

1шт.

39

A75278

PIN

- adjusting bolt lock (Replaces 138-2012 and 138-2035)

1шт.

40

41-1016

PLUG,Cup, 1"

- cup, 1/2" dia. (Used before axle ser. no. 10116209)

1шт.

41

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NF hex

1шт.
