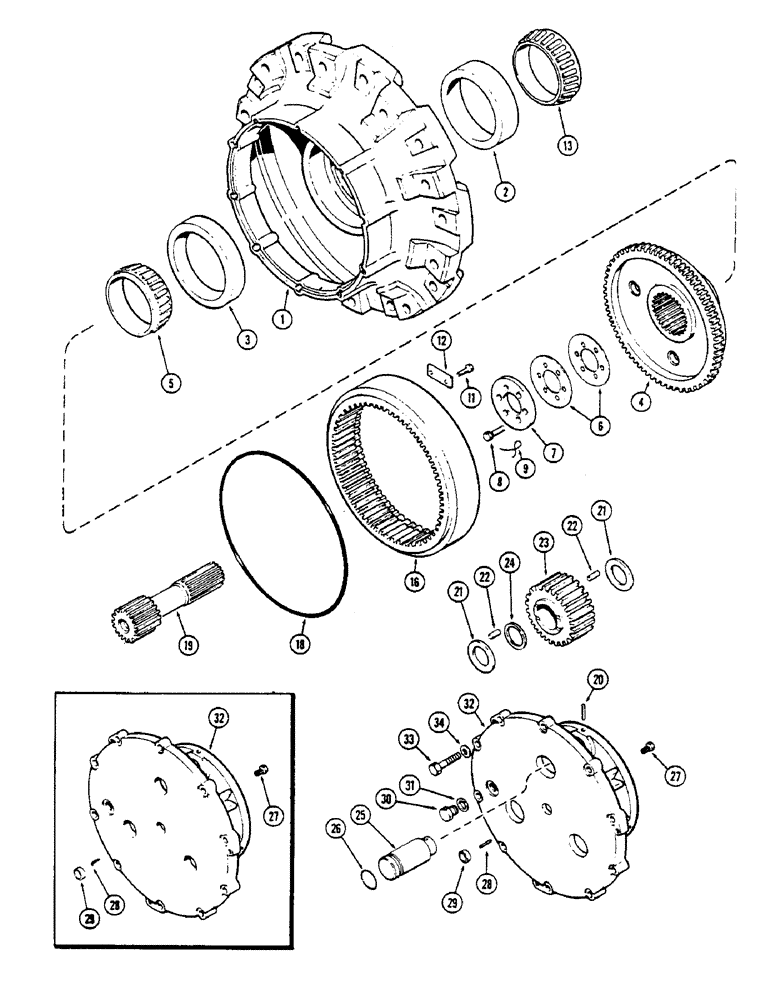

Запчасти Case IH 2670 (178) - FRONT AXLE PLANETARY (05) - STEERING

1

A151255

HUB

ASSY. - wheel drive (Replaces A77101 and A139982), Includes: Ref. 2 and 3

2шт.

2

A75262

CUP

- bearing, 7-3/4" O.D. x 1-1/2" width (196.85 x 38.1 MM)

1шт.

3

L31698

BEARING CUP

CUP - bearing, 7-3/16" O.D. x 1-5/16" width (182.56 x 33.33 MM)

1шт.

4

A76461

HOLDER

ASSY. - planetary ring gear, Includes: Ref. 5

2шт.

5

A75263

CONE

- bearing, 5" I.D. x 1-13/16" width (127 x 20.64 MM)

1шт.

6

A75264

SHIM,.003" Thk

Wheel hub brg. (.0762 mm) .003" Thk

1шт.

6

A75265

SHIM,.007" Thk

Wheel hub brg. (0.1778 mm) .007" Thk

1шт.

6

A75266

SHIM,.020" Thk

Wheel hub brg. (.5080 mm) .020" Thk

1шт.

7

A75267

CAP

- retainer, wheel hub bearing and holder

2шт.

8

A75268

BOLT

- (3/8 x 1-1/4" N.C. hex) (Drilled)

12шт.

9

391-629

ELECTRICAL WIRE

WIRE - safety (#16 x 24")

2шт.

11

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- (3/8 x 1" N.C. hex)

24шт.

12

A153458

RETAINER

- planetary ring gear (Replaces A77291)

12шт.

13

L31699

TAPERED BEARING

CONE - bearing, wheel spindle, 5" I.D. x 1-1/2" width (127 x 38.1 MM)

1шт.

16

A76019

GEAR

- ring, planetary

2шт.

B17428

LOCTITE

ELIMINATOR - gasket (Used in production - order A63230)

1шт.

18

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to wheel hub

2шт.

19

A76594

SHAFT

- planet sun gear

2шт.

20

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

6шт.

21

A76593

WASHER

- planet pin, 2 x 3-1/4 x 1/32" (50.8 x 82.55 x 0.79 MM)

12шт.

22

A43664

KIT

- bearing, needle roller (Set of 38)

1шт.

23

A76590

GEAR

- planet

6шт.

24

A76592

BEARING

SPACER - roller bearing, 2 x 2-39/64 x 1/32" (50.8 x 66.28 x 0.79 MM)

6шт.

25

A76591

PIN

- planet gear

6шт.

26

T13235

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

- planet gear pin, 1-5/8 x 2 x 3/16" (41.28 x 50.8 x 4.76 MM)

6шт.

27

A75277

ADJUSTMENT SCREW

- adjusting, planet sun gear shaft

2шт.

28

A75278

PIN

- adjusting bolt lock (Replaces 138-2012 and 138-2035)

2шт.

29

41-1016

PLUG,Cup, 1"

- cup, planetary carrier

2шт.

30

A140222

PLUG

- planetary fill and drain (Replaces A14280)

2шт.

31

A51759

GASKET

- planetary fill and drain plug

2шт.

32

A76589

CARRIER

- planetary

2шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex)

20шт.

34

L30674

WASHER

- 17/32 x 1-1/16 x 7/64" (13.49 x 26.99 x 2.78 MM)

20шт.
