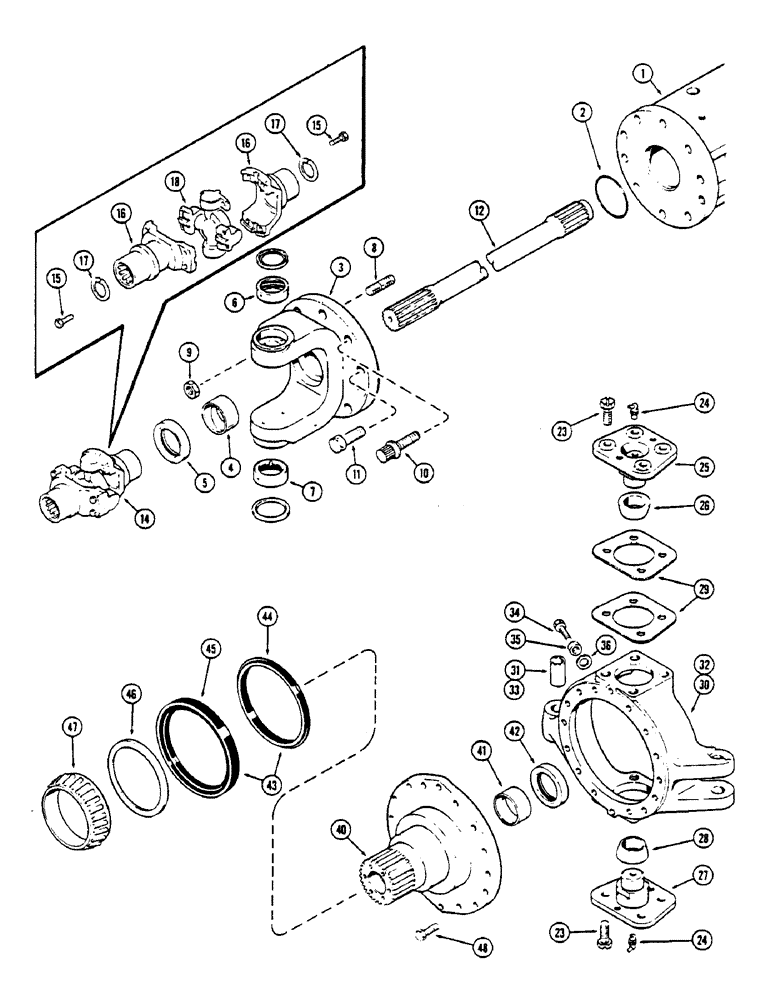

Запчасти Case IH 2670 (176) - FRONT AXLE, TRUNNION AND WHEEL SPINDLE, USED BEFORE AXLE SERIAL NUMBER 10110612 (05) - STEERING

1

REF

INSTRUCTION

HOUSING - axle, differential (See Figure 172)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- seal, trunnion to differential housing (3-5/8 x 3-7/8 x 1/8")

2шт.

3

A76567

TRUNNION

ASSY - axle, Includes: Ref. 4 - 7

2шт.

4

A75234

BUSHING

- (2-1/2 x 2-11/16 x 1-1/2")

1шт.

5

A153036

OIL SEAL

- oil (2-1/2 x 3-1/2 x 1/2") (Replaces A75233)

1шт.

6

A76569

BUSHING

RING - king pin outer bearing (2-7/16" OD x 21/32" wide)

1шт.

7

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

RING - king pin outer bearing (2-13/16" OD x 1-1/16" wide)

1шт.

8

A77281

STUD

- mounting, axle trunnion (3/4" NC x 2-7/8")

4шт.

9

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" NC hex)

4шт.

10

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - (3/4 x 2" NC Ferry cap)

12шт.

11

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

12

A75243

SHAFT

- axle drive, short (28-5/8") (727.07 MM)

1шт.

12

A75242

SHAFT

- axle drive, long (32-1/2") (825.5 MM)

1шт.

14

A75275

JOINT

ASSY. - universal, Includes: Ref. 15 - 18

2шт.

15

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- U-joint to slip yoke (7/16-20 x 1-1/16" hex)

8шт.

16

A44175

YOKE

SLIP YOKE - axle drive joint

2шт.

17

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , slip yoke 1.812", Int, #181

2шт.

18

D50866

SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able

U-JOINT - axle drive cross w/ bearings (Replaces A44176)

1шт.

23

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- (5/8 x 1-3/4" NC hex head capscrew)

16шт.

24

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

4шт.

25

A136138

PIN

ASSY. - king, upper, Includes: Ref. 26

2шт.

26

A76573

RING

- king pin inner bearing (1-1/2" ID x 2-5/32 OD)

1шт.

27

A136139

PIN

ASSY. - king, lower, Includes: Ref. 28

2шт.

28

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

RING - king pin inner bearing (1-3/4" ID x 2-13/16 OD)

1шт.

29

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin .005" Thk

1шт.

29

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin (0.381 mm) .015" Thk

1шт.

30

A76580

HOUSING

ASSY. - spindle (RH), Includes: Ref. 31

1шт.

31

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing

1шт.

32

A76581

HOUSING

ASSY - spindle (LH), Includes: Ref. 33

1шт.

33

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing

1шт.

34

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- stop (5/8 x 1-3/4" NC hex grade 8)

2шт.

35

A140006

BUSHING

SPACER - stop bolt (21/32 x 1/x 11/16" wide)

2шт.

36

A150261

BUSHING

SPACER - stop bolt, 25/32 x 1-1/2 x 1/8" (Replaces A140130) (Used with 20.8 x 34 dual wheels)

2шт.

40

A152503

SPINDLE

ASSY. - wheel (See Figure 180) (Replaces A75254), Includes: Ref. 41 - 47

2шт.

41

A75234

BUSHING

- universal joint yoke

1шт.

42

A153036

OIL SEAL

- oil, axle (2-1/2" ID x 3-1/2" OD x 1/2" wide) (Replaces A75254)

1шт.

43

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSY. - oil, wheel spindle, Includes: Ref. 44 and 45

1шт.

44

NSS

NOT SOLD SEPARAT

SEAL - oil, inner half

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - oil, outer half

1шт.

46

A75256

RING

- back-up, wheel spindle bearing

1шт.

47

L31699

TAPERED BEARING

CONE - bearing, wheel spindle bearing

1шт.

48

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

28шт.

48

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.
