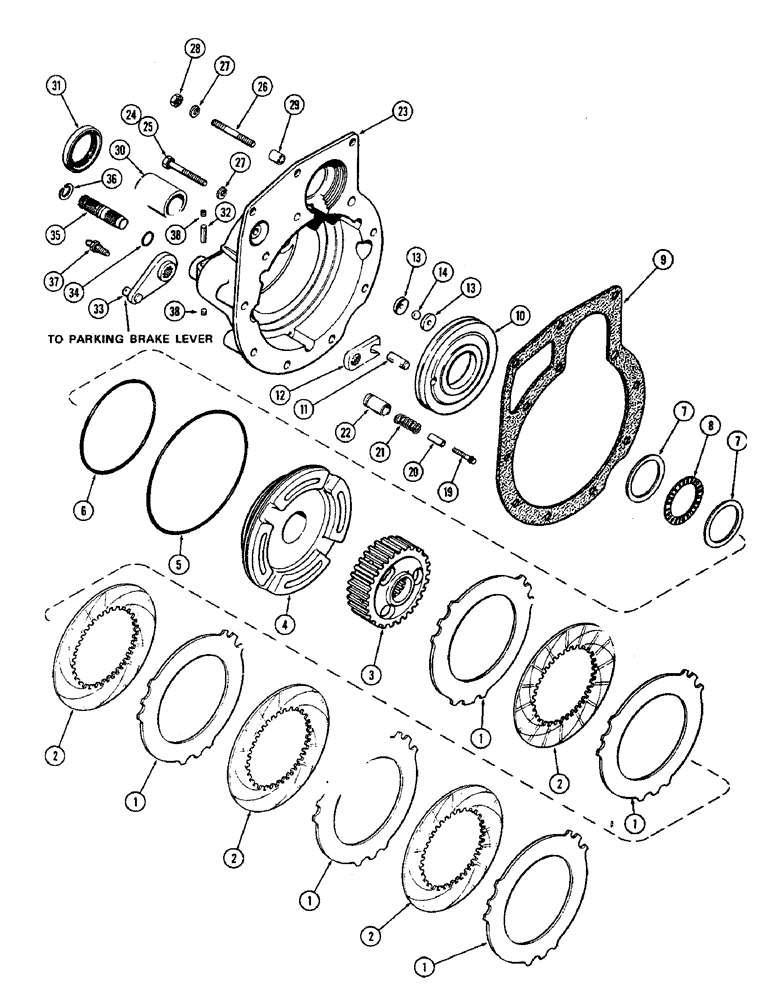

Запчасти Case IH 2470 (138) - TRANSMISSION BRAKE (06) - POWER TRAIN

1

A77070

PLATE

- steel, brake (Replaces A75152)

5шт.

2

A77071

PLATE

- friction, brake (Replaces A75151)

4шт.

3

A75146

HUB

- brake

1шт.

4

A75155

PLUNGER

PISTON - brake

1шт.

5

A75156

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

"O" RING - seal, outer, brake piston (9-3/4 x 10 x 1/8)

1шт.

6

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

"O" RING - seal, inner, brake piston (7-1/4 x 7-1/2 x 1/8")

1шт.

7

A75157

THRUST WASHER

RACE - needle bearing thrust, brake piston

2шт.

8

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

BEARING - needle, thrust, brake piston

1шт.

9

A75150

GASKET

- brake housing

1шт.

10

A75159

PLATE

- brake reactor

1шт.

11

A75160

PIN

- actuator, parking brake

1шт.

12

A75162

LEVER

- internal, parking brake

1шт.

13

A75161

SEAT

- parking brake cam ball

6шт.

14

211-15

BALL,5/8" Dia

- (.), parking brake cam seat 5/8" Dia

3шт.

19

166-1004

12 PT SCREW,Lock, Flg, 1/4" - 20 x 1 3/4", Gr 8

SCREW - (1/4 x 1-3/4" Ferry cap, with Jay-Loc)

3шт.

20

138-187

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, 7/16" x 1 1/4", Slotted

3шт.

21

A75154

SPRING

- brake piston return (1-15/16" free length)

3шт.

22

A75153

PIN

- brake torque reaction

3шт.

23

A75149

HOUSING - brake

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

3шт.

25

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

7шт.

25

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

26

A76423

STUD

- brake hsg. to trans. case (1/2 x 4-3/8") (Replaces A31235)

1шт.

27

92-8

LOCK WASHER,1/2"

12шт.

28

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

1шт.

29

G49608

RING

- dowel, brake housing

1шт.

30

A75147

SPACER

- brake hub

1шт.

31

A75981

OIL SEAL,63.78mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft, rear (2-5/8 x 3-1/2 x 1/2")

1шт.

32

A58950

PIN

- parking brake actuating lever (3/8 x 1-3/8")

1шт.

33

A75316

LEVER - hand brake

1шт.

34

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

"O" RING - seal, parking brake actuating shaft (13/16 x 1 x 3/32")

1шт.

35

A75163

SHAFT

- parking brake actuating lever

1шт.

36

B18208

SNAP RING,#100, Ext

1шт.

37

A41491

BLEEDER,1/4" - 28 x 23.37mm

FITTING - brake bleed

1шт.

38

221-852

PLUG

- pipe (1/8" hex. socket)

2шт.
