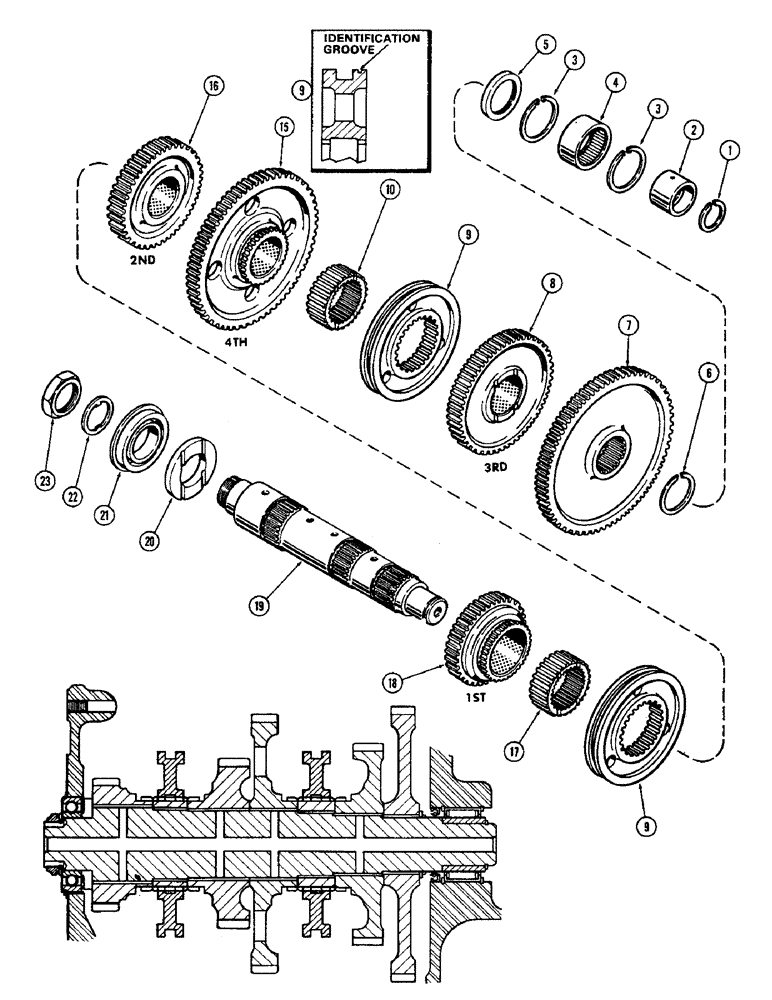

Запчасти Case IH 2470 (134) - CLUTCH, DRIVEN SHAFT AND GEARS (06) - POWER TRAIN

1

A7611

SNAP RING,#175, Ext

Ring, Snap, , inner needle bearing race #175, Ext

1шт.

2

A75126

RING RACE

RACE - sliding collar shaft inner needle bearing

1шт.

3

A76298

SNAP RING,#300, 3.222", Int

RING - snap, front needle bearing (Replaced R20786)

2шт.

4

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - needle, sliding collar shaft, front

1шт.

5

A75127

OIL SEAL

- oil, front needle bearing

1шт.

6

A58234

SNAP RING,#237, 2.295", Ext

RING - snap, drop driven gear retaining

1шт.

7

A75128

GEAR - drop, driven

1шт.

8

A77091

GEAR WHEEL

GEAR ASSY. - 3rd gear with bushing (Replaces A75943 & A77083)

1шт.

9

A138081

COLLAR

- sliding, shifting (w/identification groove) (Replaces A65305)

2шт.

10

A64422

SHAFT

HUB - splined pinion (3rd & 4th)

1шт.

15

A77092

GEAR

ASSY. - driver (4th), with bushing (Replaces A75946 & A77085)

1шт.

16

A77093

GEAR

ASSY. - driver (2nd), with bushing (Replaces A75949 & A77087)

1шт.

17

A64416

HUB

- splined pinion (1st & 2nd)

1шт.

18

A77094

GEAR

ASSY. - driver (1st), with bushing (Replaces A75952 & A77089)

1шт.

19

A75955

SHAFT - driven

1шт.

20

A75133

SPACER

- driven shaft, rear

1шт.

21

T29721

BALL BEARING,2.165" ID x 3.937" OD x 0.827"

BEARING - driven shaft, rear

1шт.

22

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - driven shaft rear bearing

1шт.

23

A75134

NUT

LOCKNUT - driven shaft rear bearing

1шт.
