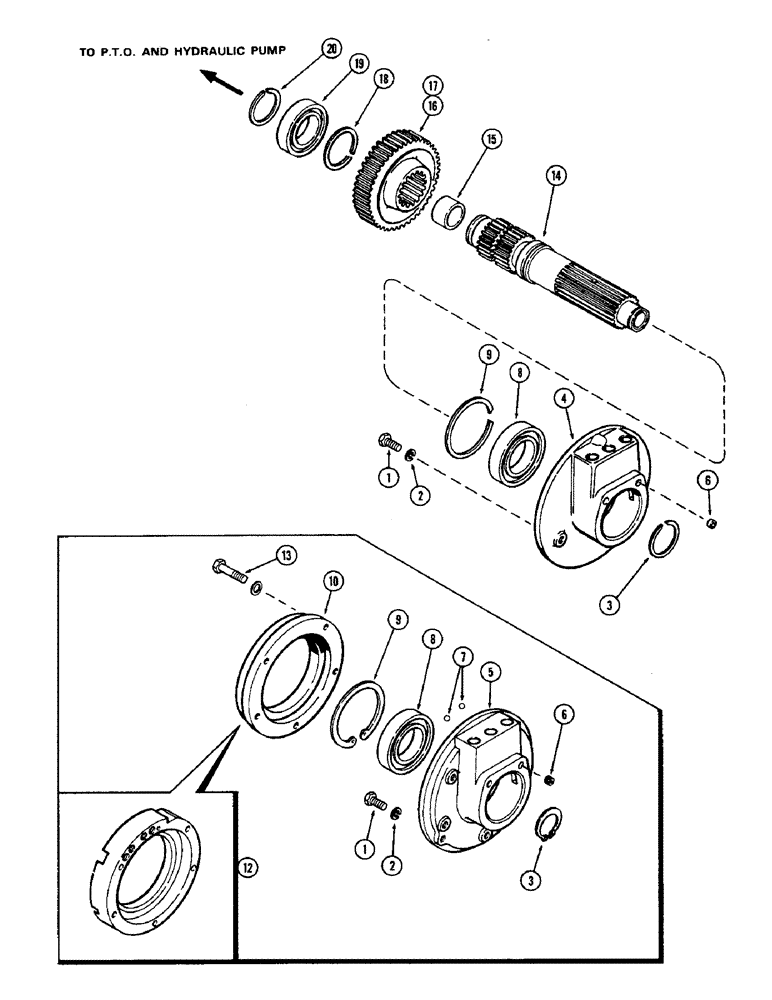

Запчасти Case IH 2470 (132) - CLUTCH, OIL DISTRIBUTOR CARRIER AND PLANETARY OUTPUT DRIVE SHAFT (06) - POWER TRAIN

1

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

3шт.

2

92-6

LOCK WASHER,3/8"

3шт.

3

A20193

RING

- snap, external, oil distributor carrier bearing

1шт.

4

A76468

CARRIER

- oil distributor (See note)

1шт.

5

A76330

CARRIER

- oil distributor (1st used trans. ser. no. 2416365)

1шт.

5

A75118

CARRIER

- oil distributor (Used prior to trans. ser. no. 2416365)

1шт.

6

221-841

PLUG

- pipe (1/4" hex. socket head)

2шт.

7

211-7

BALL,1/4" Dia

- shuttle (Used w/A75118 carrier) 1/4" Dia

2шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - oil distributor carrier

1шт.

9

A31234

RING

- snap, internal, oil distributor carrier bearing

1шт.

10

A76328

PLATE

- reaction, trans. brake piston (1st used trans. ser. no. 2416365)

1шт.

12

A75120

PLATE

- reaction, trans. brake piston (Used prior to trans. ser. no. 2416365)

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

5шт.

14

A76229

SHAFT

ASSY. - planetary output drive (Replaced A75310), Includes: Ref. 15

1шт.

15

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- planetary output drive shaft (Replaced A75114)

1шт.

16

A76329

GEAR

- drop, driver (1st used trans. ser. no. 2416365)

1шт.

17

A75124

GEAR

- drop, driver (Used prior to trans. ser. no. 2416365)

1шт.

18

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, gear retaining

1шт.

19

A31236

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - planetary output shaft, rear

1шт.

20

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, planetary output shaft rear bearing

1шт.
