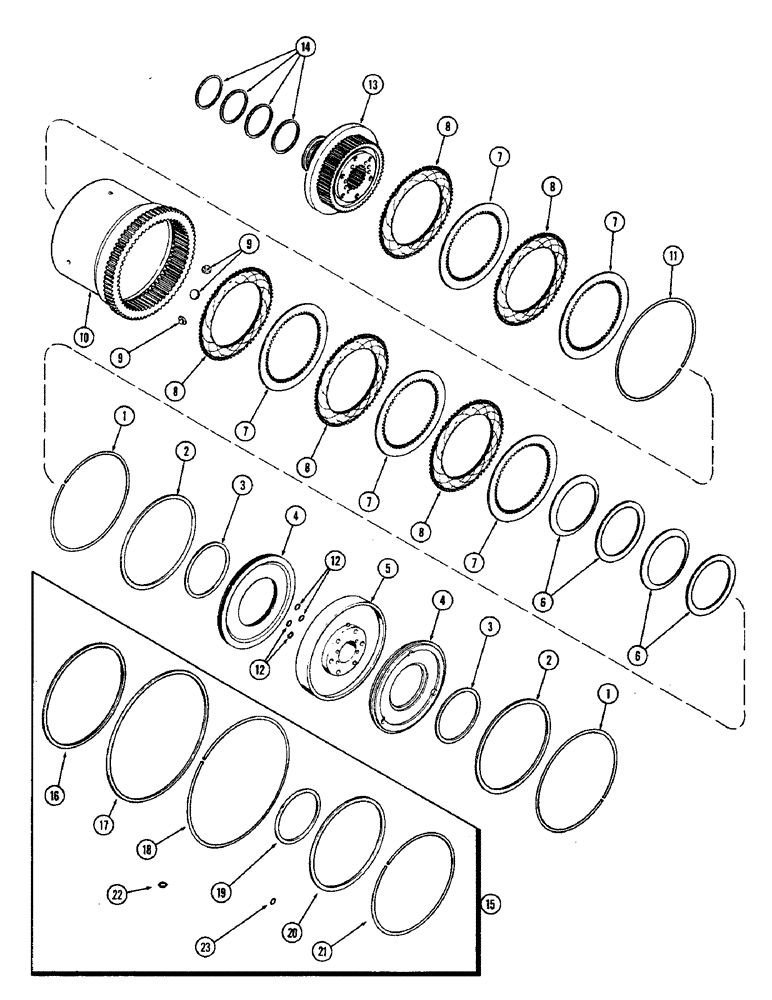

Запчасти Case IH 2470 (130) - CLUTCH, C-2 AND C-3 CLUTCHES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A62642
ELECTRICAL WIRE
WIRE - (C-2) & (C-3) clutch piston sealing ring (Included in A42886 kit - see ref. 15)
2шт.
2
A58381
SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk
RING - sealing, external, (C-2) & (C-3) clutch piston (Included in A42886 kit - see ref. 15)
2шт.
3
A58382
SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk
RING - sealing, internal, (C-2) & (C-3) clutch piston (Included in A42886 kit - see ref. 15)
2шт.
4
A66359
PISTON
- (C-2) & (C-3) clutch (Replaces A63094)
2шт.
5
A64487
CARRIER
- (C-2) & (C-3) piston
1шт.
6
A58094
SPRING
- Belleville, (C-3) clutch piston return
4шт.
7
A58089
PLATE
- steel (C-3) clutch
5шт.
8
A61981
PLATE
- sintered (C-3) clutch
5шт.
9
A58413
BUTTON
BEARING - button, planetary ring gear
3шт.
10
A75116
GEAR
- planetary ring
1шт.
11
A58079
RING,226.49mm ID x 233.35mm OD x 3.43mm Thk
- snap, planetary ring gear retaining
1шт.
12
A58092
SEAL,Square, 0.066" Thk x 0.301" ID, -11
"O" RING - oil sealing (Included in A42886 kit - see ref. 15)
4шт.
13
A75117
HUB
- (C-3) clutch
1шт.
14
A58384
RING
- (C-3) clutch oil distributor piston
4шт.
15
A42886
SEAL KIT
SEAL KIT - power shift clutch, Includes: Ref. 16 - 23
1шт.
16
A58397
SEAL,227.13mm ID x 3.23mm Thk
RING - sealing (C-4) piston
1шт.
17
A58396
SEAL,318.39mm ID x 3.23mm Thk
RING - sealing (C-4) piston
1шт.
18
A62643
ELECTRICAL WIRE
WIRE - (C-4) piston sealing ring
1шт.
19
A58382
SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk
RING - sealing, (C-1), (C-2) & (C-3) clutch piston
3шт.
20
A58381
SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk
RING - sealing (C-1), (C-2) & (C-3) clutch piston
3шт.
21
A62642
ELECTRICAL WIRE
WIRE - (C-1), (C-2) & (C-3) clutch piston sealing ring
3шт.
22
D31409
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
"O" RING - oil distributor tubes & (C-1) lube fitting
7шт.
23
A58092
SEAL,Square, 0.066" Thk x 0.301" ID, -11
"O" RING - (C-2) & (C-3) clutch oil seal
8шт.
Выбрано товаров: 23
