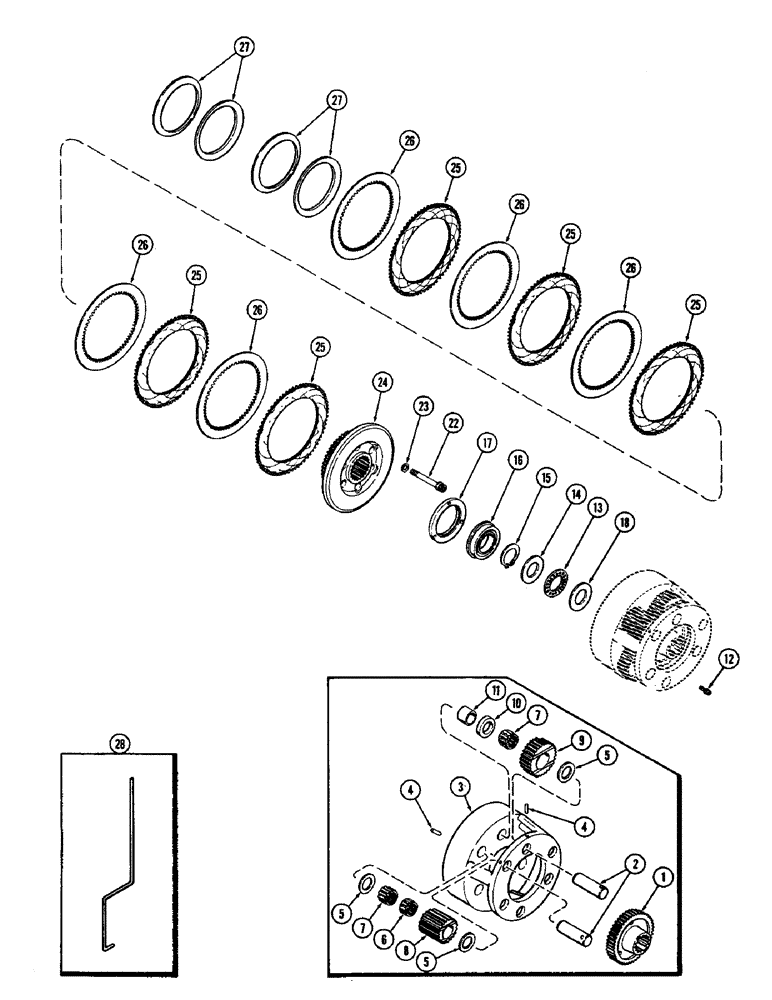

Запчасти Case IH 2470 (128) - CLUTCH, C-2 CLUTCH AND PLANETARY (06) - POWER TRAIN

1

A75109

GEAR

- drive, sun

1шт.

2

A63107

PIN

- short & long planet gear

6шт.

3

A75112

CARRIER

- planetary

1шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gears

9шт.

6

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, long planet gear

3шт.

7

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gears

6шт.

8

A63108

GEAR

- long planet

3шт.

9

A63105

GEAR

- short planet

3шт.

10

A58406

SPACER

RACE - thrust, short planet gear, rear

3шт.

11

A63106

SPACER

- short planet gear, rear

3шт.

12

165-156

HEX SOC SCREW,Prev Torque, #10 - 24 x 5/8"

BOLT - (#10-24 x 5/8" hex. socket hd., w/J-Loc)

3шт.

13

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust, sun drive gear

1шт.

14

A54021

WASHER

RACE - thrust, sun drive gear

1шт.

15

A7611

SNAP RING,#175, Ext

Ring, Snap, , planetary bearing #175, Ext

1шт.

16

A63109

BEARING, BALL

BEARING - ball, planetary carrier, w/snap ring

1шт.

17

A64444

COLLAR

RETAINER - planetary carrier

1шт.

18

H147785

BEARING WASHER

WASHER - thrust, drive sun gear

1шт.

22

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

SCREW - (3/8 x 3" N.C. Ferry cap)

6шт.

23

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened (7/16 x 49/64 x 1/32")

6шт.

24

A75115

HUB

- (C-2) clutch

1шт.

25

A61981

PLATE

- sintered (C-2) clutch

5шт.

26

A58089

PLATE

- steel (C-2) clutch

5шт.

27

A58094

SPRING

- Belleville (C-2) clutch piston return

4шт.

28

A44341

HOLDER

- (C-2) clutch plate

3шт.
