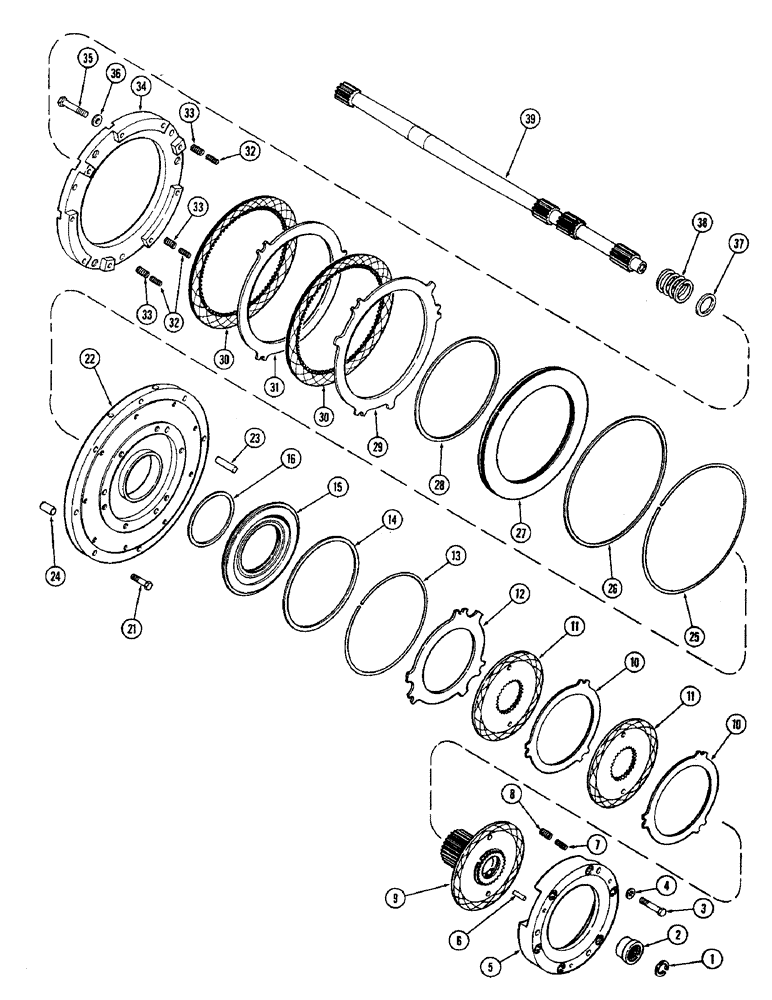

Запчасти Case IH 2470 (126) - CLUTCH, C-1 AND C-4 CLUTCHES (06) - POWER TRAIN

1

A39669

SNAP RING,#137, 1.277", Ext, Spiral

RING - snap, clutch support bushing

1шт.

2

A75970

BEARING

- clutch support

1шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- (3/8 x 2-1/4" N.C. hex.)

6шт.

4

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate bolt (7/16 x 49/64 x 1/32")

6шт.

5

A75101

LARGE PLATE

PLATE - (C-1) reaction

1шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring centering 3/16" x 1 1/4", Slotted

3шт.

7

A62607

SPRING

- (C-1) clutch return (23/64" dia.) (1-3/32" free length)

3шт.

8

A62606

SPRING

- (C-1) clutch return, (9/16" dia.) (1-3/32" free length)

3шт.

9

A75972

GEAR

ASSY. - sun, with (C-1) clutch plate

1шт.

10

A65525

PLATE

- steel, without tab (C-1) clutch (Replaced A62610)

2шт.

11

A77131

CLUTCH PLATE

PLATE - sintered (C-1) clutch (Replaces A75971)

2шт.

12

A65524

PLATE

- steel, with tab (C-1) clutch (Replaced A58392)

1шт.

13

A62642

ELECTRICAL WIRE

WIRE - (C-1) piston sealing ring, external (Included in A42886 kit - see figue 130)

1шт.

14

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, external, (C-1) piston (Included in A42886 kit - see figure 130)

1шт.

15

A66392

PISTON

- (C-1) (Replaces A58380)

1шт.

16

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, internal (C-1) piston (Included in A42886 kit - see figure 130)

1шт.

21

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- (3/8 x 1-1/2" N.C. hex.)

8шт.

22

A75283

CARRIER

ASSY. - (C-1) & (C-4) clutch piston, Includes: Ref. 23 and 24

1шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

- (C-1) clutch plate (1/2 x 2")

3шт.

24

A62609

PIN,12.45mm OD x 27.43mm L

- (C-4) clutch reaction plate (1/2 x 1-5/64")

3шт.

25

A62643

ELECTRICAL WIRE

WIRE - (C-4) piston sealing ring, external (Included in A42886 kit - see figure 130)

1шт.

26

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing, external (C-4) piston (Included in A42886 kit - see figure 130)

1шт.

27

A58395

PISTON

- (C-4)

1шт.

28

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing, internal (C-4) piston (Included in A42886 kit - see figure 130)

1шт.

29

A58056

PLATE

- steel, with tabs (C-4) clutch

1шт.

30

A62563

PLATE

- friction (C-4) clutch

2шт.

31

A75105

PLATE

- steel, without tabs (C-4) clutch

1шт.

32

A62607

SPRING

- (C-4) clutch return (23/64" dia.) (1-3/32" free length)

3шт.

33

A62606

SPRING

- (C-4) clutch return (9/16" dia.) (1-3/32" free length)

3шт.

34

A77120

PLATE

- (C-4) reaction (Replaces A75104)

1шт.

35

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate (7/16 x 49/64 x 1/32")

9шт.

37

A75110

WASHER

- wun gear locating spring (1-7/16 x 2 x 7/64")

1шт.

38

A63068

SPRING

- locating, sun gear (2-19/64" free length)

1шт.

39

A75108

SHAFT

- trans. input & pump drive

1шт.
