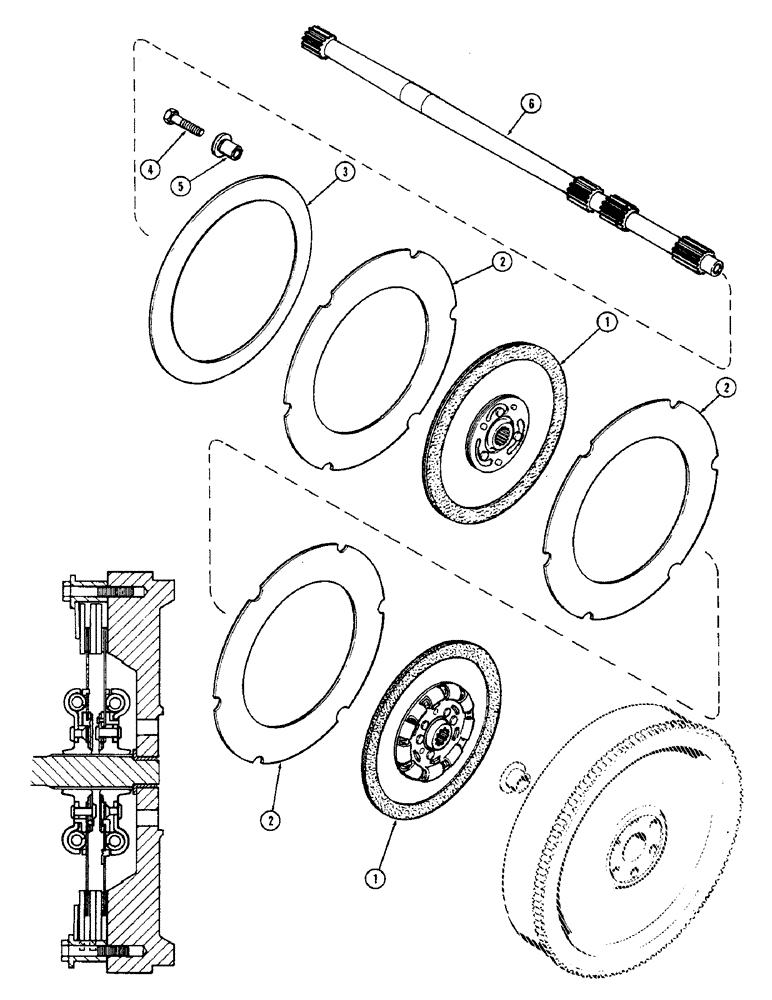

Запчасти Case IH 2470 (124) - CLUTCH, TORQUE LIMITER (06) - POWER TRAIN

1

A63930

CLUTCH DISC

LIMITER - 12" driven member

2шт.

2

A58036

PLATE

- pressure (See note)

1шт.

Three A58036 plates (Ref. 2) were used prior to trans. ser. no. 2538317 with retainer A63931. When using retainer A76467 only two plates are used.

1шт.

3

A61000

SPRING

- Belleville

1шт.

4

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- (1/2 x 2-1/4" N.C. hex.) (Used w/A76467 ret.)

6шт.

4

26-838

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 8

- (1/2 x 2-3/8" N.C. hex.) (Used w/A63931 ret.)

6шт.

5

A76467

WASHER

RETAINER - clutch spring (1-1/4" long) (1st used trans. ser. no. 2538317)

6шт.

5

A63931

RETAINER

- clutch spring (1-1/2" long) (Used prior to trans. ser. no. 2538317) (For repairs use 6-A76467 retainers & 6-26-836 bolts)

6шт.

6

A75108

SHAFT

- trans. input & pump drive

1шт.
