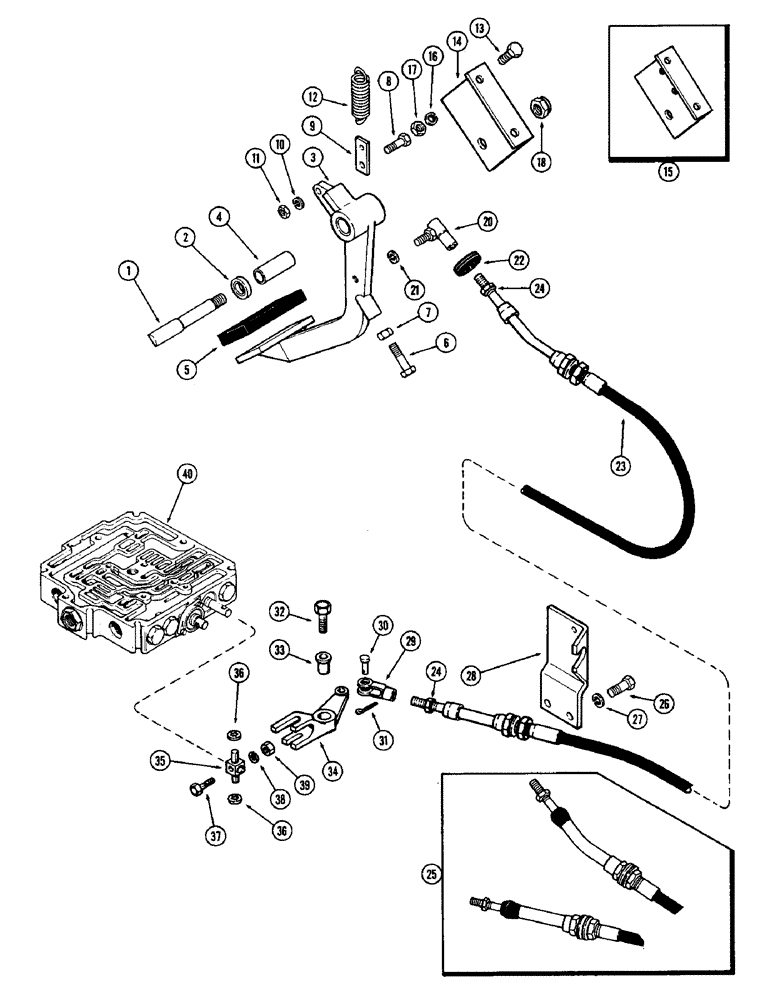

Запчасти Case IH 2470 (122) - FOOT CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

A75359

SHAFT

- clutch pedal

1шт.

2

A75360

SPACER

- clutch pedal shaft

1шт.

3

A75361

PEDAL

ASSY. - clutch, Includes: Ref. 4

1шт.

4

A75362

BUSHING

- clutch pedal

1шт.

5

F9197

PAD

- pedal

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

9

A76169

CLIP

- spring

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

12

A60302

SPRING

- pedal return

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

A76465

BRACKET

- clutch (1st used trac. ser. no. 8713090) (See figure 140 for parking brake kit)

1шт.

15

A75358

BRACKET

- clutch (Used prior to trac. ser. no. 8713090)

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

18

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

1шт.

20

D38296

JOINT

BALL JOINT - cable

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

A75989

GROMMET

- clutch cable

1шт.

23

A76276

CABLE

- clutch control (1st used tractor serial no. 8692696) 48"

1шт.

24

86585245

SPECIAL NUT,JAM, 5/8" - 18

- (3/8" N.F. hex. jam) (1st used tractor serial no. 8692696)

2шт.

25

A75988

CABLE

- clutch (Used prior to tractor serial no. 8692696) (Order A76276)

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

A75978

BRACKET

ANCHOR - clutch cable

1шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clutch cable

1шт.

30

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

33

A59772

BUSHING

- clutch spool lever

1шт.

34

A75323

LEVER

- clutch spool

1шт.

35

A59150

LINK

- operating, clutch spool

1шт.

36

A59773

RING

- retaining

2шт.

37

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

A66707

VALVE

ASSY. - trans. control (Repl. A64327) (See fg. 184)

1шт.
