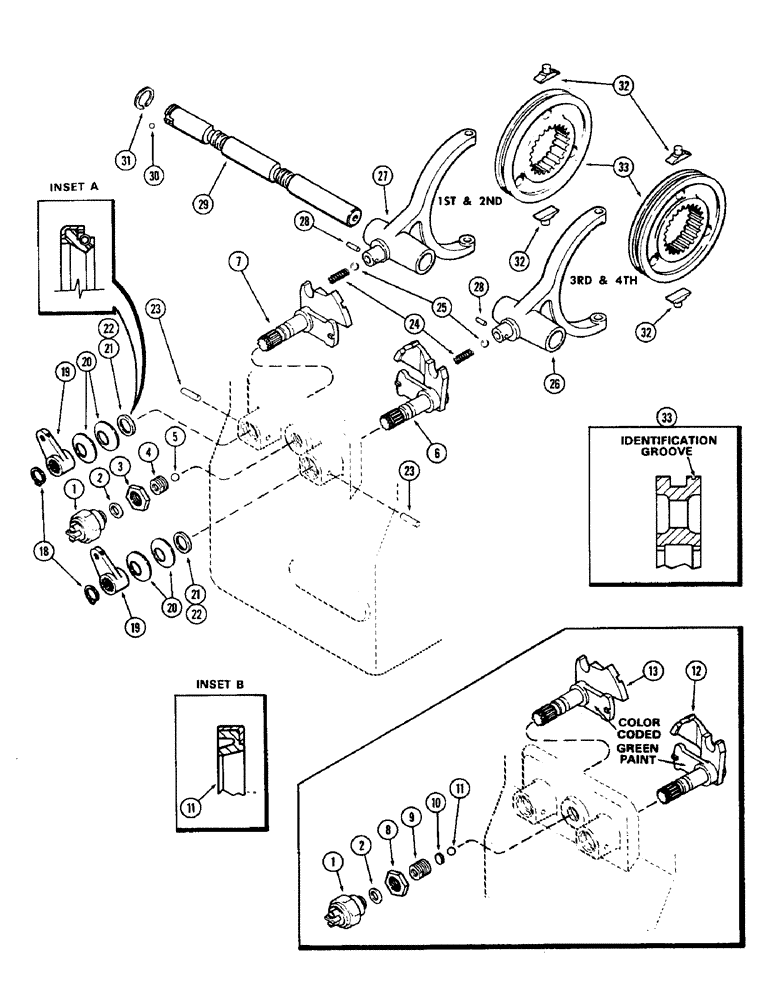

Запчасти Case IH 2470 (120) - RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A20990

SWITCH

- safety, neutral start

1шт.

2

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

3

A76326

NUT

- lock, neutral start switch (3/32" thick), 1st used transmission s/n 2394586

1шт.

4

A76325

NUT

- adjusting, neutral start switch (3/4" long), 1st used transmission s/n 2394586

1шт.

5

211-13

BALL,1/2" Dia

steel, 1st used transmission S/N 2394586 1/2" Dia

1шт.

6

A76324

LEVER

- shifting (3rd & 4th) (Not color coded), 1st used transmission s/n 2394586

1шт.

7

A76323

LEVER

- shifting (1st & 2nd) (Not color coded), 1st used transmission s/n 2394586

1шт.

8

A75177

NUT

- lock, neutral start switch (5/32" thick), used prior to transmission s/n 2394586

1шт.

When any one or more of Refs. 8, 9, 10, 12 & 13 are required, order 1-A76326 nut, 1-A76325 nut, 1-211-13 ball, 1-A76324 lever & 1-A76323 lever (See figure 121A for neutral start switch kit.)

1шт.

9

A75176

NUT

- adjusting, neutral start switch (7/8" long), used prior to transmission s/n 2394586

1шт.

When any one or more of Refs. 8, 9, 10, 12 & 13 are required, order 1-A76326 nut, 1-A76325 nut, 1-211-13 ball, 1-A76324 lever & 1-A76323 lever (See figure 121A for neutral start switch kit.)

1шт.

10

A75980

PLATE

- neutral start switch, used prior to transmission s/n 2394586

1шт.

When any one or more of Refs. 8, 9, 10, 12 & 13 are required, order 1-A76326 nut, 1-A76325 nut, 1-211-13 ball, 1-A76324 lever & 1-A76323 lever (See figure 121A for neutral start switch kit.)

1шт.

11

211-15

BALL,5/8" Dia

- (5/8") neutral start switch, used prior to transmission s/n 2394586

1шт.

12

A76038

LEVER

- shifter (3rd & 4th) (Color coded green paint) (See note), used prior to transmission s/n 2394586

1шт.

13

A76036

LEVER

- shifter (1st & 2nd) (Color coded green paint) (See note), used prior to transmission s/n 2394586

1шт.

18

B18208

SNAP RING,#100, Ext

shifter lever to shifter shaft, used prior to transmission s/n 2394586 #100, Ext

2шт.

19

A64936

LEVER

- shifting (Replaced A60369), used prior to transmission s/n 2394586

2шт.

20

A76090

SPRING

- wave, shifting lever, used prior to transmission s/n 2394586

4шт.

21

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, shifter shaft (1st used trans. S/N 2394537) (Replaced A28211) (See inset A), used prior to transmission s/n 2394586

2шт.

22

A28211

OIL SEAL

- oil, shifter shaft (Used prior to trans. S/N 2394537) (Order A76307) (See inset B), used prior to transmission s/n 2394586

2шт.

23

A58950

PIN

- retaining, shifter shaft, used prior to transmission s/n 2394586

2шт.

24

A26530

SPRING

- detent, shifter fork, used prior to transmission s/n 2394586

2шт.

25

211-12

BALL,7/16 Dia

- detent (7/16" dia.), used prior to transmission s/n 2394586

2шт.

26

A75169

FORK - shifter (3rd & 4th), used prior to transmission s/n 2394586

1шт.

27

A75168

FORK - shifter (1st & 2nd), used prior to transmission s/n 2394586

1шт.

28

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, , used prior to transmission s/n 2394586 1/8" x 13/16", Slotted

2шт.

29

A77135

SHAFT

RAIL - shifter (Replaces A75982), used prior to transmission s/n 2394586

1шт.

30

211-7

BALL,1/4" Dia

- shifter rail retainer, used prior to transmission S/N 2394586 1/4" Dia

1шт.

31

A75171

SNAP RING,#112, 1.060", Ext

RING - snap, shifter rail retainer, used prior to transmission s/n 2394586

1шт.

32

A65101

FINGER

- shifter fork, used prior to transmission s/n 2394586

4шт.

33

A138081

COLLAR

- sliding, shifting (w/identification groove) (Replaces A65305), used prior to transmission s/n 2394586

2шт.
