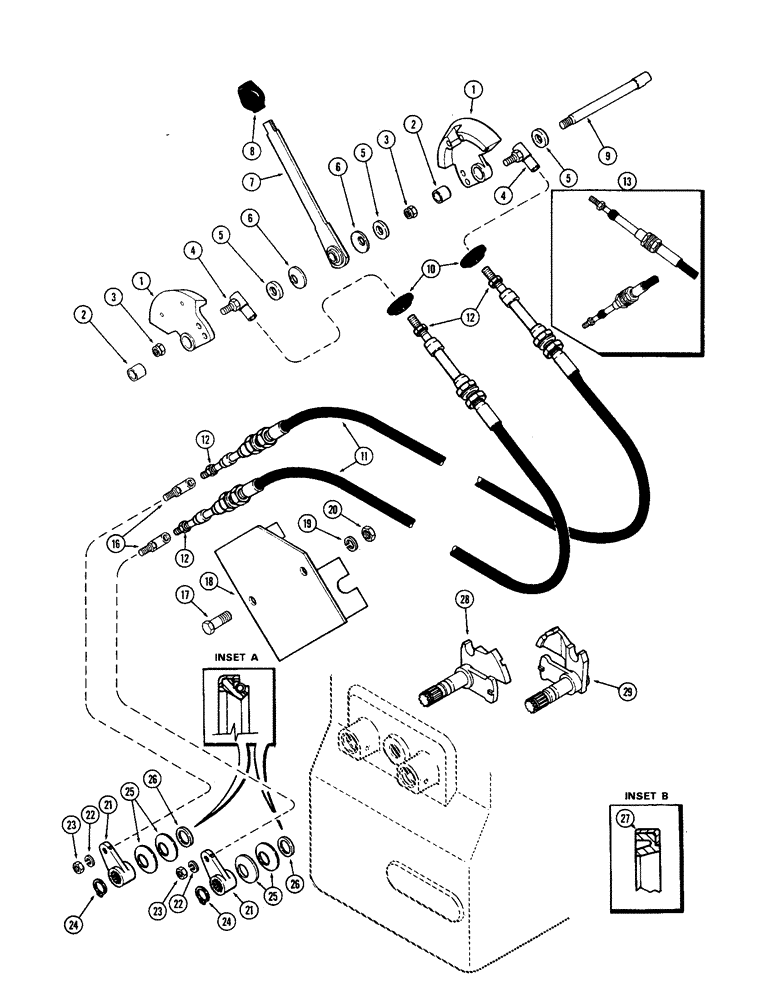

Запчасти Case IH 2470 (118) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A61862

QUADRANT

ASSY, Range shift, Includes Ref. 2

2шт.

2

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Quadrant

1шт.

3

131-5

LOCK NUT,3/8"-16, GB

(3/8"-24 N.F. Esna)

2шт.

4

D38296

JOINT

Ball, range collar

2шт.

5

A60367

SPACER

SPACER - gear shift quadrants

3шт.

6

A59662

WASHER

Beveled

2шт.

7

A75378

LEVER

Range shift

1шт.

8

A65699

KNOB

Control lever, w/brass insert (Replaced A23885)

1шт.

9

A75377

SHAFT

Control levers

1шт.

10

A75989

GROMMET

Cables

2шт.

11

A76288

CABLE

Range control (1st used tractor S/N 8692989) 68"

2шт.

12

86585245

SPECIAL NUT,JAM, 5/8" - 18

(1st used tractor S/N 8692989)

4шт.

13

A75382

CABLE

Range (Used prior to trac. S/N 8692989) (Order A76288)

2шт.

16

A60307

JOINT

Ball, range cables

2шт.

17

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

18

A75738

SPARE PART Range cable bulkhead

1шт.

19

192-25

LOCK WASHER,5/8"

1шт.

20

129-107

NUT,5/8"-11, G5

1шт.

21

A64936

LEVER

Shifting (Replaced A60369)

2шт.

22

192-21

LOCK WASHER,3/8"

2шт.

23

129-123

NUT,3/8"-24, G5

2шт.

24

B18208

SNAP RING,#100, Ext

Shifter lever to shifter shaft

2шт.

25

A76090

SPRING

Wave, shifting lever

4шт.

26

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

Oil, shifter shaft (1st used trans. S/N 2394537) (Replaced A28211) (See inset A)

2шт.

27

A28211

OIL SEAL

Oil, shifter shaft (Used prior to trans. S/N 2394537) (Order A76307) (See inset B)

2шт.

28

REF

INSTRUCTION

LEVER - shifter (1st & 2nd) (See figure 120)

1шт.

29

REF

INSTRUCTION

LEVER - shifter (3rd & 4th) (See figure 120)

1шт.
