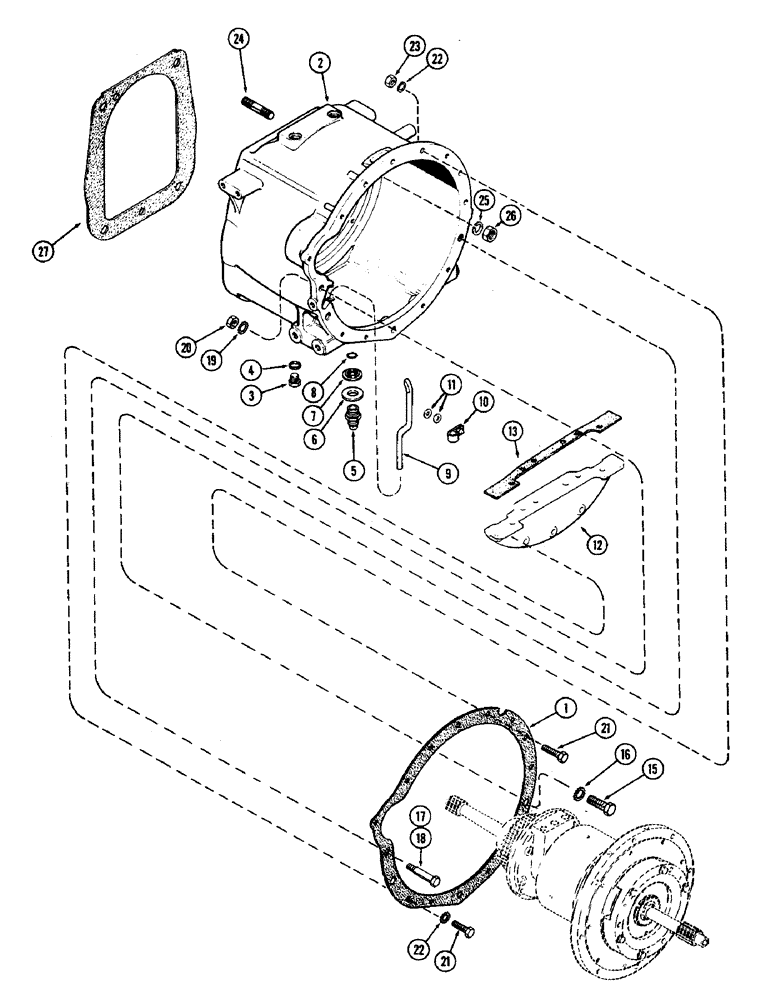

Запчасти Case IH 2470 (114) - CLUTCH HOUSING AND ATTACHING PARTS (06) - POWER TRAIN

1

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

2

A58483

HOUSING - clutch

1шт.

3

A14280

PLUG

- drain, clutch housing

1шт.

4

A58608

GASKET

- clutch hsg. drain plug

1шт.

5

A75100

FITTING

- (C-1) clutch lube oil

1шт.

6

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat steel (49/64 x 1-15/64 x 1/32")

1шт.

7

A75995

SEAL

- thread (1-3/8" O.D. x 7/64" thick)

1шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - (C-1) clutch lube oil fitting (1/2 x 5/8 x 1/16") (Included in A42886 kit - see figure 130)

1шт.

9

A75974

TUBE

- (C-1) lube oil

1шт.

10

49838

CLAMP

- (C-1) lube oil tube

1шт.

11

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- clamp, 27/64 x 3/4 x 1/32"

2шт.

12

A75305

PLATE

- flywheel housing seal

1шт.

13

A76249

GASKET

- flywheel hsg. (See fg. 40 for gasket kit)

1шт.

15

113-72

BOLT,Hex, 1/4" - 20 x 12-1/2", Gr 5

- (3/4 x 2-1/4" N.C. hex.)

2шт.

16

A34651

LOCK WASHER

- lock (51/64" I.D. ext. type teeth)

2шт.

17

A61040

STEP BOLT

BOLT - dowel (1/2 x 3" N.C. hex. hd.)

1шт.

18

A61041

STEP BOLT

BOLT - dowel (1/2 x 2-3/16" N.C. hex. hd.)

1шт.

19

A34650

LOCK WASHER

- lock (1/2" external type)

2шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

21

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

21

113-2408

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- (1/2 x 1-7/8" N.C. hex.)

3шт.

21

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

22

A34650

LOCK WASHER

- lock (1/2" external type)

11шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

24

A7073

STUD

- trans. case to clutch housing (55/64 N.F. x 4")

4шт.

25

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

26

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

27

A58138

GASKET

- clutch hsg. to trans. hsg.

1шт.
