Запчасти Case IH 2470 (112) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBLY, CONVENTIONAL TYPE, USED PRIOR TO TRACTOR S/N 8692421 (05) - STEERING

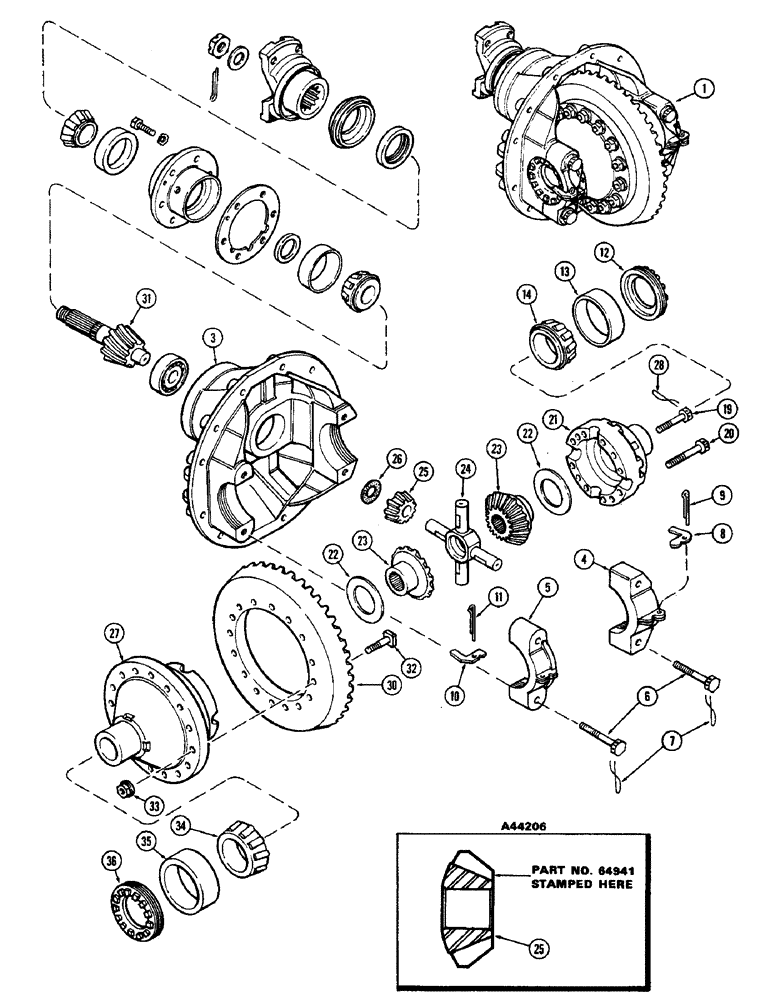

Схема запчастей Case IH 2470 - (112) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBLY, CONVENTIONAL TYPE, USED PRIOR TO TRACTOR S/N 8692421 (05) - STEERING
7
35
19
11
12
34
24
20
27
23
21
30
14
4
31
5
13
36
22
25
22
32
1
8
3
6
33
25
26
23
9
10
28

Артикул

Название

Примечание

Количество

1

A75226

CARRIER ASSY. - differential, front axle, Includes: Ref. 1 - 36

1шт.

A44224

CARRIER

"U" CARRIER ASSY. - diff., w/cap & bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - diff. brg. carrier (Order A44224)

1шт.

6

A44227

BOLT

- diff. brg. carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock (#16 gauge x 12")

4шт.

8

A44216

LOCK

- adjusting, diff. carrier brg.

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, diff. carrier brg.

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, diff. carrier brg.

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - diff. bearing

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, diff. case

1шт.

A44240

DIFFERENTIAL ASSY. - w/gears & cases (Order A44350), Includes: Ref. 19 - 27

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- short, diff. case

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- long, diff. case

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - diff. plain half (Order A44350)

1шт.

22

A44204

WASHER

- throat, diff. side gear

2шт.

23

A44223

GEAR

- side, differential

2шт.

24

A44205

DIFF. SPIDER

SPIDER - differential

1шт.

25

NLS

NO LONGER SERVICED

- differential side (See inset)

4шт.

26

A44207

WASHER

- thrust, side pinion

4шт.

27

NSS

NOT SOLD SEPARAT

CASE - flange half (Order A44350)

1шт.

28

391-709

ELECTRICAL WIRE

WIRE - lock (#18 gauge x 84")

1шт.

A44220

GEAR

SET - drive gear & pinion, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - diff. bevel drive (39 teeth) (Order A44220)

1шт.

31

NSS

NOT SOLD SEPARAT

PINION - bevel drive (8 teeth) (Order A44220)

1шт.

32

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

33

A44264

NUT

- differential, Serial Range: gear-case

16шт.

34

A31243

ROLLER BEARING

CONE - bearing, diff.

1шт.

35

A31242

CUP

- bearing, diff.

1шт.

36

A44215

NUT

- adjusting, diff. carrier brg.

1шт.

Выбрано товаров: 33
