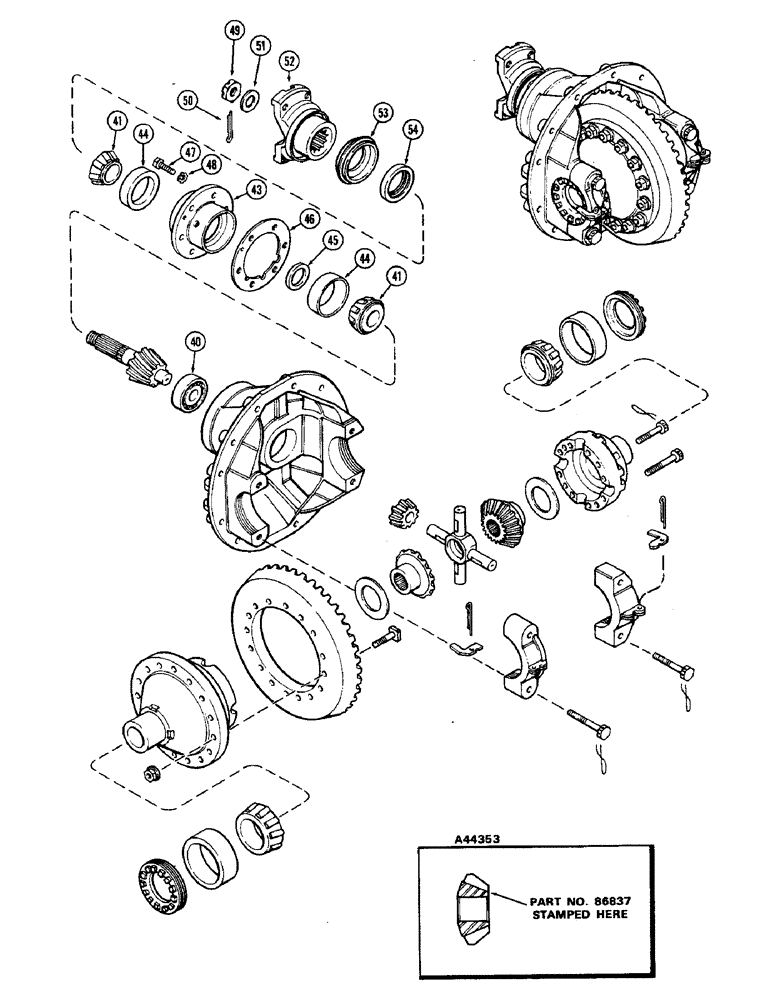

Запчасти Case IH 2470 (111A) - FRONT AXLE DIFFERENTIAL CARRIER ASSEMBY, TORQUE PROPORTIONAL TYPE, FIRST USED TRACTOR S/N 8692421 (05) - STEERING

A76239

SPARE PART

CARRIER ASSY. - diff. front axle, Includes: Ref. 40 - 54

1шт.

40

L33062

ROLLER BEARING

BEARING - roller, diff. pinion spigot (Replaces A44208)

1шт.

41

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, diff. pinion

2шт.

A44230

CAGE ASSY.,4.250" OD

- pinion, Includes: Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order A44230)

1шт.

44

F61284

BEARING CUP

CUP - bearing, pinion bearing cage

2шт.

45

A44242

BUSHING

SPACER - pinion shaft bearing (0.255")

1шт.

45

A44243

SPACER

- pinion shaft bearing (0.257")

1шт.

45

A44244

BUSHING

SPACER - pinion shaft bearing (0.261")

1шт.

45

A44245

BUSHING

SPACER - pinion shaft bearing (0.265")

1шт.

45

A44246

SPACER

- pinion shaft bearing (0.269")

1шт.

45

A44247

SPACER

- pinion shaft bearing (0.271")

1шт.

46

A44232

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

46

A44233

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.010")

1шт.

46

A44235

SHIM,.020" Thk

Pinion bearing cage .020" Thk

1шт.

46

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.030")

1шт.

47

A44212

BOLT

- pinion bearing, Serial Range: carrier-cage

6шт.

48

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. teeth Shakeproof) 9/16"

6шт.

49

A44211

NUT

- drive pinion shaft, Serial Range: end-flange

1шт.

51

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

52

A44360

YOKE

- axle drive shaft

1шт.

A44218

SEAL

CAGE ASSY. - pinion shaft to carrier, Includes: Ref. 53 and 54

1шт.

53

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

54

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order A44218)

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
