Запчасти Case IH 2470 (108) - REAR AXLE DRIVE SHAFT ASSEMBLY (05) - STEERING

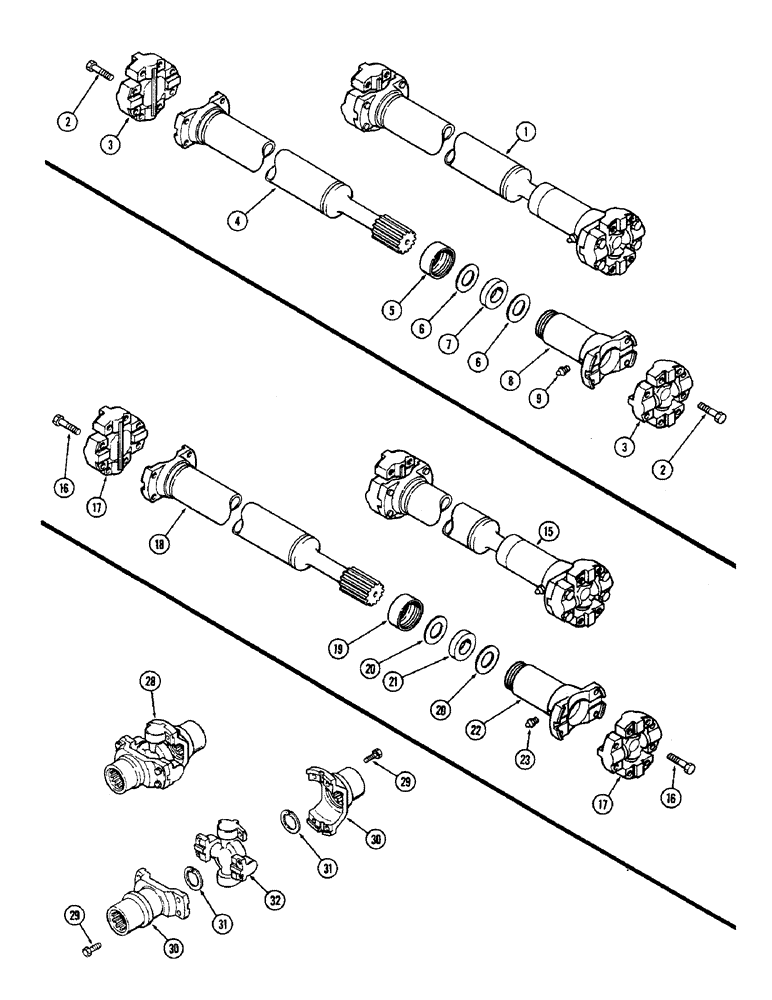

Схема запчастей Case IH 2470 - (108) - REAR AXLE DRIVE SHAFT ASSEMBLY (05) - STEERING
21
17
17
8
16
6
2
28
20
22
20
19
6
31
29
29
18
23
30
1
9
15
30
16
3
5
7
4
32
2
3
31

Артикул

Название

Примечание

Количество

1

A75281

SHAFT

ASSY. - rear axle drive, Includes: Ref. 2 - 9

1шт.

2

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - "U" joint

16шт.

3

L33945

U-JOINT SPIDER

"U" JOINT - spider & bearings

2шт.

4

A44177

TUBE

- drive shaft end

1шт.

5

A19923

CAP

- retainer, slip yoke dust shield

1шт.

6

A19922

WASHER

- retainer

2шт.

7

A19924

SEAL

- felt, slip yoke dust shield

1шт.

8

L33943

KIT

SLIP YOKE - transmission end

1шт.

Ref. 8 - L33943 contains Ref. 5, 6, 7, 8, and 9

1шт.

Ref. 8 - As depicted in the Artwork is NSS

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube

1шт.

15

A75280

SHAFT

ASSY. - front axle drive, Includes: Ref. 16 - 23

1шт.

16

A17302

SCREW,Hex, 3/8" - 24 x 1", Gr 8

BOLT - "U" joint, front axle drive shaft assembly

16шт.

17

L33945

U-JOINT SPIDER

"U" JOINT - spider & bearings, front axle drive shaft assembly

2шт.

18

A44174

TUBE

- trans. end, front axle drive shaft assembly

1шт.

19

A19923

CAP

- retainer, slip yoke dust shield, front axle drive shaft assembly

1шт.

20

A19922

WASHER

- retainer, front axle drive shaft assembly

2шт.

21

A19924

SEAL

- felt, slip oke dust shield, front axle drive shaft assembly

1шт.

22

L33943

KIT

SLIP YOKE - drive shaft end, front axle assembly

1шт.

Ref. 22 - L33943 contains Ref. 19, 20, 21, 22 and 23

1шт.

Ref. 22 - As depicted in the Artwork is NSS

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, front axle drive shaft assembly

1шт.

28

A75275

JOINT

ASSY. - universal, front & rear axle drive, Includes: Ref. 29 - 32

1шт.

29

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

S - "U" joint to slip yoke (Replaces A56243), front & rear axle drive universal joint assembly

8шт.

30

A44175

YOKE

SLIP YOKE - front & rear axle drive universal joint assembly

2шт.

31

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , slip yoke, replaced S62211, front & rear axle drive universal joint assembly 1.812", Int, #181

2шт.

32

A44176

JOINT

"U" JOINT - cross w/bearings, front & rear axle drive universal joint assembly

1шт.

Выбрано товаров: 27
