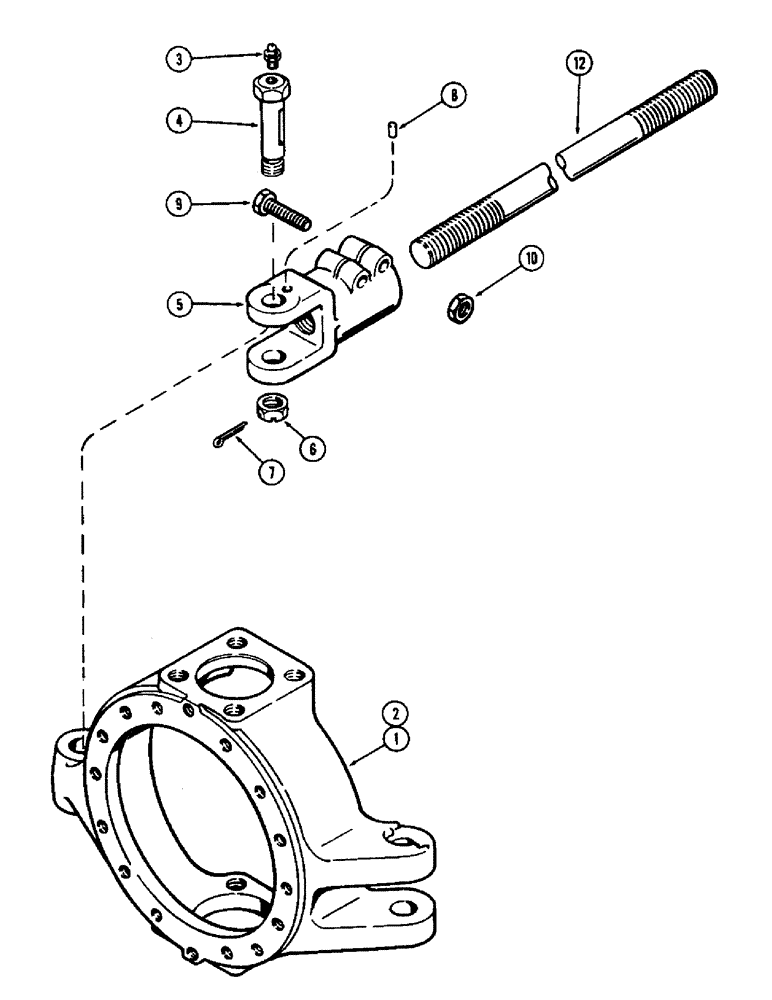

Запчасти Case IH 2470 (106) - TIE ROD, FRONT AND REAR HYDRAULIC STEER (05) - STEERING

1

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - spindle, R.H. front axle & L.H. rear axle (See figure 103A)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - spindle, L.H. front axle & R.H. rear axle (See figure 103A)

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (180 degrees)

2шт.

4

A13107

BOLT

- pivot, tie rod yoke

2шт.

5

A75253

YOKE

- tie rod

2шт.

6

A13110

NUT

- tie rod pivot bolt

2шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

8

A13111

AXLE PIN

PIN - lock, tie rod pivot bolt

2шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex.)

4шт.

10

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

4шт.

12

A76245

ROD

- tie, front axle (58-1/4 x 1-1/4" dia.) (Replaces A75240)

1шт.

12

A77226

ROD - tie, rear axle (58-1/4 x 1-1/2" dia.)

1шт.

12

A76586

ROD

- tie, 66+"

1шт.
