Запчасти Case IH 2470 (104) - FRONT AXLE PLANETARY (05) - STEERING

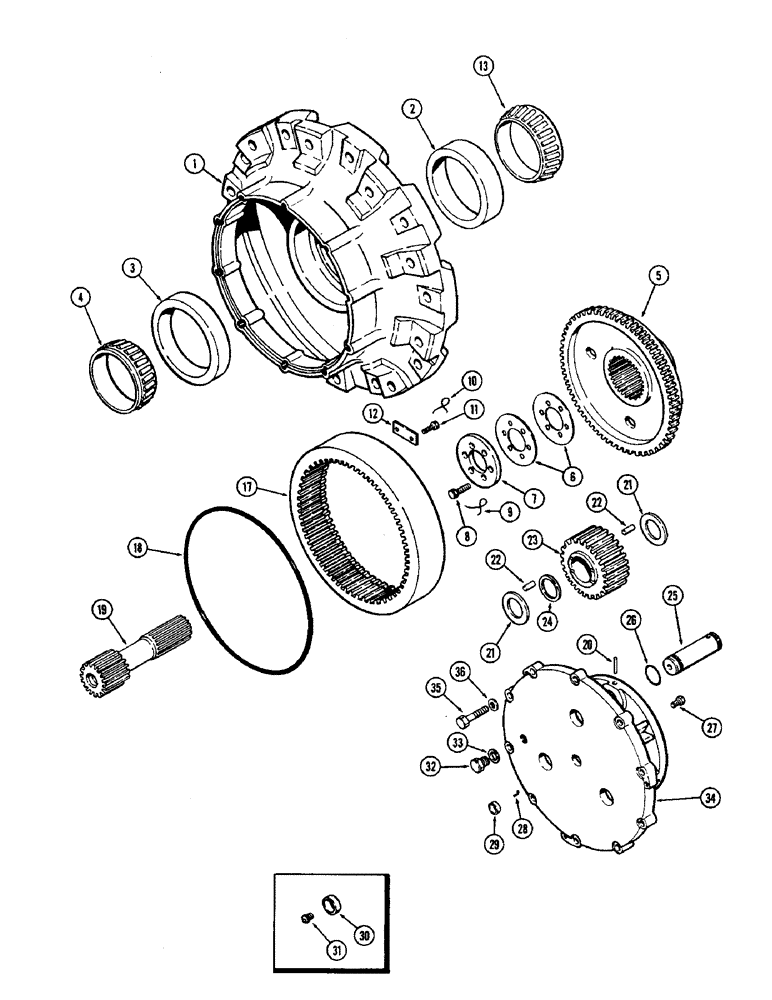

Схема запчастей Case IH 2470 - (104) - FRONT AXLE PLANETARY (05) - STEERING
35
22
6
26
23
11
18
3
31
21
24
17
27
32
33
20
13
34
9
4
25
19
5
7
29
36
22
12
10
30
2
28
21
1
8

Артикул

Название

Примечание

Количество

1

A77101

HUB

ASSY. - wheel drive (Replaces A75260), Includes: Ref. 2 and 3

2шт.

2

A75262

CUP

- bearing, wheel drive hub (7-3/4" O.D. x 1-1/2")

1шт.

3

L31698

BEARING CUP

CUP - bearing, wheel drive hub (7-3/16" O.D. x 1-5/16")

1шт.

A76461

HOLDER

ASSY. - planetary ring gear, Includes: Ref. 4 and 5

2шт.

4

A75263

CONE

- bearing, planetary ring gear (5" I.D. x 1-13/16")

1шт.

5

NSS

NOT SOLD SEPARAT

HOLDER - planetary ring gear

1шт.

6

A75264

SHIM,.003" Thk

Wheel hub brg. .003" Thk

1шт.

6

A75265

SHIM,.007" Thk

Wheel hub brg. .007" Thk

1шт.

6

A75266

SHIM,.020" Thk

Wheel hub brg. .020" Thk

1шт.

7

A75267

CAP

- retainer, wheel hub brg. & holder

2шт.

8

A75268

BOLT

- (3/8 x 1-1/4" N.C. hex.) (Drilled)

12шт.

9

391-629

ELECTRICAL WIRE

WIRE - safety (#16 x 24")

2шт.

10

391-675

WIRE - safety (#17 x 6")

12шт.

11

46945

SCREW

BOLT - (3/8 x 1" N.C. hex.) (Drilled)

24шт.

12

A75270

RETAINER

- planetary ring gear

12шт.

13

L31699

TAPERED BEARING

CONE - bearing, wheel spindle (5" I.D. x 1-1/2")

1шт.

17

A76019

GEAR

- ring, planetary

2шт.

18

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to wheel hub

2шт.

19

A76594

SHAFT

- planet sun gear (Replaces A76021)

2шт.

20

138-2005

PIN,1/4" x 1", Coiled

6шт.

21

A63228

WASHER

- planet gear needle roller bearing

12шт.

22

A75274

ROLLER

BEARING - needle roller, planet gear

228шт.

23

A76020

GEAR

- planet

6шт.

24

A63227

SPACER

- planet gear needle roller bearing

6шт.

25

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear (Replaced A75273)

6шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - planet gear pin

6шт.

27

A75277

ADJUSTMENT SCREW

- adjusting, planet sun gear shaft

2шт.

28

A75278

PIN

- lock, planet sun gear shaft adj. bolt

2шт.

29

41-1016

PLUG,Cup, 1"

- cup (1") (Replaced Refs. 30 & 31)

1шт.

30

A75279

PLUG

- cup, planetary carrier

2шт.

31

A43250

BREATHER

VALVE ASSY. - relief, planetary carrier (Replaced R11152)

2шт.

32

A14280

PLUG

- planetary fill & drain

2шт.

33

A58608

GASKET

- planetary fill & drain plug

2шт.

34

A76342

COVER

CARRIER - planetary (Replaced A75271)

2шт.

35

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- (1/2 x 1-7/8" N.C. hex.)

20шт.

36

L30674

WASHER

- (17/32 x 1 x 1/8")

20шт.

Выбрано товаров: 36
