Запчасти Case IH 2470 (103A) - FRONT AXLE TRUNNION AND SPINDLE HOUSING, TO REPAIR RIGHT HAND HOUSING (05) - STEERING

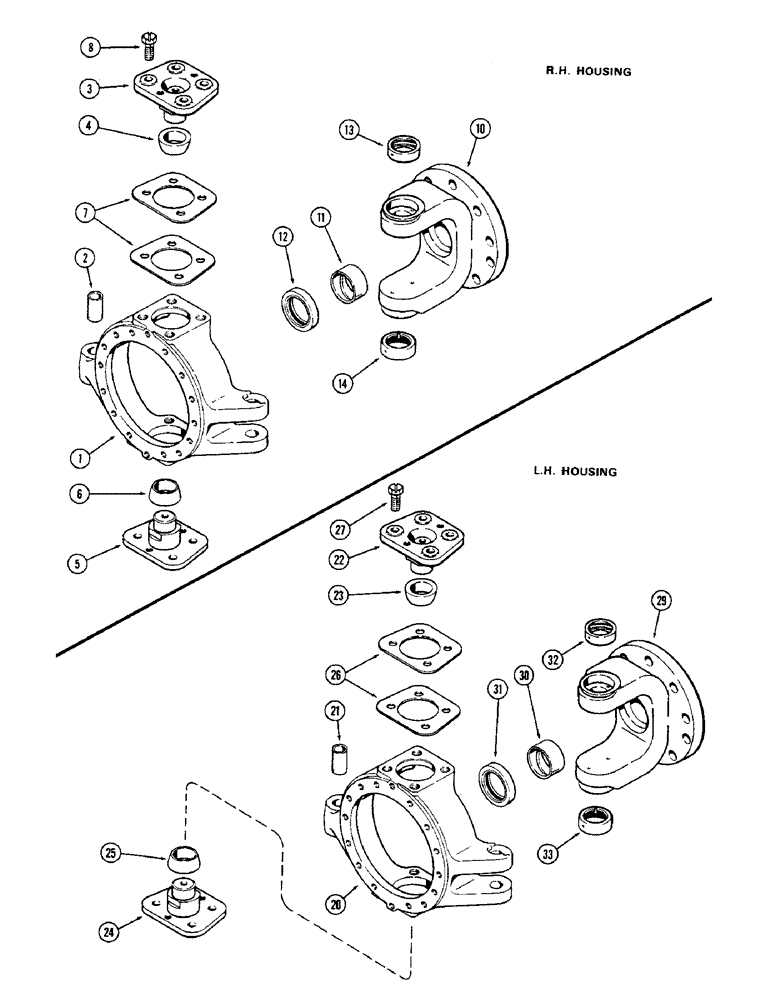

Схема запчастей Case IH 2470 - (103A) - FRONT AXLE TRUNNION AND SPINDLE HOUSING, TO REPAIR RIGHT HAND HOUSING (05) - STEERING
12
13
32
1
8
11
20
21
33
25
30
5
10
31
6
26
4
24
27
29
7
23
22
14
2
3

Артикул

Название

Примечание

Количество

1

A75249

HOUSING

ASSY. - spindle (R.H.) (replaces A76580), Includes: Ref. 2

1шт.

2

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- housing

1шт.

3

A136138

PIN

ASSY. - king, upper, Includes: Ref. 4

2шт.

4

A76573

RING

- king pin inner bearing

1шт.

5

A136139

PIN

ASSY. - king, lower, Includes: Ref. 6

2шт.

6

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

RING - king pin inner bearing

1шт.

7

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin .005" Thk

1шт.

7

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin .015" Thk

1шт.

8

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- (5/8 x 1-3/4" N.C. hex. hd. capscrew)

16шт.

10

A76567

TRUNNION

ASSY. - axle, Includes: Ref. 11 - 14

2шт.

11

A75234

BUSHING

- (2-1/2 x 2-11/16 x 1-1/2")

1шт.

12

A75233

SEAL

- oil (2-1/2 x 3-1/2 x 1/2")

1шт.

13

A76569

BUSHING

RING - king pin outer bearing, upper

1шт.

14

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

RING - king pin outer bearing, lower

1шт.

20

A75250

HOUSING

ASSY. - spindle (L.H.) (replaces A76581), repair, Includes: Ref. 21

1шт.

21

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing, to repair L.H.

1шт.

22

A136138

PIN

ASSY. - king, upper, to repair L.H. housing, Includes: Ref. 23

2шт.

23

A76573

RING

- king pin inner bearing, to repair L.H. housing

1шт.

24

A136139

PIN

ASSY. - king, lower, to repair L.H. housing, Includes: Ref. 25

2шт.

25

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

RING - king pin inner bearing, to repair L.H. housing

1шт.

26

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin, to repair LH housing .005" Thk

1шт.

26

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin, to repair LH housing .005" Thk

1шт.

27

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- (5/8 x 1-3/4" N.C. hex. hd. capscrew), to repair L.H. housing

16шт.

29

A76567

TRUNNION

ASSY. - axle, to repair L.H. housing, Includes: Ref. 30 - 33

2шт.

30

A75234

BUSHING

- (2-1/2 x 2-11/16 x 1-1/2"), to repair L.H. housing

1шт.

31

A75233

SEAL

- oil (2-1/2 x 3-1/2 x 1/2"), to repair L.H. housing

1шт.

32

A76569

BUSHING

RING - king pin outer bearing, upper, to repair L.H. housing

1шт.

33

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

RING - king pin outer bearing, lower, to repair L.H. housing

1шт.

Выбрано товаров: 28
