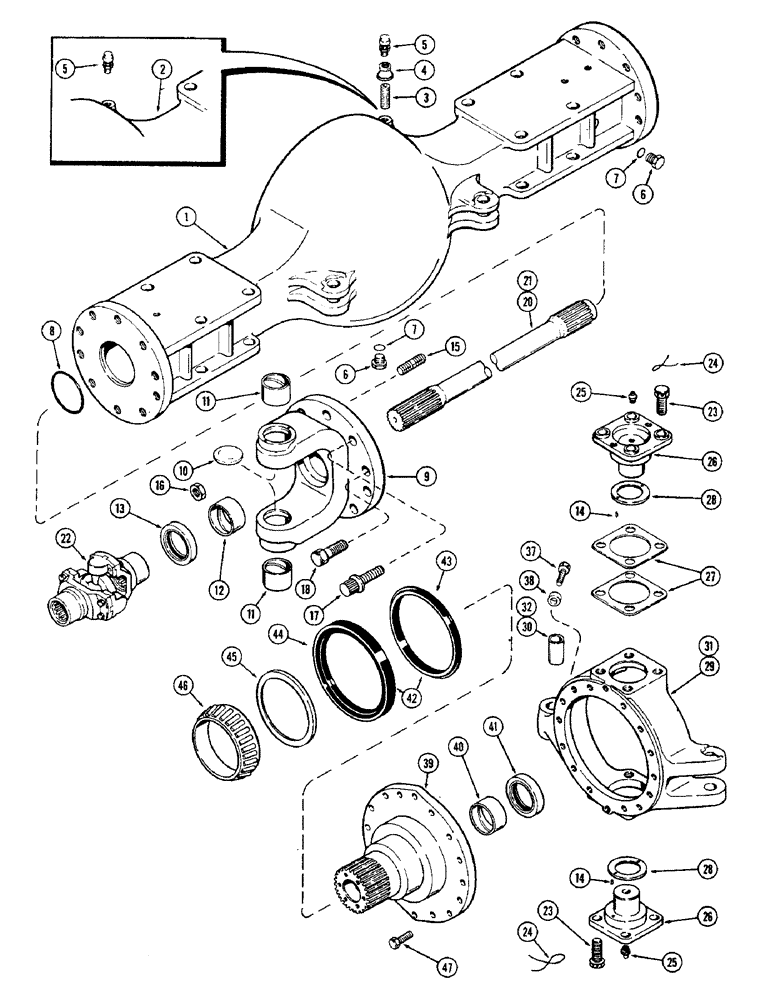

Запчасти Case IH 2470 (102) - FRONT AXLE HOUSING, TRUNNION AND SPINDLE (05) - STEERING

1

A76478

HOUSING

- axle, differential (With 3/8" P.T. breather hole)

1шт.

2

A75224

HOUSING

- axle, differential (With 1/8" P.T. breather hole)

1шт.

3

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - pipe (3/8" P.T. x 2")

1шт.

4

221-345

COUPLING, BREAK AWAY

COUPLING - reducer, Serial Range: (3/8-1/8")

1шт.

5

A12928

BREATHER

- diff. hsg.

1шт.

6

A14280

PLUG

- drain, differential hsg.

2шт.

7

A58608

GASKET

- drain plug

2шт.

8

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - seal, trunnion to diff. hsg. (3-5/8 x 3-7/8 x 1/8")

2шт.

9

A75230

TRUNNION ASSY. - axle, Includes: Ref. 10 - 14

2шт.

10

41-36

PLUG,Exp, 2 1/4"

- (2-1/4")

2шт.

11

A76244

BUSHING

- king pin

2шт.

12

A75234

BUSHING

- universal

1шт.

13

A75233

SEAL

- oil (3-1/2" O.D. x 2-1/2" I.D. x 1/2")

1шт.

14

A75236

PIN

- trunnion thrust washer

4шт.

15

A75225

STUD

- mounting, axle trunnion (3/4" N.C. x 2-1/8")

4шт.

16

25-1012

NUT,3/4"-10, G5

4шт.

17

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - (3/4 x 2" N.C. ferry cap)

12шт.

18

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

20

A75243

SHAFT

- axle drive, short (28-5/8")

1шт.

21

A75242

SHAFT

- axle drive, long (32-1/2")

1шт.

22

A75275

JOINT

ASSY. - universal (See figure 108)

2шт.

23

A75248

BOLT - drilled head (3/4 x 1-3/8" N.C.)

16шт.

24

391-407

WIRE - safety (#13 x 10")

8шт.

25

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

4шт.

26

A75244

PIN

- King

4шт.

27

A75246

SHIM,.005" Thk

King pin .005" Thk

1шт.

27

A75247

SHIM,.015" Thk

King pin .015" Thk

1шт.

28

A75245

WASHER

- thrust, king pin

4шт.

29

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - spindle (R.H.) (See figure 103A), Includes: Ref. 30

1шт.

30

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - spindle (L.H.) (See figure 103A), Includes: Ref. 32

1шт.

32

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing

1шт.

37

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

38

A77121

HUB

SPACER - adjusting bolt (21/32 x 1 x 5/8")

2шт.

39

A75254

SPINDLE

ASSY. - wheel, Includes: Ref. 40 - 47

2шт.

40

A75234

BUSHING

- universal joint yoke

1шт.

41

A75233

SEAL

- oil, axle

1шт.

42

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSY. - oil, wheel spindle (Replaced A75259), Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - oil, inner half

1шт.

44

NSS

NOT SOLD SEPARAT

SEAL - oil, outer half

1шт.

45

A75256

RING

- back-up, wheel spindle bearing

1шт.

46

L31699

TAPERED BEARING

CONE - bearing, wheel spindle (5" I.D. x 1-1/2")

1шт.

47

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

28шт.

47

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.
