Запчасти Case IH 2470 (100) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER ASSEMBLY (05) - STEERING

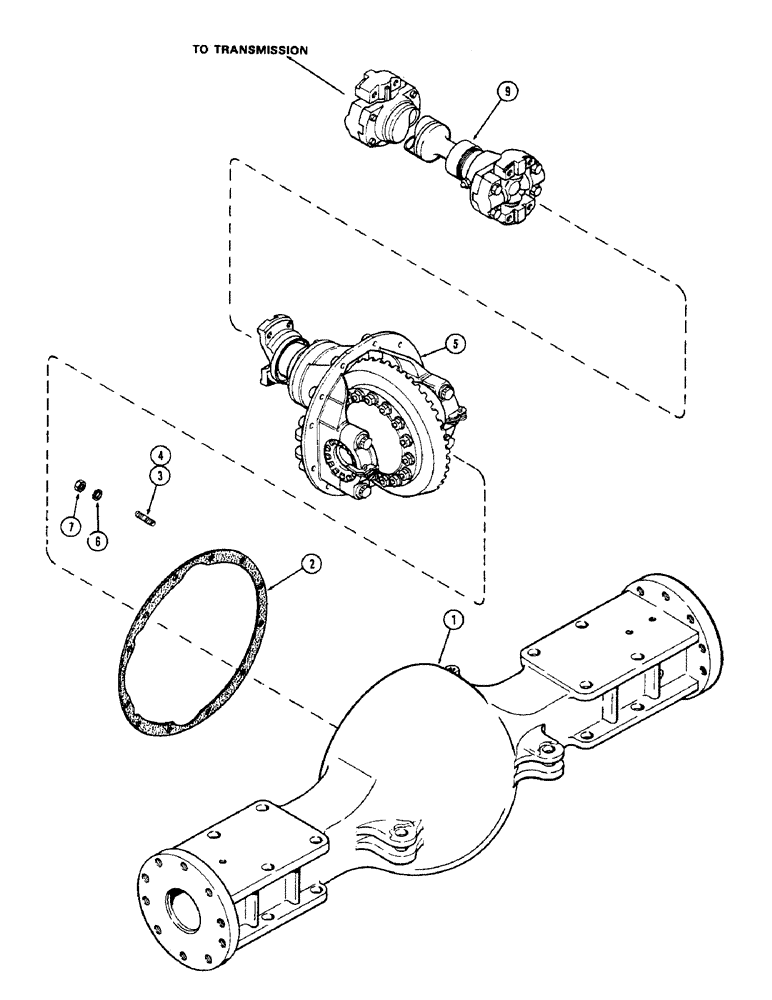

Схема запчастей Case IH 2470 - (100) - FRONT AXLE HOUSING AND DIFFERENTIAL CARRIER ASSEMBLY (05) - STEERING
9
7
4
1
3
6
2
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOUSING - axle, differential (See figure 102)

1шт.

2

A75228

GASKET

Diff. assy. to diff. hsg.

1шт.

3

A50241

STUD

Mounting, diff. assy. (1/2" N.C. x 2-1/8")

8шт.

4

A75985

STUD

Mounting, diff. assy. (1/2" N.C. x 2-1/2")

4шт.

5

A76239

SPARE PART

DIFFERENTIAL ASSY. - front axle (1st used tractor S/N 8692421) (See figures 110 & 111A)

1шт.

5

A75226

SPARE PART DIFFERENTIAL ASSY. - front axle (Used prior to tractor S/N 8692421) (See figures 112 & 113A)

1шт.

6

92-8

LOCK WASHER,1/2"

12шт.

7

25-108

NUT,1/2"-13, G5

Hex

12шт.

8

A44360

YOKE

UNIVERSAL JOINT YOKE Axle drive shaft (Replaces A75229)

1шт.

9

A75280

SHAFT

ASSY. - drive, front axle (See figure 108)

1шт.

Выбрано товаров: 10
