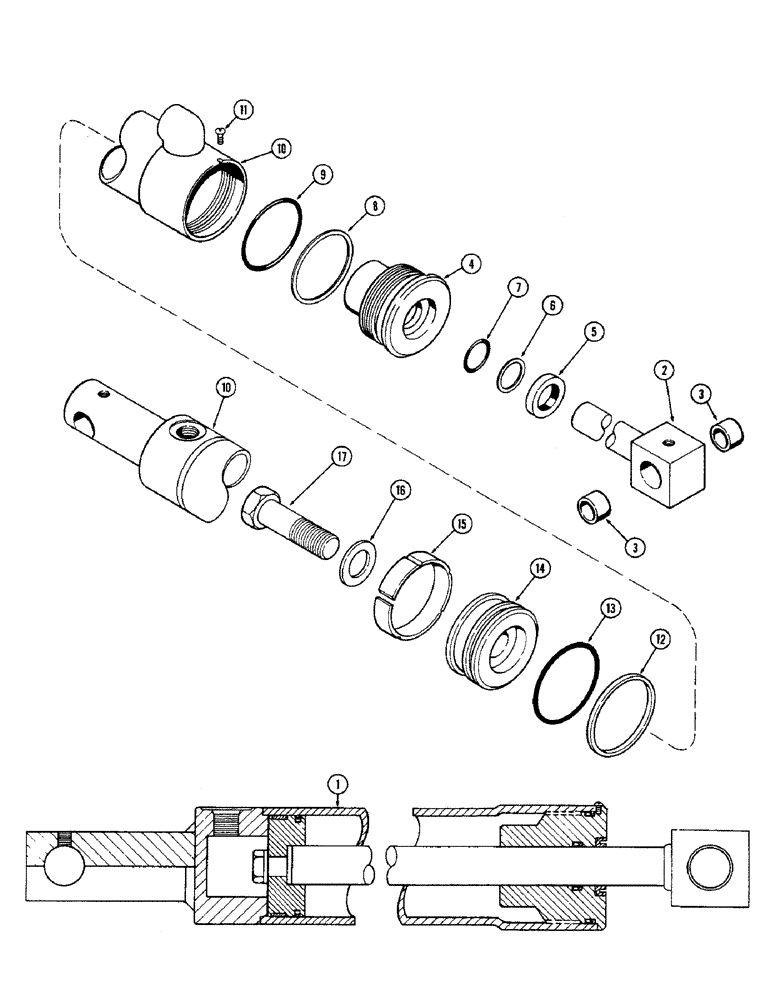

Запчасти Case IH 2470 (099A) - STEERING CYLINDER, 3 INCH DIAMETER CYLINDER WITH 8 INCH STROKE (05) - STEERING

1

G34220

CYLINDER

ASSY. - steering, Includes: Ref. 2 - 17

2шт.

2

G34039

ROD

- cylinder

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- cylinder rod

2шт.

4

G34232

GLAND

ASSY. - cyl. rod, Includes: Ref. 5 - 9

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod (1 x 1-1/2 x 5/16")

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

6

A35899

RING

WASHER - back-up

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - rod (1 x 1-1/4 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - back-up

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - rod (3 x 3-1/4 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

10

G34221

TUBE - cylinder

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - (#8-32 x 1/4" rd. hd. slotted self-tapping)

1шт.

12

G32034

RING

SEAL - ring

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

13

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

14

G34229

PISTON

- cylinder

1шт.

15

G32033

RING

- wear

1шт.

Included w/ SEAL REPAIR KIT, G34231

1шт.

16

L30674

WASHER

- piston bolt (17/32 x 1 x 1/8") (Replaced G34228)

1шт.

17

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- (1/2 x 1-1/2" N.F. hex. hd. capscrew)

1шт.

G34231

SEAL

KIT - seal repair, Includes: Ref. 5 - 9, 12, 13 and 15

1шт.
