Запчасти Case IH 2470 (098) - STEERING CYLINDER, 2-1/2 INCH DIAMETER CYLINDER WITH 8 INCH STROKE (05) - STEERING

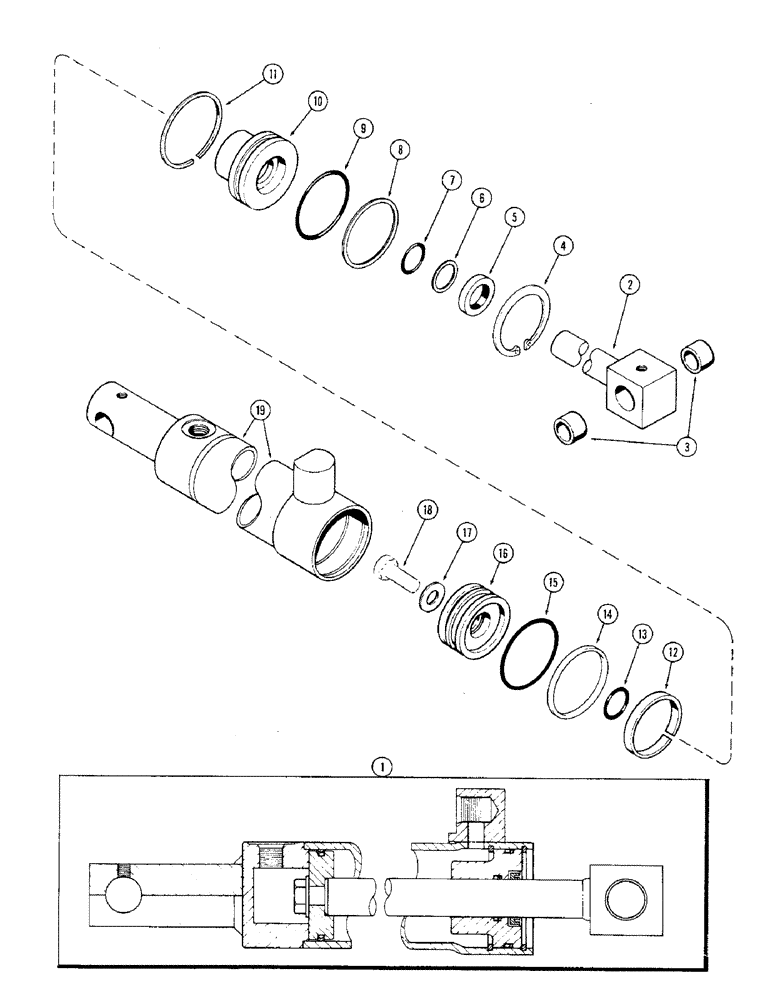

Схема запчастей Case IH 2470 - (098) - STEERING CYLINDER, 2-1/2 INCH DIAMETER CYLINDER WITH 8 INCH STROKE (05) - STEERING
10
17
1
18
4
12
11
2
15
3
8
6
19
9
13
5
7
14
16

Артикул

Название

Примечание

Количество

1

G34873

CYLINDER

ASSY. - steering (Replaces A34038), Includes: Ref. 2 - 19

2шт.

2

G34039

ROD

- cylinder, Includes: Ref. 3

1шт.

3

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- cylinder rod

2шт.

4

D23649

SNAP RING,2.625", Int, #262

RING - retaining (2-27/32" free dia.)

2шт.

G33967

GLAND

ASSY. - cyl. rod, Includes: Ref. 5 - 10

1шт.

5

G33955

WIPER SEAL,25.37mm ID x 38.13mm OD x 7.92mm Thk

SCRAPER - rod (1 x 1-1/2 x 5/16")

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

6

A35899

RING

- back-up

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - (1 x 1-1/4 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

8

G33953

BACK-UP RING,2.407" ID

RING - back-up (2-13/32" I.D.)

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

9

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - (2-3/8 x 2-5/8 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

11

G34872

RING

- retaining (2-7/8" free dia.)

1шт.

12

G100714

RING

- wear, piston (2-1/2 x 2-3/4 x 3/8")

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

13

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

"O" RING - seal, rod, Includes: Ref. 14

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

14

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - (2 x 2-1/4 x 1/8")

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

15

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal

1шт.

Included w/ SEAL REPAIR KIT, G34874

1шт.

16

G34871

PLUNGER

PISTON - cylinder

1шт.

17

G35009

WASHER

- piston bolt (17/32 x 1-1/16 x 7/64")

1шт.

18

28-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

- (1/2 x 1-1/2" N.F. hex. hd. capscrew)

1шт.

19

G33944

TUBE,16.32" L

- cylinder

1шт.

G34874

SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

KIT - seal repair, Includes: Ref. 5 - 9 and 12 - 15

1шт.
