(096) - REAR STEER VALVE ASSEMBLY

Запчасти Case IH 2470 (096) - REAR STEER VALVE ASSEMBLY (05) - STEERING

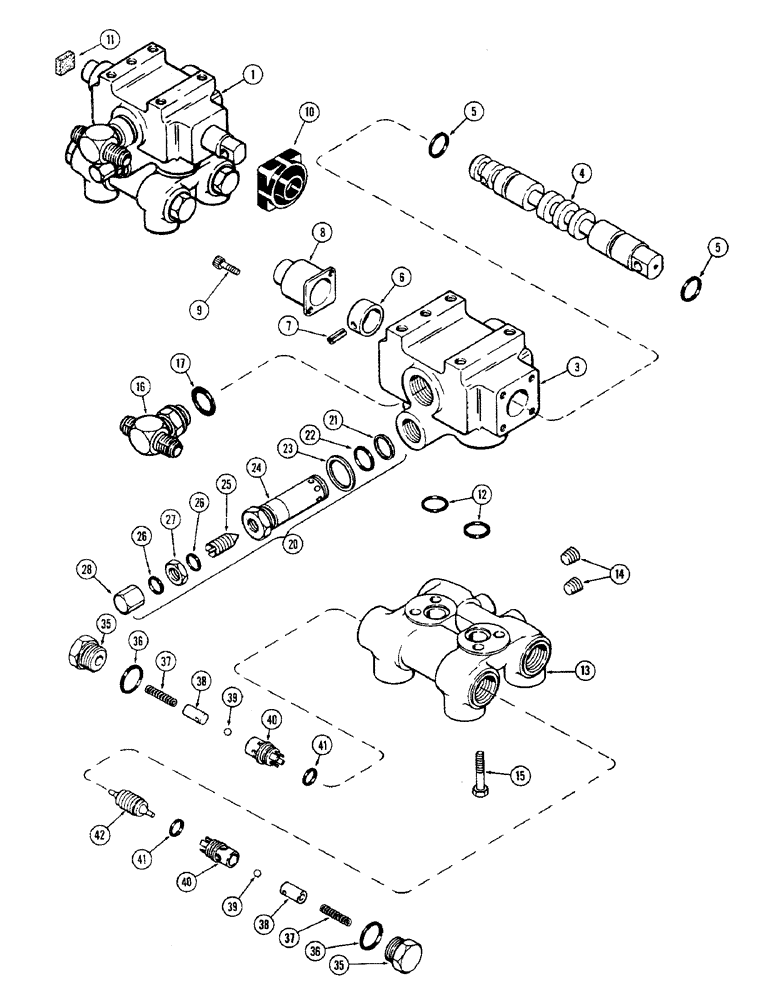

Схема запчастей Case IH 2470 - (096) - REAR STEER VALVE ASSEMBLY (05) - STEERING
27
3
7
36
37
37
21
5
40
26
41
38
36
16
24
13
4
25
5
8
23
35
39
22
20
38
12
11
17
10
40
28
39
1
15
26
9
42
41
14
6
35
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A76334

VALVE

ASSY. - rear steer (Replaced A75643), Includes: Ref. 3 - 42

1шт.

A44156

BODY ASSY. - valve & spool, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve spool (Order A44156)

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve detent (Order A44156)

1шт.

5

S6151

O-RING,0.742" ID x 0.937" OD x 0.103"

"O" RING - sealing, spool stage (47/64 x 15/16 x 7/64")

2шт.

6

A44159

SLEEVE

- valve spool retaining stop

1шт.

7

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted, Valve spool stop sleeve

1шт.

8

T22221

CAP

- spool end stop

1шт.

9

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- (1/4 - 20 x 5/8" Fillister hd.)

2шт.

10

A76236

BOOT

- spool dust protection

1шт.

11

A76237

FILTER

- valve cap breather

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - valve body (11/16 x 7/8 x 3/32")

2шт.

13

A44160

BODY - valve load check

1шт.

14

221-841

PLUG

- pipe (1/4" hex. socket head)

2шт.

15

165-112

SCREW,1/4" - 20 x 1 1/2"

BOLT - (1/4 x 1-1/2" N.C. hex. socket head)

4шт.

16

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - adjustable

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

20

A44494

VALVE

ASSY. - relief cartridge (Replaced A44348), Includes: Ref. 21 - 28

1шт.

21

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING - sleeve to body

1шт.

22

A44179

PACKING

- sleeve "O", Serial Range: ring-body

1шт.

23

A45355

GASKET

- relief valve sleeve

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A44494)

1шт.

25

178-807

SCREW

- set (Slotted), relief valve

1шт.

26

A29468

GASKET

- relief valve

2шт.

27

25-158

JAM NUT,Jam, 1/2"-20, G5

- (1/2" N.F. hex., jam)

1шт.

28

T22210

COVER

CAP - valve set screw

1шт.

35

A44165

PLUG - load check valve

4шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - load check valve port plug (3/4 x 5/8 x 3/32")

4шт.

37

A44164

SPRING

- load check ball (1-17/64" free length)

4шт.

38

A44163

PAD

GUIDE - load check spring

4шт.

39

211-11

BALL,3/8" Dia

- load check (.) 3/8" Dia

4шт.

40

A44162

SEAT

- load check ball

4шт.

41

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - load check ball seat (1/2 x 5/8 x 1/16")

4шт.

42

A44161

ADJUSTMENT ROD

SPOOL - valve port

2шт.
