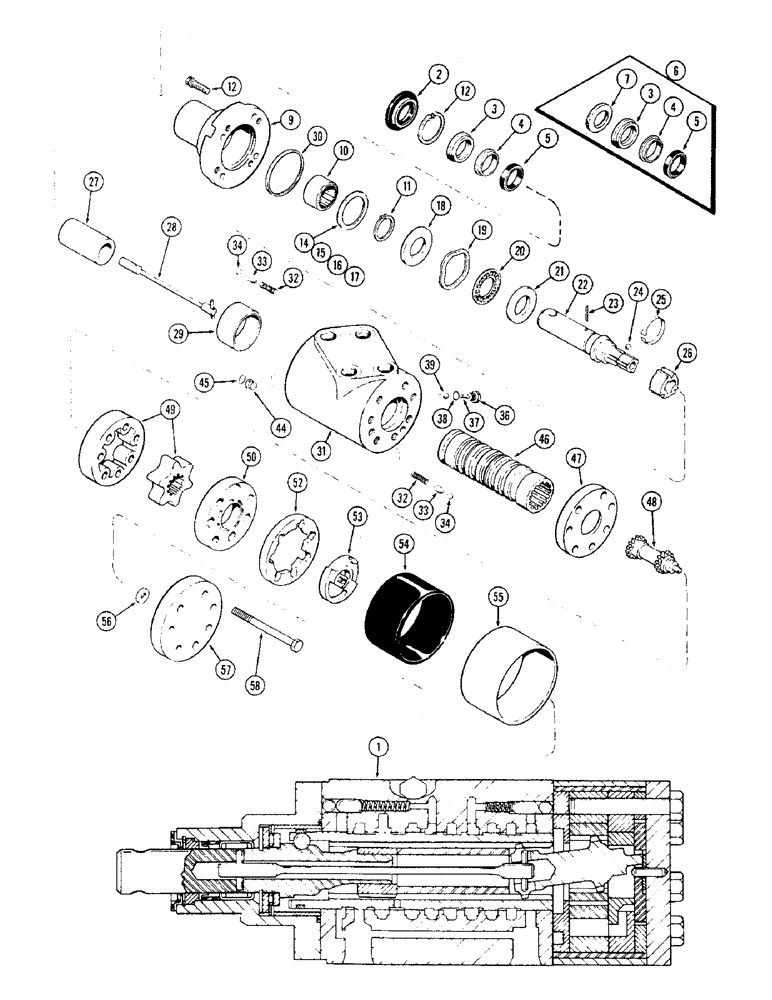

Запчасти Case IH 2470 (094) - FRONT STEER HAND PUMP AND CONTROL VALVE (05) - STEERING

1

A76910

VALVE

PUMP ASSY. - front steer (Replaced A75353), Includes: Ref. 1 - 58

1шт.

A45272

KIT

- seal, drive shaft end cover (Replaces A44582), Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, inner

1шт.

5

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

6

A44582

REPAIR KIT

KIT - seal, drive shaft end cover (Order A45272) (Incl. refs. 3 - 5 & 7)

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING - felt

1шт.

8

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer

1шт.

9

A43562

ASSY. - upper, Includes: Ref. 10

1шт.

10

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle (With plastic cage)

1шт.

11

A43720

RING

- retaining, end cover needle bearing

1шт.

12

A43567

BOLT

- end cover

4шт.

A44435

SHIM

KIT - needle brg. cover (Replaced A43557), Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SHIM - (0.010")

4шт.

15

NSS

NOT SOLD SEPARAT

SHIM - (0.005")

4шт.

16

NSS

NOT SOLD SEPARAT

SHIM - (0.002")

1шт.

17

NSS

NOT SOLD SEPARAT

SHIM - (0.03")

1шт.

18

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

21

F19634

BEARING WASHER

WASHER - thrust, bearing

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- retaining, torsion, Serial Range: bar-shaft

1шт.

24

211-9

BALL,5/16" Dia

- (.) 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - spring, ball pre-load

1шт.

26

A43554

RING

- drive

1шт.

27

A44198

SPACER

- drive link

1шт.

28

A44197

BAR

T-BAR ASSY. - torsion

1шт.

29

A43728

SPACER

- shaft pre-load spring

1шт.

30

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

33

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

34

NSS

NOT SOLD SEPARAT

BALL - (9/32" dia.)

3шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 36 - 39

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG ASSY. - relief valve

1шт.

37

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

38

F19630

O-RING

"O" RING - sealing (19/64 x 27/64 x 1/16")

1шт.

39

211-7

BALL,1/4" Dia

1шт.

44

A43565

PLUG

- porting, body

1шт.

45

A43729

O-RING

"O" RING - plug

1шт.

46

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

47

A43569

BUSHING

PLATE - spacer

1шт.

48

A44199

LINK

- drive

1шт.

49

A44200

ROTOR

SET - pump

1шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY. - pump (Not illust.), Includes: Ref. 52 and 53

1шт.

52

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

53

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

54

A44194

SEAL

- rotor

1шт.

55

A44195

RETAINER

- rotor seal

1шт.

56

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

57

A43580

COVER

END COVER - rotor (Includes pin)

1шт.

58

A44196

BOLT

- sealing, end cover

7шт.
