Запчасти Case IH 2470 (092) - REAR HYDRAULIC STEER (05) - STEERING

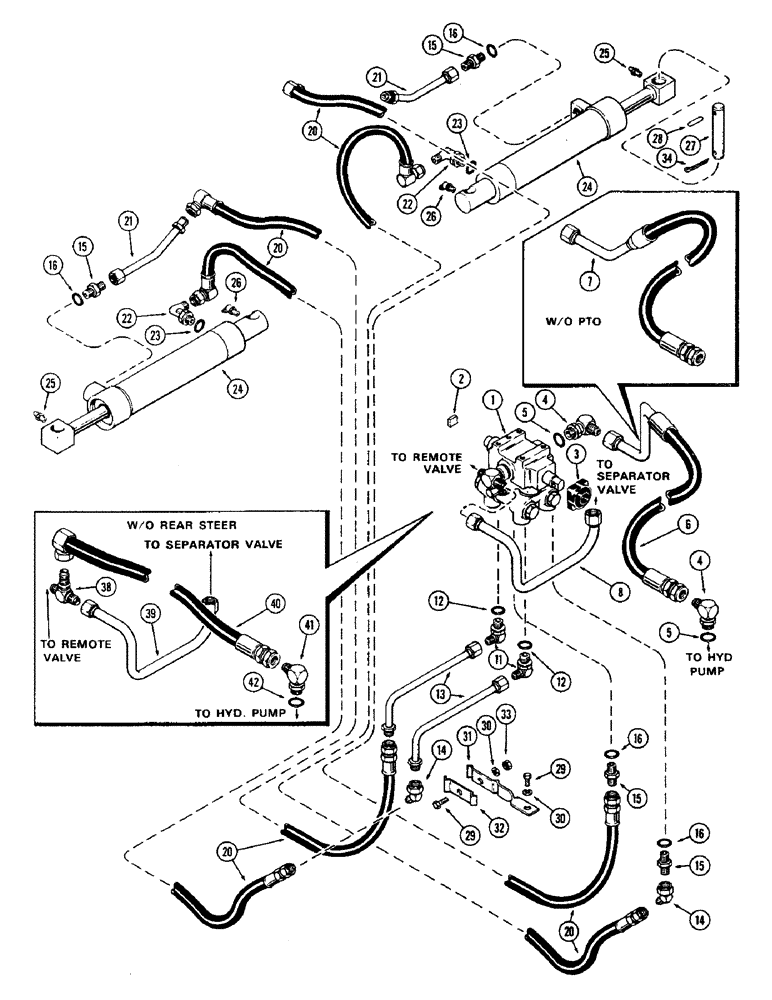

Схема запчастей Case IH 2470 - (092) - REAR HYDRAULIC STEER (05) - STEERING
20
27
20
25
5
29
14
28
15
16
39
14
23
38
24
40
26
13
42
16
7
31
41
32
15
15
4
20
6
8
25
21
11
30
3
2
12
20
1
22
12
21
29
4
26
16
23
30
16
33
24
5
22
15
34

Артикул

Название

Примечание

Количество

1

A76334

VALVE

ASSY. - rear steering (Replaced A75643) (See fg. 96)

1шт.

2

A76237

FILTER

Steer valve

1шт.

3

A76236

BOOT

Steer valve

1шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 5

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

A75642

SPARE PART Pump to steering valve (Used w/PTO)

1шт.

7

A75794

HOSE

SPARE PART Pump to rear steering valve (Used w/o PTO)

1шт.

8

A75644

SPARE PART Return, rear steering

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Includes Ref. 12

2шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

A75645

SPARE PART Rear steering, Serial Range: valve-hose

2шт.

14

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

(1/2" tube O.D.)

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, straight, Incl. Ref 16

4шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

A75646

HOSE

Steering valve to cylinder (35")

4шт.

21

A75647

TUBE

Steering cylinder

2шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 23

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

REF

INSTRUCTION

CYLINDER ASSY. - steering (Order from figure 98 & 99A)

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

27

A75640

PIN

Steering cylinder

4шт.

28

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

4шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

192-21

LOCK WASHER,3/8"

2шт.

31

A75648

SPARE PART Tube support

1шт.

32

A75649

CLAMP - tube support

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

34

132-307

COTTER PIN,1/4" x 1 3/4"

4шт.

38

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

Bulkhead branch (3/4" tube O.D.)

1шт.

39

A75641

SPARE PART Return

1шт.

40

A75792

HOSE

Pump to return (23") (Used w/or w/o PTO

1шт.

41

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, adjustable, Incl. Ref. 42

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
