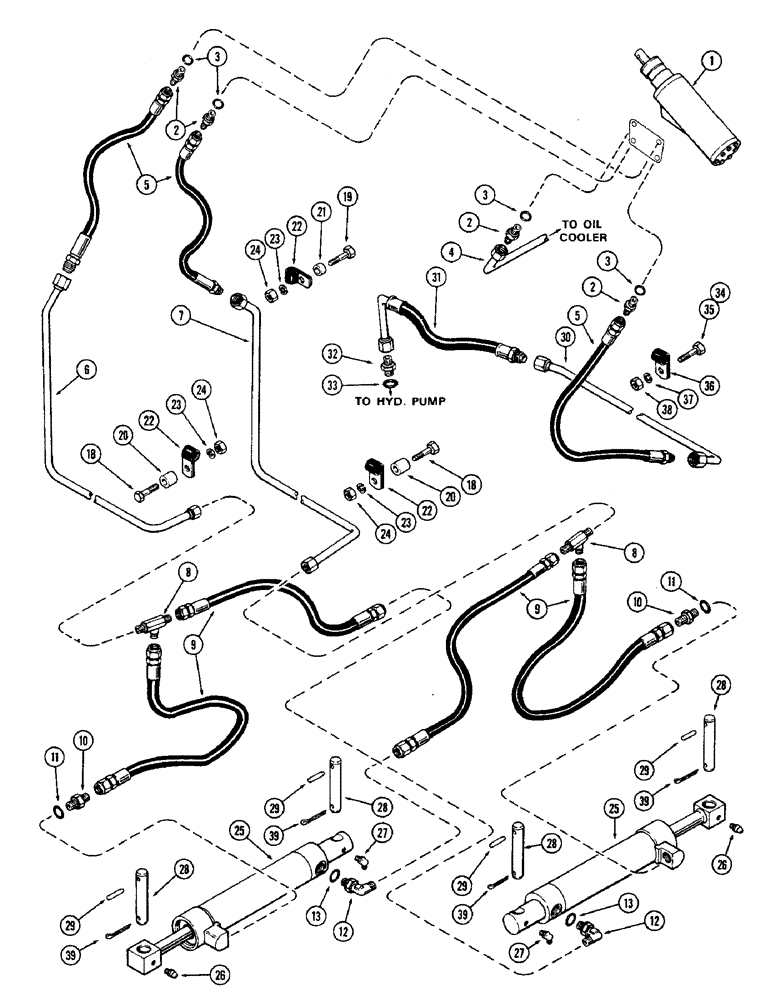

Запчасти Case IH 2470 (090) - FRONT HYDRAULIC STEER (05) - STEERING

1

A76910

VALVE

ASSY. - front steering (Repl. A75353) (See figure 94)

1шт.

2

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - male, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

A76211

TUBE

Valve to cooler (See figure 12)

1шт.

5

L12183

HOSE,0.38" ID x 17.50", SAE 100R1

Steering Valve

3шт.

6

A76212

TUBE

Steering cylinder (RH)

1шт.

7

A76213

TUBE

Steering cylinder (LH)

1шт.

8

218-594

TEE,3/4"-16, 37 Degree

Tube union (1/2 x 1/2 x 1/2")

2шт.

9

A75624

HOSE

Steering cylinder (20")

4шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Assy - straight, Incl. Ref 11

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Includes Ref. 13

2шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

19

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

20

A76093

BUSHING

SPACER - lower (13/32 x 3/4 x 1/2")

3шт.

21

F65306

SPARE PART Upper (1/2 x 3/4 x 1")

1шт.

22

49838

CLAMP

Tube

6шт.

23

192-21

LOCK WASHER,3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

25

REF

INSTRUCTION

CYLINDER ASSY - steering (Order from figure 98)

2шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

28

A75640

PIN

Steering cylinder

4шт.

29

135-764

GROOVED PIN,1/4" x 1 1/2", Type E

4шт.

30

A76209

TUBE

Pump to front steering

1шт.

31

A75625

HOSE

SPARE PART Pump to front steering

1шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Assy - straight, Incl. Ref 33

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

(Taptite)

1шт.

36

49838

CLAMP

Tube

2шт.

37

192-21

LOCK WASHER,3/8"

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

39

132-307

COTTER PIN,1/4" x 1 3/4"

4шт.
