Запчасти Case IH 2470 (086) - REAR STEER CONTROL LINKAGE (05) - STEERING

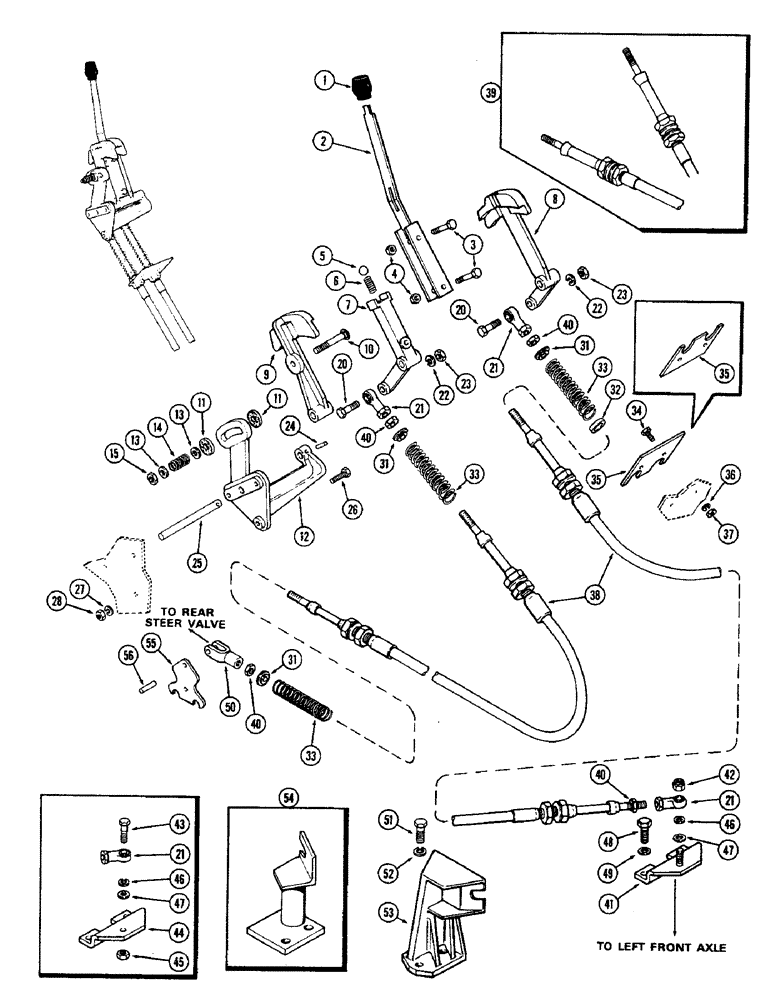

Схема запчастей Case IH 2470 - (086) - REAR STEER CONTROL LINKAGE (05) - STEERING
35
40
21
48
4
20
51
25
46
9
46
8
21
36
55
28
52
1
44
20
21
6
24
33
5
45
23
47
33
49
43
22
39
34
42
56
22
54
38
7
3
15
40
33
21
32
37
10
2
27
31
35
40
23
14
13
11
41
12
47
40
50
31
31
11
53
26
13

Артикул

Название

Примечание

Количество

1

A65699

KNOB

- steering lever, w/brass insert (Replaced A23885)

1шт.

2

A75618

LEVER

- rear steering

1шт.

3

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

4

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C. hex.)

2шт.

5

211-13

BALL,1/2" Dia

- detent (chrome steel) 1/2" Dia

1шт.

6

A23082

SPRING

- detent (1-11/16" free length)

1шт.

7

A75622

ARM

- control, rear steering

1шт.

8

A75621

ARM

- actuating, rear steering

1шт.

9

A75623

ARM

- brake, rear steering

1шт.

10

111-313

SCREW

BOLT - carriage (3/8 x 2-3/4")

1шт.

11

A61069

DISC

- friction

2шт.

12

A75616

SUPPORT

- rear steering lever

1шт.

13

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

14

A75454

SPRING

- brake

1шт.

15

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C. hex.)

1шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

A75602

END

BALL JOINT - rod end, steering cable

3шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

25

A75617

SHAFT

- rear steering lever

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

31

A75606

WASHER - cable spring

3шт.

32

A76128

SPACER - cable spring

1шт.

33

A76129

SPRING - steering cable (6-21/32" free length)

3шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

35

A75933

BULKHEAD - rear steering firewall (See note)

1шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

38

A76267

CABLE

- steering (87") (1st used trac. ser. no. 8711832)

2шт.

39

A75604

CABLE

ASSY. - steering (85") (Used prior to tractor serial no. 8711832) (Order A76267)

2шт.

40

129-123

NUT,3/8"-24, G5

4шт.

41

A76257

PLATE - front axle steering (1st used trac. S/N 8692636)

1шт.

42

131-52

NUT,3/8"-16, GC

NUT - lock (3/8" hex. Esna) (1st used trac. ser. no. 8692636)

1шт.

43

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Used prior to tractor S/N 8692636) Hex, 3/8"-16 x 1 1/2", G5

1шт.

44

A75600

PLATE - front axle steering (Used prior to tractor ser. no. 8692636) (Order A76257)

1шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Used prior to tractor S/N 8692636) 3/8"-16, G5

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

47

195-525

WASHER,3/8", SAE

- (13/32 x 13/16 x 16 ga.)

1шт.

48

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

49

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

50

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - steering cable

1шт.

51

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

52

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

53

A76319

SUPPORT

BULKHEAD - front axle (1st used trac. ser. no. 8713026)

1шт.

54

A76261

SUPPORT

BULKHEAD - front axle (Replaced A75603) (Used prior to tractor ser. no. 8713026)

1шт.

55

A75608

LEVER - steering valve, upper half

2шт.

56

138-174

LOCK PIN,3/8" x 1 1/2", Slotted

PIN, 3/8" x 1 1/2", Slotted

1шт.

Выбрано товаров: 50
