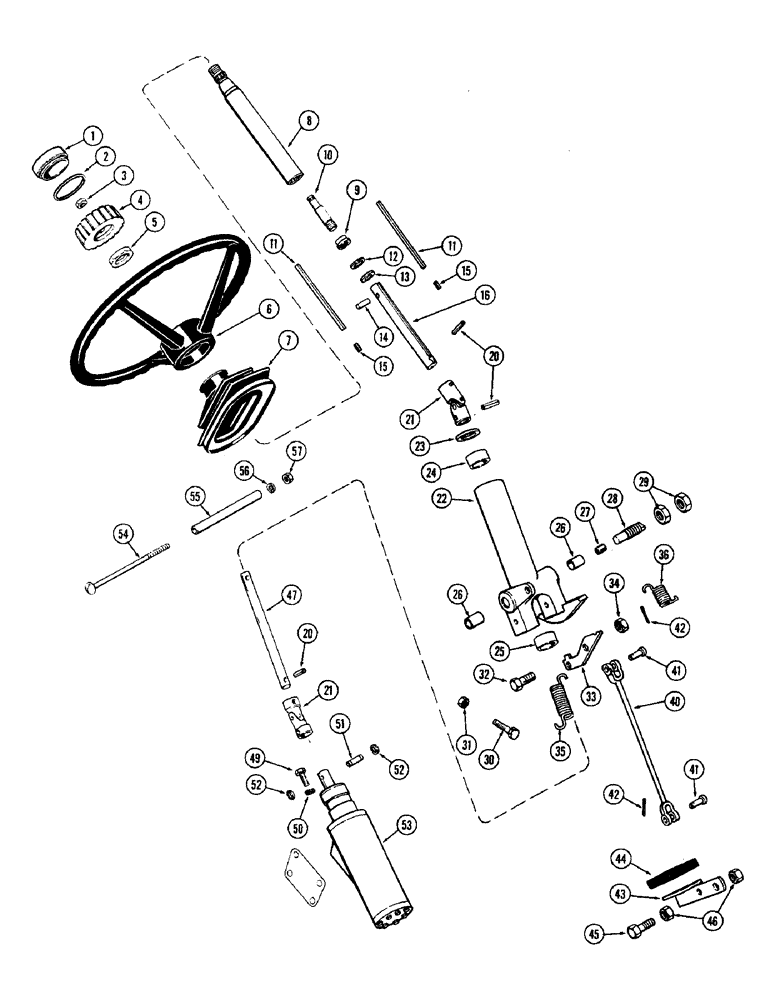

Запчасти Case IH 2470 (084) - TILT AND TELESCOPIC STEERING (05) - STEERING

1

A62210

PLUG

MEDALLION - steering wheel lock knob

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - retaining, medallion

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

1шт.

4

A61293

KNOB

- lock, steering wheel

1шт.

5

A14567

JAM NUT

- (13/16" N.F. hex.), Serial Range: wheel-shaft

1шт.

6

A65544

STEERING WHEEL

(Replaced A61007)

1шт.

7

A61910

BOOT

- rubber

1шт.

8

A63681

SHAFT

- steering, outer

1шт.

9

A63684

LOCK NUT

- steering lock (1/2" - 13 N.C. special, L.H. thread)

1шт.

10

A63683

SHAFT

- steering, telescopic lock

1шт.

11

A63686

KEY

- steering lock

2шт.

12

A63688

FRICTION WASHER

- friction lock retainer

1шт.

13

A58116

RING

- snap, internal

1шт.

14

A63685

PIN

- stop

1шт.

15

A63687

LOCK

- friction

2шт.

16

A63697

SHAFT

- steering, inner

1шт.

20

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

3шт.

21

A63689

JOINT

JOIN - universal

2шт.

22

A76204

SHAFT ASSY.

COLUMN ASSY. - tilt steering, Includes: Ref. 23 - 26

1шт.

23

A61736

WIPER SEAL

- wiper

1шт.

24

A76206

BUSHING

- upper (1-3/8 x 1-3/4 x 1")

1шт.

25

A76207

BUSHING

- lower (1-1/4 x 1-3/4 x 1")

1шт.

26

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column stud (1/2 x 5/8 x 1")

2шт.

27

A59842

BUMPER

SNUBBER - pivot, steering column

2шт.

28

A59163

STUD

- steering column pivot

2шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

- (5/8" N.C. hex., jam)

4шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Steering column stop Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

31

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Latch to plate Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

33

A64338

LATCH

- tilt steering

1шт.

34

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

1шт.

35

A63690

SPRING

- tilt return (2-5/32" free length)

1шт.

36

A64125

SPRING

- tilt latch (1-7/64" free length)

1шт.

40

A64126

ROD

- tilt latch

1шт.

41

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

42

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

43

A64127

PEDAL

- tilt steering

1шт.

44

A75351

SKID/SHOE

PAD - tilt pedal

1шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

46

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

47

A76208

SHAFT

- steering valve to steering shaft

1шт.

49

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

50

92-5

LOCK WASHER,5/16"

4шт.

51

A64000

PIN,9.42mm OD x 38.1mm L

- steering valve shaft

1шт.

52

A27795

RING

"E" RING - steering valve pin

2шт.

53

A76910

VALVE

PUMP ASSY. - front steering control (Replaced A75353) (See figure 94)

1шт.

54

115-107

BOLT,Hex, 5/16" - 18 x 7", Gr 5

- (5/16 x 7" N.C. rd. hd.)

2шт.

55

A76203

BUSHING

SPACER - steering column

2шт.

56

92-5

LOCK WASHER,5/16"

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.
