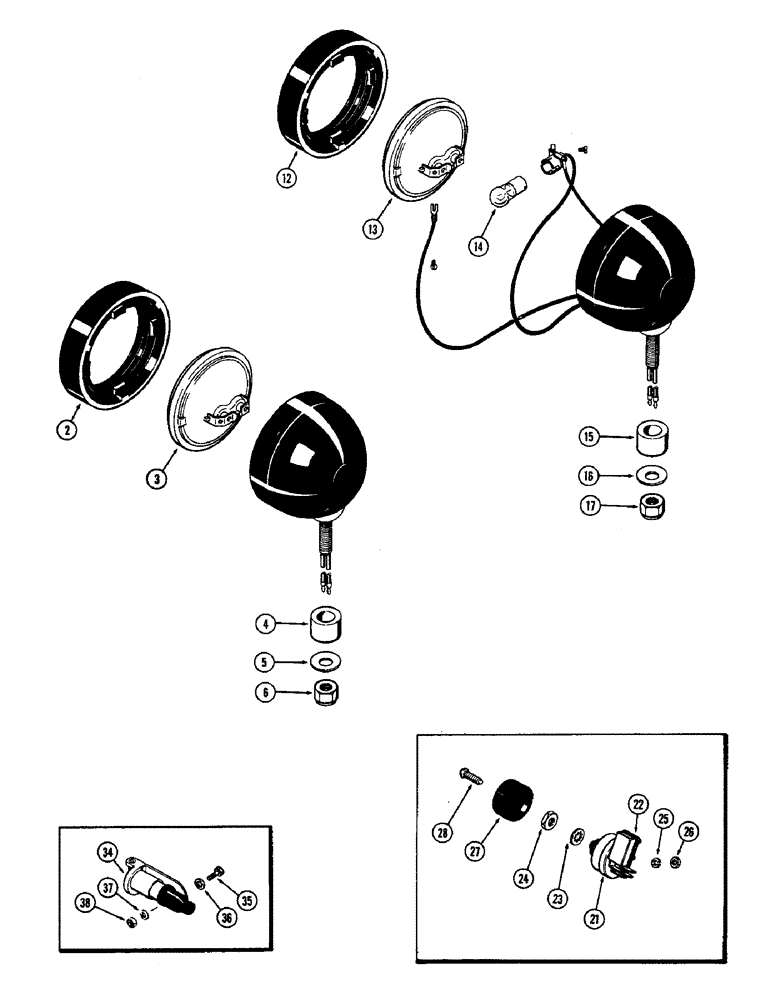

Запчасти Case IH 2470 (082) - ADJUSTABLE REAR FLOOD LAMP, RIGHT HAND SIDE (04) - ELECTRICAL SYSTEMS

A63823

LAMP

ATTACHMENT - rear flood lamp, R.H., Includes: Ref. 2 - 6

1шт.

A63822

HEADLIGHT

LAMP - flood adjustable, Includes: Ref. 2 - 4

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43639

LAMP

BULB - sealed beam

1шт.

4

D37048

BUSHING

- pivot, lamp mounting

1шт.

5

D37049

WASHER

- wave, tail lamp mounting

1шт.

6

129-125

NUT,1/2"-20, G5

1шт.

A59703

LAMP

- rear flood & tail, L.H., Includes: Ref. 12 - 15

1шт.

12

A25213

RETAINER

- sealed beam, rear flood & tail lamp L.H. side

1шт.

13

A42295

BULB

- sealed beam, rear flood & tail lamp L.H. side

1шт.

14

B50223

BULB

- lamp, rear flood & tail lamp L.H. side

1шт.

15

D37048

BUSHING

- pivot, lamp mounting, rear flood & tail L.H. side

1шт.

16

D37049

WASHER

- wave, tail lamp mounting, rear flood L.H. side

1шт.

17

129-125

NUT,1/2"-20, G5

Rear flood & tail lamp, LH side 1/2"-20, G5

1шт.

21

A64499

SWITCH

ASSY. - light, Includes: Ref. 22

1шт.

22

A43658

BREAKER

- circuit, light switch assemby

1шт.

23

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int., light switch assemby

1шт.

24

A20467

NUT

- light switch lock, assembly

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch assemby #10

2шт.

26

129-37

NUT,#10-32

Light switch assemby #10-32

2шт.

27

A59695

KNOB

- light switch assembly

1шт.

28

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob, assemby

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, rear auxiliary, Includes: Ref. 34 - 38

1шт.

34

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet

1шт.

35

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10 x 5/8" N.F. hex., mach., rear auxiliary outlet socket

2шт.

36

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16" rear auxiliary outlet socket

2шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet socket #10

2шт.

38

129-37

NUT,#10-32

Rear auxiliary outlet socket #10-32

2шт.
