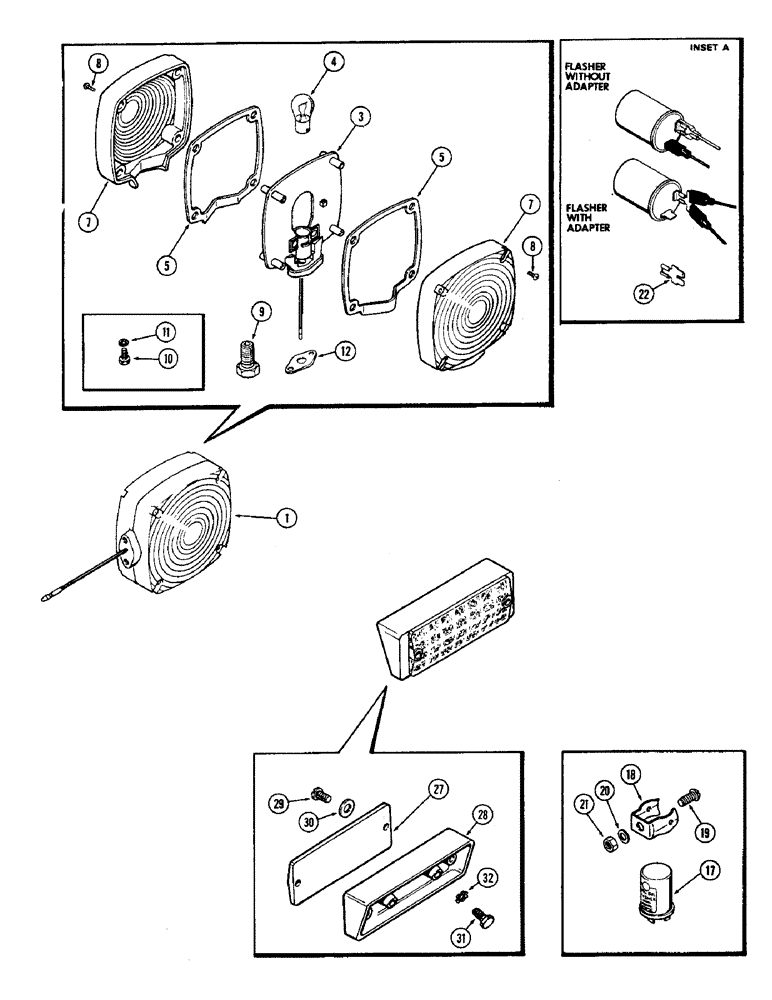

Запчасти Case IH 2470 (076) - FLASHER LAMP (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP KIT - flasher, Includes: Ref. 3 - 17

2шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order A44201)

1шт.

4

A41264

BULB,#1156, 12V

1шт.

5

A43731

GASKET

- lens

2шт.

A44202

KIT

- lens replacement, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - (Order A44202)

2шт.

8

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - lens (#8-32 x 5/8" slotted Phillips hd.)

8шт.

9

A43865

STUD - drilled (Not used this application)

1шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- (1/4 x 1/2" N.C. hex.) (Lamp to cab)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

F63435

GASKET

- base

1шт.

17

A65550

FLASHER UNIT

FLASHER - element (Replaced A34867)

1шт.

18

A34869

BRACKET

- mounting, flasher element

1шт.

19

75-56

SCREW - (5/16 x 3/8" N.C. rd. hd.)

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

A34862

KIT

ADAPTER KIT - flasher by-pass (Required for steady light) (See inset A)

1шт.

27

A62415

REFLECTOR

- red

2шт.

28

A62416

BRACKET

- reflector

2шт.

29

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - (#10 x 5/8" rd. hd. self tap), reflector

4шт.

30

195-512

WASHER,#10

- (7/32 x 7/16 x 1/16"), reflector

4шт.

31

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - (1/4 x 5/8" hex. hd. self-tap), reflector

4шт.

32

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. teeth Shakeproof), reflector

4шт.
