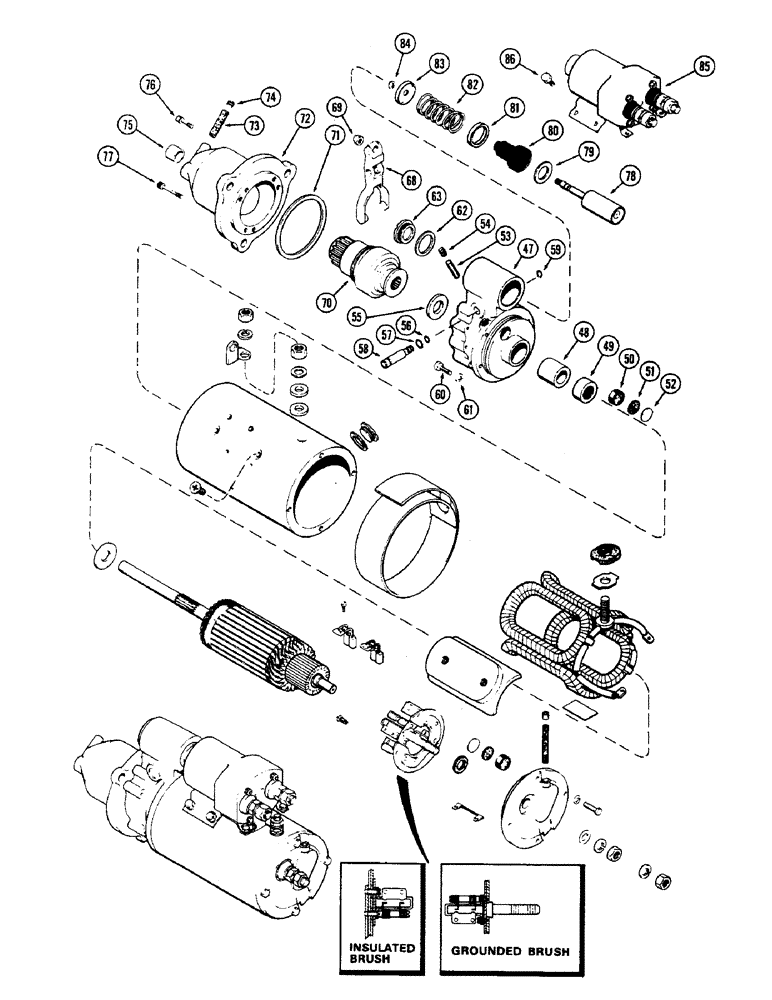

Запчасти Case IH 2470 (070) - STARTER, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A75864

STARTING MOTOR

STARTER ASSY. - , Includes: Ref. 47 - 86 and Ref. 2 - 42 on Figure 68

1шт.

87297380

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

47

A43367

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 48 - 55

1шт.

48

R21580

BUSHING

BUSHING - shift lever housing

1шт.

49

R21582

OIL SEAL

SEAL - oil, 13/16 x 1-3/8 x 13/32"

1шт.

50

A41923

PLUG

PLUG - oil reservoir, 15/16" dia. felt

1шт.

51

A41973

GASKET

GASKET - plug

1шт.

52

41-57

PLUG,Exp, 1 1/32"

PLUG - oil reservoir, 1-1/32" exp.

1шт.

53

R15023

WICK

WICK - oil, 5/16 x 2" felt

1шт.

54

221-1041

PLUG

PLUG - oil wick hole

1шт.

55

R15145

DISC

WASHER - brake

1шт.

56

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (15/64 x 3/8 x 1/16")

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (23/64 x 1/2 x 1/16")

1шт.

58

A42199

PIN

STUD - shift lever pivot

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud retaining #37, Ext

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

A41924

GASKET

GASKET - plug

1шт.

63

R21587

PLUG

PLUG - shift lever housing

1шт.

68

D32547

LEVER

LEVER ASSY. - shifter

1шт.

69

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to lever

1шт.

70

A42397

DRIVE

DRIVE ASSY. - Bendix

1шт.

71

R21562

GASKET

GASKET - drive end housing

1шт.

72

A44168

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 73 - 75

1шт.

73

R15023

WICK

WICK - oil, 5/16 x 2" felt

1шт.

74

221-1041

PLUG

PLUG - oil wick hole

1шт.

75

A40893

BUSHING

BUSHING - 5/8 x 3/4 x 25/32"

1шт.

76

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing (5/16 x 55/64" N.C. special)

1шт.

77

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end housing (5/16 x 1-1/2" N.C. special)

5шт.

78

A42309

PLUNGER

PLUNGER - solenoid core

1шт.

79

A41922

WASHER

SEAT - boot

1шт.

80

A42308

BOOT

BOOT - plunger

1шт.

81

A43380

BACK-UP RING

SEAT - spring, solenoid end

1шт.

82

A41242

SPRING

SPRING - plunger return

1шт.

83

A43419

SEAT

SEAT - spring, lever end

1шт.

84

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

85

A25430

SOLENOID

SOLENOID ASSY. - (See figure 72)

1шт.

86

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid mounting

4шт.
