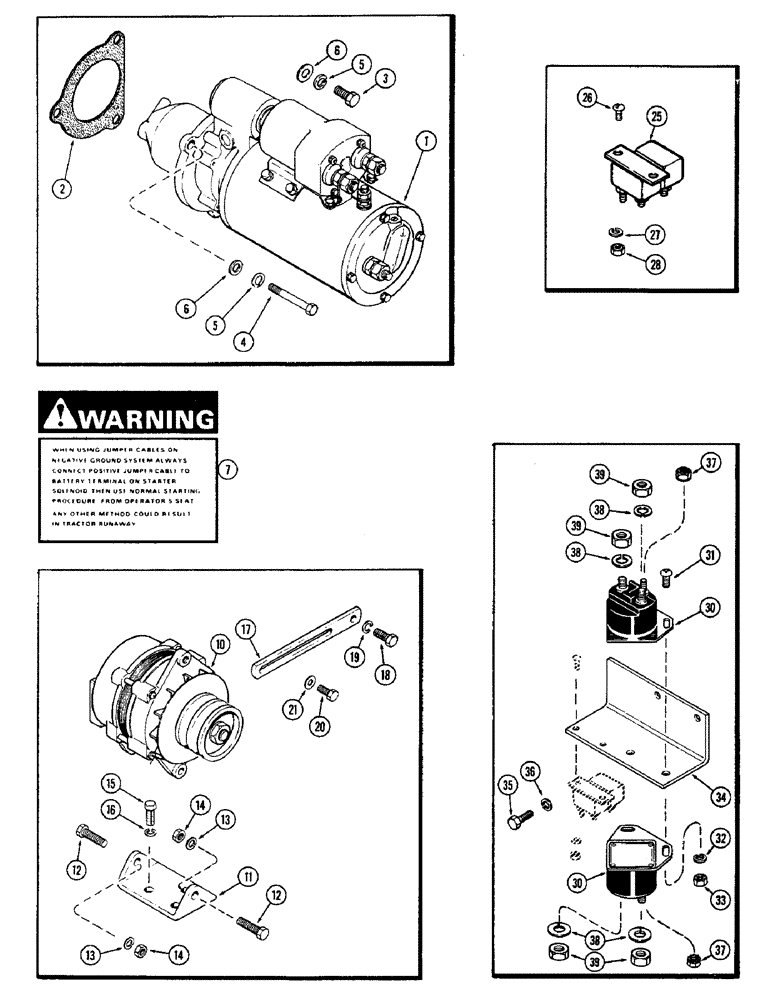

Запчасти Case IH 2470 (066) - ELECTRICAL EQUIPMENT MOUNTING, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A75864

STARTING MOTOR

(See figures 68 & 70)

1шт.

2

A27933

GASKET

Starting motor

1шт.

3

113-2405

SCREW

BOLT - (1/2 x 2" N.C. hex., Jay Lock)

2шт.

4

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

5

192-23

LOCK WASHER,1/2"

3шт.

6

A75865

WASHER

(17/32 x 1 x 1/8")

3шт.

7

321-2788

DECAL

Warning, jumper cables

1шт.

10

REF

INSTRUCTION

ALTERNATOR ASSY. - (See figure 74)

1шт.

11

A61063

BRACKET

Alternator mounting

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A59167

STRAP

Alternator adjusting

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

192-21

LOCK WASHER,3/8"

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

21

195-521

WASHER,5/16", SAE

Plain (11/32 x 11/16 x 1/16")

1шт.

25

A59704

BREAKER

Circuit

1шт.

26

173-276

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

Machine (#8 x 3/4" N.C. rd. hd.)

2шт.

27

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

2шт.

28

129-16

NUT,#8-32

2шт.

30

A39079

SOLENOID

Manifold heater & starter

1шт.

31

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

34

A75835

BRACKET

Solenoid mounting

1шт.

35

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

37

193-1000

NUT,Keps, w/LW,#10-32

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

1шт.
