(063A) - A44800 TRANSMISSION TEMPERATURE LIGHT KIT, 504BDT DIESEL ENGINE, USED PRIOR TO TRACTOR S/N 8713314

Запчасти Case IH 2470 (063A) - A44800 TRANSMISSION TEMPERATURE LIGHT KIT, 504BDT DIESEL ENGINE, USED PRIOR TO TRACTOR S/N 8713314 (04) - ELECTRICAL SYSTEMS

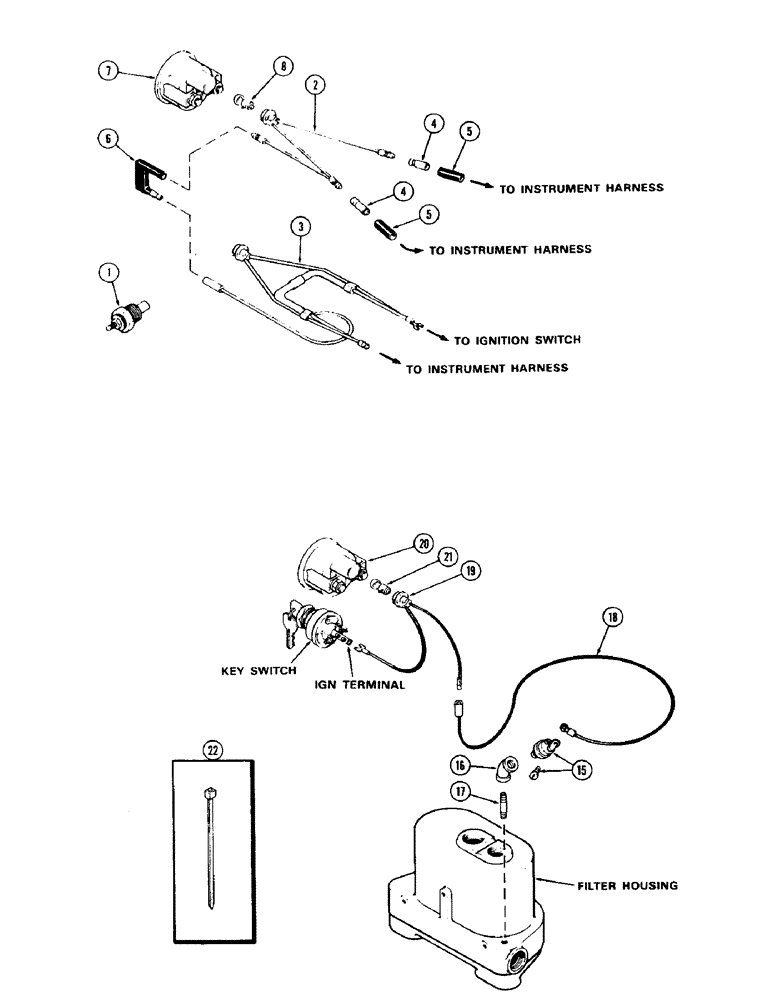

Схема запчастей Case IH 2470 - (063A) - A44800 TRANSMISSION TEMPERATURE LIGHT KIT, 504BDT DIESEL ENGINE, USED PRIOR TO TRACTOR S/N 8713314 (04) - ELECTRICAL SYSTEMS
7
1
18
19
16
21
4
6
4
20
5
3
15
2
8
17
22
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A44800

ASSEMBLY

KIT - trans. temp. warning light, Includes: Ref. 1 - 8

1шт.

1

A135001

SWITCH

- temperature sender

1шт.

2

A135027

SOCKET

- trans. temp. lamp

1шт.

3

A135028

SOCKET

- alternator warning lamp

1шт.

4

223-185

SLEEVE

- terminal (.156" dia.)

2шт.

5

223-85

INSULATOR

INSULATION - terminal sleeve

2шт.

6

A61504

DIODE

- trans. temp. lamp

1шт.

7

A135002

CASE

- trans. temp. lamp

1шт.

8

A14553

BULB

- trans. temp. lamp (Clear)

1шт.

A44738

KIT

- hyd. press. warning lamp, A44738 light kit, Includes: Ref. 15 - 22

1шт.

15

A76479

SWITCH

- pressure, A44738 hyd. filter press light kit

1шт.

16

221-1365

ELBOW,45 Degree, 1/8" NPT

- 1/8" P.T. x 45 degree street, A44738 hyd. filter press light kit

1шт.

17

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

NIPPLE - 1/8" P.T. x 2-1/2", A44738 hyd. filter press light kit

1шт.

18

A76413

WIRE - switch to socket, A44738 hyd. filter press light kit

1шт.

19

A76414

SOCKET - lamp, A44738 hyd. filter press light kit

1шт.

20

A76411

TRANSMISSION

CASE - warning lamp, A44738 hyd. filter press light kit

1шт.

21

A14553

BULB

- warning lamp (Clear), A44738 hyd. filter press light kit

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire tie-down, A44738 hyd. filter press light kit

1шт.
