(062) - BATTERY, CABLES, BATTERY BOX AND COVERS, 504BDT DIESEL ENGINE

Запчасти Case IH 2470 (062) - BATTERY, CABLES, BATTERY BOX AND COVERS, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

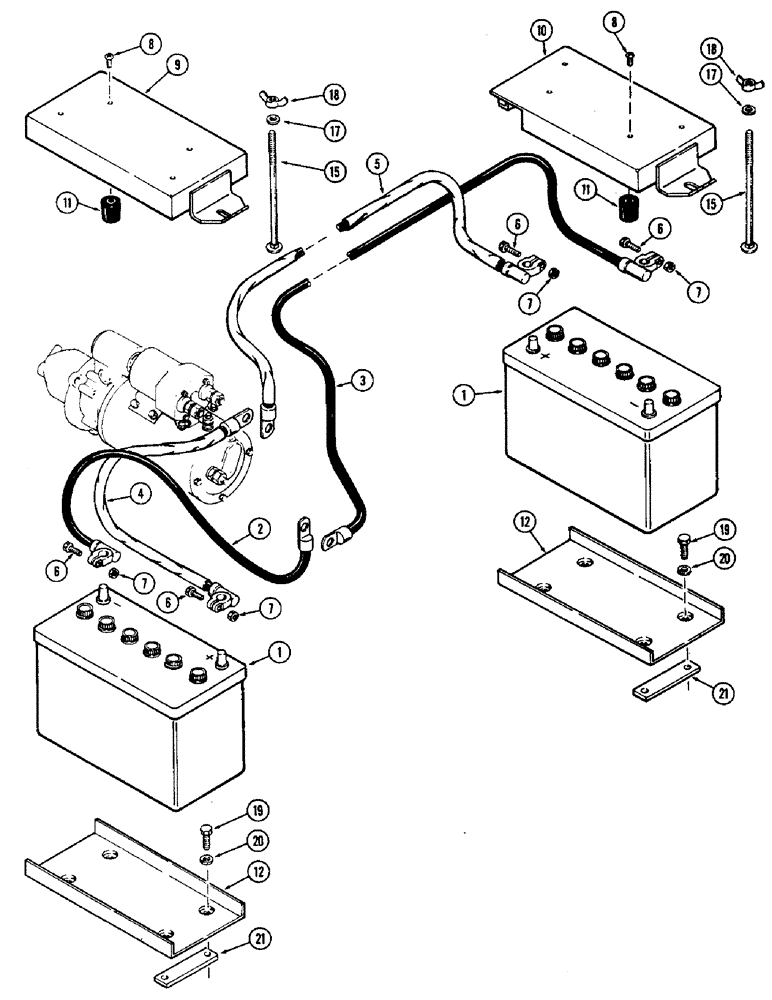

Схема запчастей Case IH 2470 - (062) - BATTERY, CABLES, BATTERY BOX AND COVERS, 504BDT DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
7
6
7
18
10
2
17
6
11
1
19
4
12
3
8
17
1
11
21
21
6
20
7
9
5
8
7
19
18
6
15
15
20
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A39177

X

BATTERY - (12 volt) (Wet) (Order A38411)

2шт.

1

A38411

DRY BATTERY

- (12 volt) (Dry)

2шт.

2

A75818

CABLE

ASSY. - battery, negative (R.H.) (31-1/2" long) (Incl. Refs. 6 & 7)

1шт.

3

A75819

CABLE

ASSY. - battery, negative (L.H.) (73" long) (Incl. Refs. 6 & 7)

1шт.

4

A75820

CABLE

ASSY. - battery, positive (R.H.) (40-1/2" long) (Incl. Refs. 6 & 7)

1шт.

5

A75821

CABLE

ASSY. - battery, positive (L.H.) (46" long), Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- (5/16 x 1-3/8" N.C. sq. hd.)

1шт.

7

129-516

NUT

- shoulder (5/16" N.C. hex.)

1шт.

8

175-454

SCREW,Phil Truss Hd, 1/4" - 20 x 3/8"

- (1/4 - 20 x 3/8" Phillips hd.)

8шт.

9

A76440

COVER

- battery, R.H. (Replaces A75842)

1шт.

10

A76441

COVER

- battery, L.H. (Replaces A75843)

1шт.

11

A75847

FENDER

BUMPER - screw type

8шт.

12

A75848

CARRIER

- battery

2шт.

15

111-252

CARRIAGE BOLT,Short NK, 5/16"-18 x 9 1/2", G2

BOLT - (5/16 x 9-1/2" N.C. rd. hd. sq. neck)

4шт.

17

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

12шт.

18

G49020

NUT

- wing (5/16" N.C.)

4шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

A75849

SPACER

- carrier

4шт.
