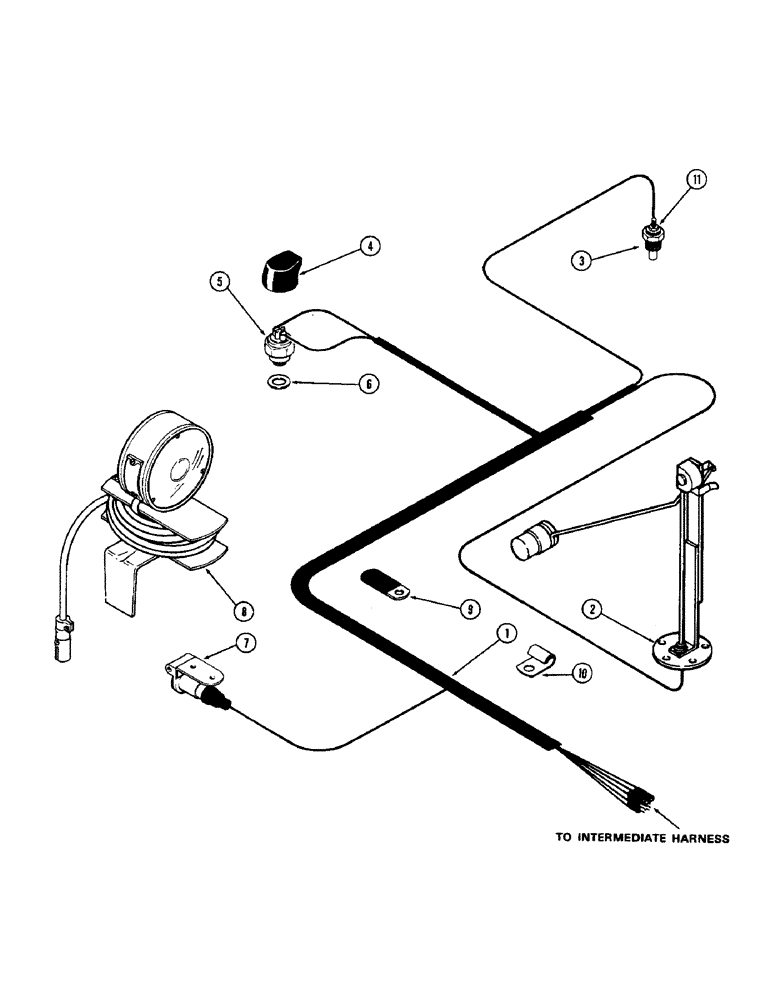

Запчасти Case IH 2470 (061A) - ELECTRICAL EQUIPMENT AND WIRING, 504BDT DIESEL ENG., TRANS. HARNESS, USED PRIOR TO TRAC. S/N 8713314 (04) - ELECTRICAL SYSTEMS

1

A75839

HARNESS - wire, transmission

1шт.

2

A75880

UNIT

SENDING UNIT - fuel level (12 volt)

1шт.

3

A21462

SENDER UNIT

SENDING UNIT - trans. temperature

1шт.

4

A20991

BOOT

- neutral start switch

1шт.

5

A20990

SWITCH

- safety, neutral start

1шт.

6

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

7

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet (See figure 82)

1шт.

8

A11066M

LAMP ASSY. - warning (See figure 78)

1шт.

9

A37179

CLIP

- vinyl coated bendable type

1шт.

10

A22880

CLIP

- vinyl coated bendable type (17/32" hole)

2шт.

10

A38066

CLIP

- vinyl coated bendable type (11/16" hole)

1шт.

11

129-661

NUT

- (#10-32 N.F. hex.) (Brass)

1шт.
