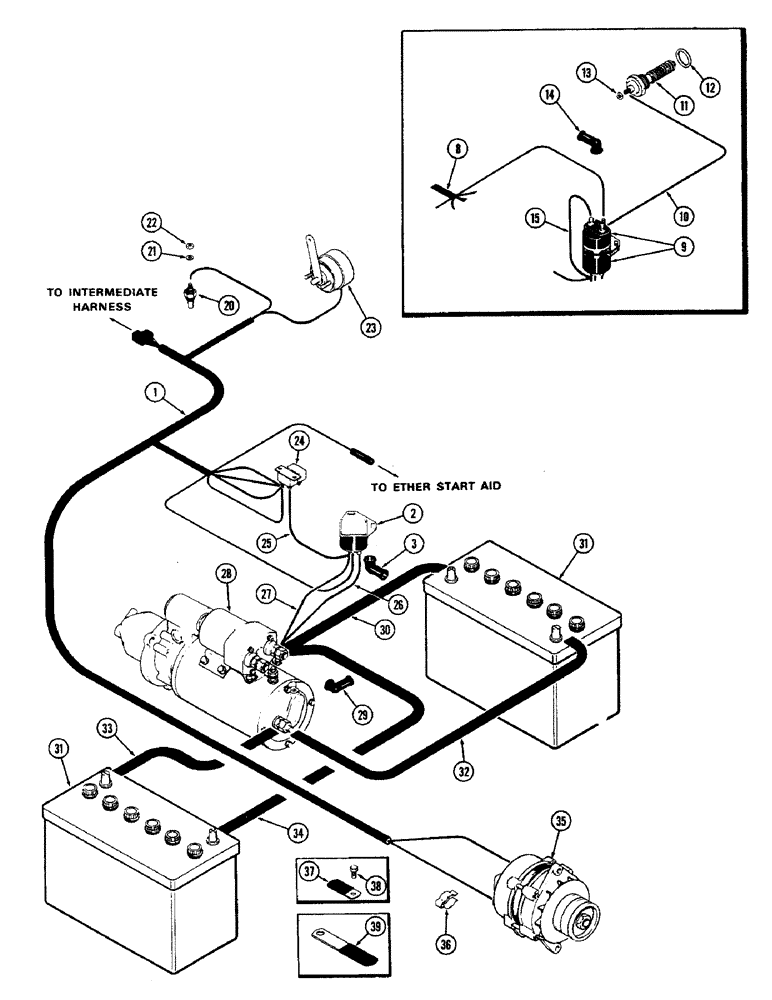

Запчасти Case IH 2470 (058) - ELECTRICAL EQUIPMENT AND WIRING, 504BDT DIESEL ENGINE, ENGINE HARNESS, FIRST USED ENGINE S/N 2529467 (04) - ELECTRICAL SYSTEMS

1

A76426

SPARE PART Wire, engine (1st used trac. S/N 8713314)

1шт.

1

A76347

SPARE PART Wire, engine (Used prior to trac. S/N 8713314)

1шт.

2

A39079

SOLENOID

Intermediate start (See figure 66)

1шт.

3

A21753

CAP

Rubber

1шт.

8

A75837

SPARE PART Wire, Used prior to engine S/N 2529467

1шт.

9

A39079

SOLENOID

Cold start & inter. starting (See fg. 66), Used prior to engine S/N 2529467

2шт.

10

A21483

CABLE

Heater solenoid to heater, Used prior to engine S/N 2529467

1шт.

11

A37775

HEATER

Manifold, Used prior to engine S/N 2529467

1шт.

12

A20916

MANIFOLD GASKET

Manifold heater, Used prior to engine S/N 2529467

1шт.

13

129-503

NUT,1/4"-20, Brass

Used prior to engine S/N 2529467

1шт.

14

A21753

CAP

Rubber, Used prior to engine S/N 2529467

1шт.

15

A75823

SPARE PART Solenoid to solenoid, Used prior to engine S/N 2529467

1шт.

20

A61787

TRANSMITTER

UNIT - sending, water temperature, Used prior to engine S/N 2529467

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

Used prior to engine S/N 2529467

1шт.

22

129-37

NUT,#10-32

Used prior to engine S/N 2529467

1шт.

23

A76189

NO LONGER SERVICED

SOLENOID - rotary (12 volt) (See page 47A for electric fuel shut- off mounting), Used prior to engine S/N 2529467

1шт.

24

A59704

BREAKER

Circuit (See figure 66), Used prior to engine S/N 2529467

1шт.

25

A75824

CABLE

Solenoid to circuit breaker, Used prior to engine S/N 2529467

1шт.

26

A75825

CABLE

Solenoid to starter, Used prior to engine S/N 2529467

1шт.

27

D47797

CABLE

Starter to solenoid, Used prior to engine S/N 2529467

1шт.

28

A75864

STARTING MOTOR

ASSY, (See figures 68 & 70), Used prior to engine S/N 2529467

1шт.

29

A21753

CAP

Rubber, Used prior to engine S/N 2529467

1шт.

30

A75821

CABLE

ASSY, Battery, positive (LH) (See figure 62), Used prior to engine S/N 2529467

1шт.

31

A38411

DRY BATTERY

(12 volt), Used prior to engine S/N 2529467

2шт.

32

A75819

CABLE

ASSY, Battery, negative (LH) (See figure 62), Used prior to engine S/N 2529467

1шт.

33

A75818

CABLE

ASSY, Battery, negative (RH) (See figure 62), Used prior to engine S/N 2529467

1шт.

34

A75820

CABLE

ASSY, Battery, positive (RH) (See figure 62), Used prior to engine S/N 2529467

1шт.

35

REF

INSTRUCTION

ALTERNATOR ASSY. - (See figure 74), Used prior to engine S/N 2529467

1шт.

36

A60894

CLIP

Alternator wires to engine breather, Used prior to S/N 2529467

4шт.

37

A37179

CLIP

Vinyl coated bendable type, Used prior to engine S/N 2529467

1шт.

38

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Used prior to engine S/N 2529467

1шт.

39

A22883

CLIP

Vinyl coated bendable type, Used prior to engine S/N 2529467

1шт.
