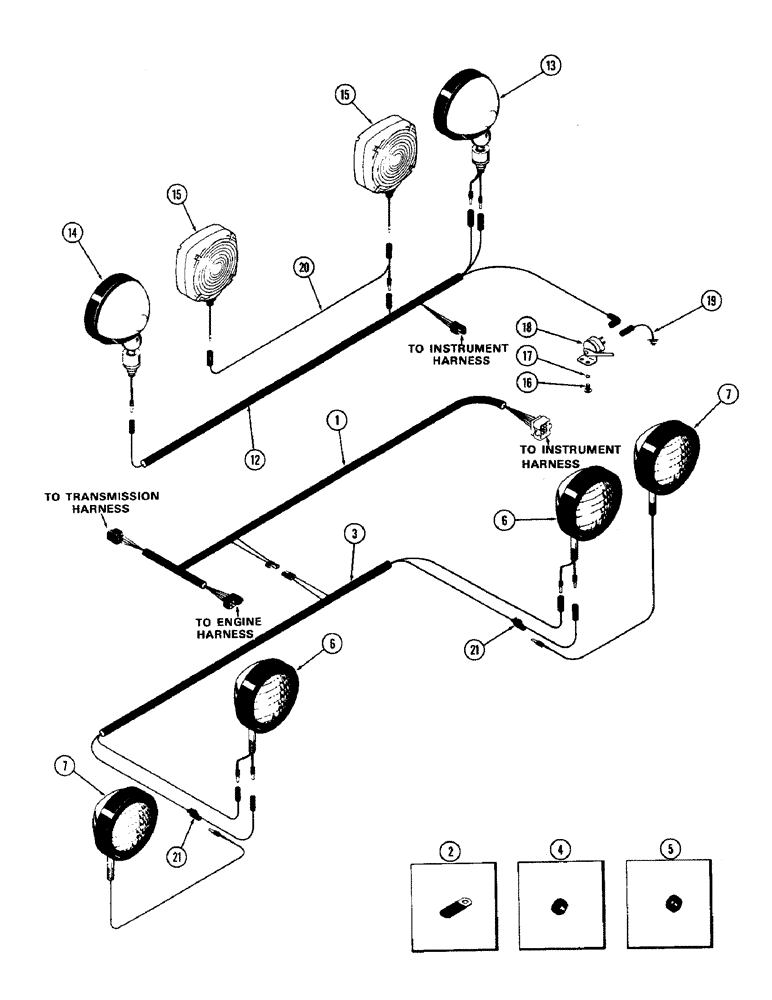

Запчасти Case IH 2470 (056) - ELECTRICAL EQUIPMENT & WIRING, 504BDT DIESEL ENG. INTERMEDIATE HARNESS, FRONT & REAR LAMP HARNESSES (04) - ELECTRICAL SYSTEMS

1

A76425

HARNESS - wire, intermediate (1st used trac. ser. no. 8713314)

1шт.

1

A75838

HARNESS - wire, intermediate (Used prior to trac. ser. no. 8713314)

1шт.

2

A37179

CLIP

- vinyl coated bendable type

5шт.

3

A76428

HARNESS - front lamps (1st used trac. ser. no. 8713314)

1шт.

3

A75840

HARNESS - front lamps (Used prior to trac. ser. no. 8713314)

1шт.

4

A27338

GROMMET

- front & rear light harness (In fenders)

4шт.

5

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- front & rear light harness (In cab)

4шт.

6

A75834

LAMP

ASSY. - front flood & drive (See figure 80)

2шт.

7

A59724

HEADLAMP

LAMP ASSY. - front adjustable flood (See figure 80)

2шт.

12

F63502

HARNESS - wire, rear lamps

1шт.

13

A59703

LAMP

ASSY. - rear flood & tail (L.H. side) (See figure 82)

1шт.

14

A63822

HEADLIGHT

LAMP ASSY. - rear flood (R.H. side) (See figure 82)

1шт.

15

F89713

INDICATOR LIGHT

LAMP ASSY. - flasher (Order A44201) (See figure 76)

2шт.

16

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- (#10-32 N.F. x 1/2 rd. hd.)

2шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

18

A33977

SWITCH

- lamp, hand brake

1шт.

19

A59711

ELECTRICAL WIRE

WIRE - ground, hand brake switch

1шт.

20

F63368

ELECTRICAL WIRE

WIRE -, Serial Range: flasher-harness

1шт.

21

A62556

CONNECTOR, ELEC

CONNECTOR - wire

2шт.
