Запчасти Case IH 2470 (055A) - INSTRUMENTS & WIRING, 504BDT DIESEL ENGINE, LOWER INSTRUMENTS, FIRST USED TRACTOR SERIAL NO. 8713314 (04) - ELECTRICAL SYSTEMS

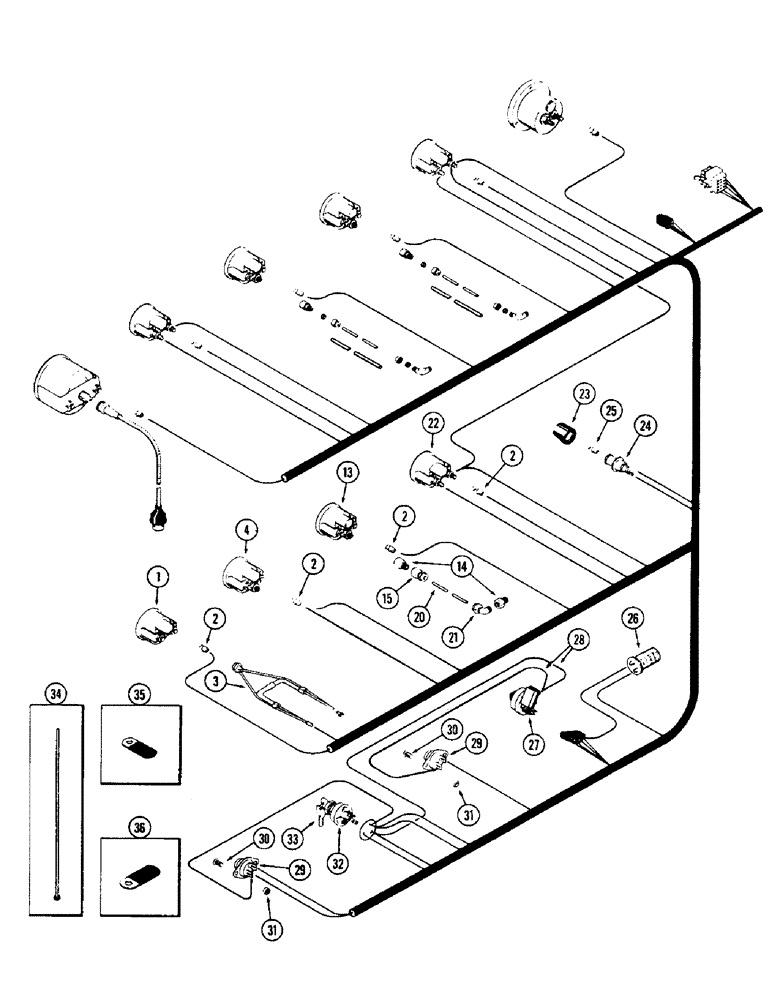

Схема запчастей Case IH 2470 - (055A) - INSTRUMENTS & WIRING, 504BDT DIESEL ENGINE, LOWER INSTRUMENTS, FIRST USED TRACTOR SERIAL NO. 8713314 (04) - ELECTRICAL SYSTEMS
23
14
29
21
26
29
30
33
3
27
36
2
2
20
2
1
15
25
32
35
34
31
28
24
2
22
4
30
13
31

Артикул

Название

Примечание

Количество

1

A59687

DIAL

CASE - alternator warning lamp

1шт.

2

A14553

BULB

- gauge (Clear)

4шт.

3

A76119

HOLDER

RECEPTACLE - alternator warning lamp wire & socket

1шт.

4

A76411

TRANSMISSION

GAUGE - trans. oil filter pressure

1шт.

13

A75827

ELECTRICAL GAUGE

GAUGE - fuel pressure

1шт.

14

A28061

FITTING

SNUBBER - fuel oil pressure gauge

2шт.

15

A76220

CONNECTOR - fuel pressure gauge tube

1шт.

20

A76221

TUBE - nylon, fuel pressure

1шт.

21

T39541

ELBOW

- fuel pressure gauge tube

1шт.

22

A59682

ELECTRICAL GAUGE

GUAGE - fuel level

1шт.

23

A62677

GUARD

SHROUD - hand brake warning lamp (Used prior to trac. ser. no. 8713090)

1шт.

24

A59689

LAMP

ASSY. - hand brake warning (Used prior to trac. ser. no. 8713090), Includes: Ref. 25

1шт.

25

A42296

BULB

- (12 volt flasher, red)

1шт.

26

A34867

FLASHER UNIT

- 12 volt (See figure 76)

1шт.

27

A64499

SWITCH

ASSY. - lights (See figure 82)

1шт.

28

A76429

ELECTRICAL WIRE

WIRE - ignition switch & start switch to light switch (Replaces A75833)

2шт.

29

A36948

SWITCH

- push button (Cold start & inter. start)

2шт.

30

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- maching (#10 x 1/2" rd. hd.)

4шт.

31

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - (#10 N.C. Keps)

4шт.

32

A75832

SWITCH

ASSY. - ignition

1шт.

33

A60319

KEY

- (Set of 2)

1шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

CLIP - nylon strap type

6шт.

35

A37179

CLIP

- vinyl coated bendable type

1шт.

36

A22883

CLIP

- vinyl coated bendable type

1шт.

Выбрано товаров: 24
