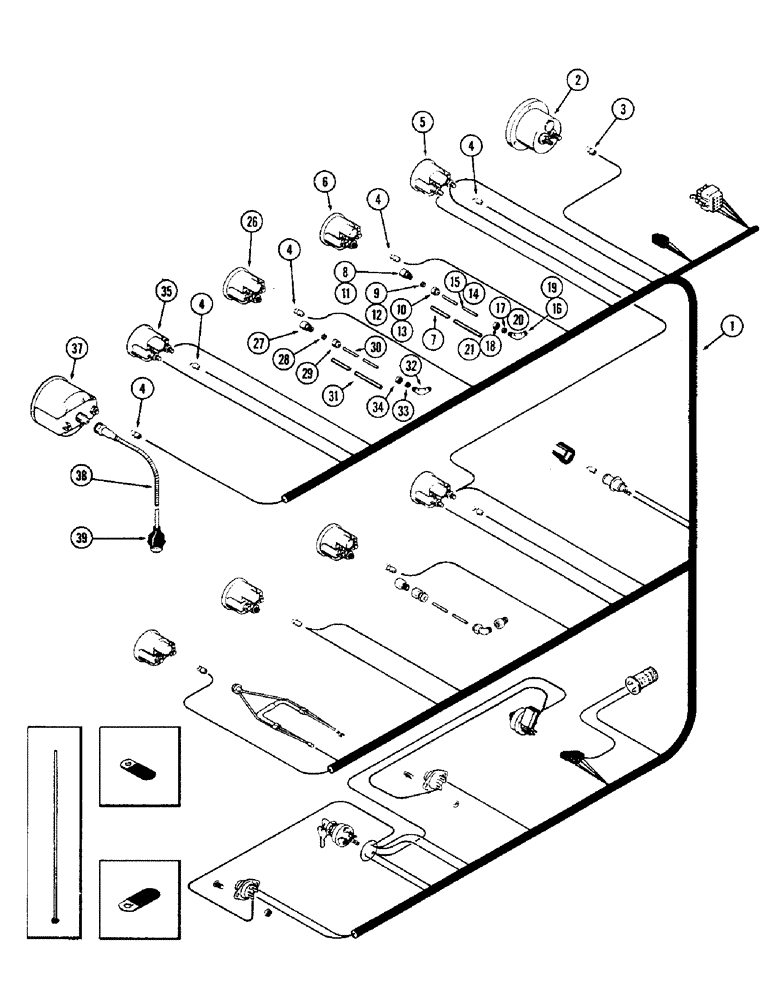

Запчасти Case IH 2470 (054) - INSTRUMENTS & WIRING, 504BDT DIESEL ENGINE, UPPER INSTRUMENTS, FIRST USED TRACTOR SERIAL NO. 8713314 (04) - ELECTRICAL SYSTEMS

1

A76424

HARNESS - wire, instrument panel (Replaced A75836 & A76255)

1шт.

2

T39216

KIT

GAUGE - pyrometer (See figure 64)

1шт.

3

T29381

BULB

- gauge (Pyrometer)

1шт.

4

A14553

BULB

- gauge (Clear)

5шт.

5

A61786

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

6

A62006

GAUGE

- engine oil pressure

1шт.

7

A59680

LOOM

- engine oil pressure tube

1шт.

8

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR - (3/16 x 1/8"), Includes: Ref. 9 and 10

1шт.

9

222-651

SLEEVE,3/16" Tube, Comp

1шт.

10

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (For 3/16" tube) 3/8"-24, 45º Fl, Comp

1шт.

14

A66386

TUBE

- engine oil pressure gauge (3/16" O.D.)

1шт.

16

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSY. - 90 degrees (3/16" tube), Includes: Ref. 17 and 18

1шт.

17

222-651

SLEEVE,3/16" Tube, Comp

1шт.

18

222-61

NUT - (For 3/16" tube)

1шт.

26

A59684

ELECTRICAL GAUGE

GAUGE - trans. oil pressure

1шт.

31

169-120

SCREW - machine (12-24 x 7/8" fill. hd. slotted)

1шт.

27

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSY. - (1/8" tube), Includes: Ref. 28 and 29

1шт.

28

222-100

TUBE NUT,1/8" Tube

SLEEVE - (For ) 1/8" Tube

1шт.

29

222-110

TUBE NUT,3/8"-24

NUT - (For 1/8" tube)

1шт.

30

A75828

TUBE

- trans. oil pressure gauge

1шт.

31

A75829

LOOM

- trans. oil pressure tube

1шт.

32

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 90 degrees (1/8" tube), Includes: Ref. 33 and 34

1шт.

33

222-100

TUBE NUT,1/8" Tube

SLEEVE - (For ) 1/8" Tube

1шт.

34

222-110

TUBE NUT,3/8"-24

NUT - (For 1/8" tube)

1шт.

35

A76469

ELECTRICAL GAUGE

GAUGE - trans. oil temperature (Replaced A64491) (Order A44800 kit) (See figure 63A)

1шт.

37

A75831

TACHOMETER

ASSY.

1шт.

38

A39403

CABLE

ASSY. - tachometer

1шт.

39

A24523

KIT

- tachometer cable repair

1шт.
