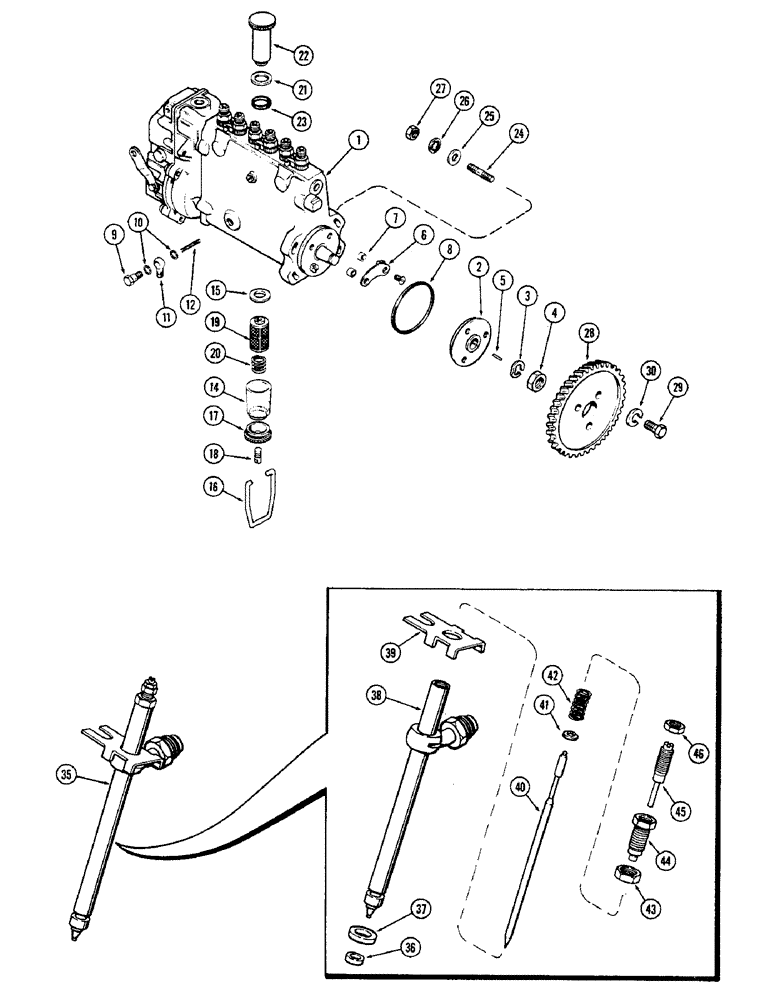

Запчасти Case IH 2470 (050) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A64643

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (2200 R.P.M.) Bosch #PES6A9SC420LS3007 Governor #EP/RSV375-1100A2B, Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer pump (Copper)

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand, Includes: Ref. 23

1шт.

23

A44761

GASKET

- hand primer (Rubber)

1шт.

24

A58689

STUD

- 3/8" N.C. x 1-7/8"

4шт.

25

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

28

A58693

GEAR

- injection pump drive

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

30

92-6

LOCK WASHER,3/8"

3шт.

35

A76193

NUT

NOZZLE ASSY. - fuel injection (Supplier's no. 20016 stamped on body), Includes: Ref. 36 - 46

6шт.

Whenever nozzle is removed from head, the seal, ref. no. 36 & washer, ref. no. 37, must be replaced before nozzle is installed back in head.

1шт.

A138323R

REMAN-INJECT NOZZLE

2470 (BEFORE S/N 8762940) (1/72-12/79), Reman for new PN A76193

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

36

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, fuel injection nozzle

1шт.

37

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, fuel injection nozzle

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A76193) (Part no. stamped on upper part of body) (Color coded red & white), fuel injection

1шт.

39

A41768

PLATE

- nozzle locating, fuel injection

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A76193), fuel injection

1шт.

41

A44369

SEAT

- spring (Replaces A41401), fuel injection nozzle

1шт.

42

A43601

SPRING

- nozzle pressure adjusting, fuel injection

1шт.

43

A42424

LOCK NUT

- lock, pressure adjusting screw, fuel injection nozzle

1шт.

44

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, fuel injection nozzle

1шт.

45

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, fuel injection nozzle

1шт.

46

A43602

NUT

LOCK NUT - lift screw, fuel injection nozzle

1шт.
