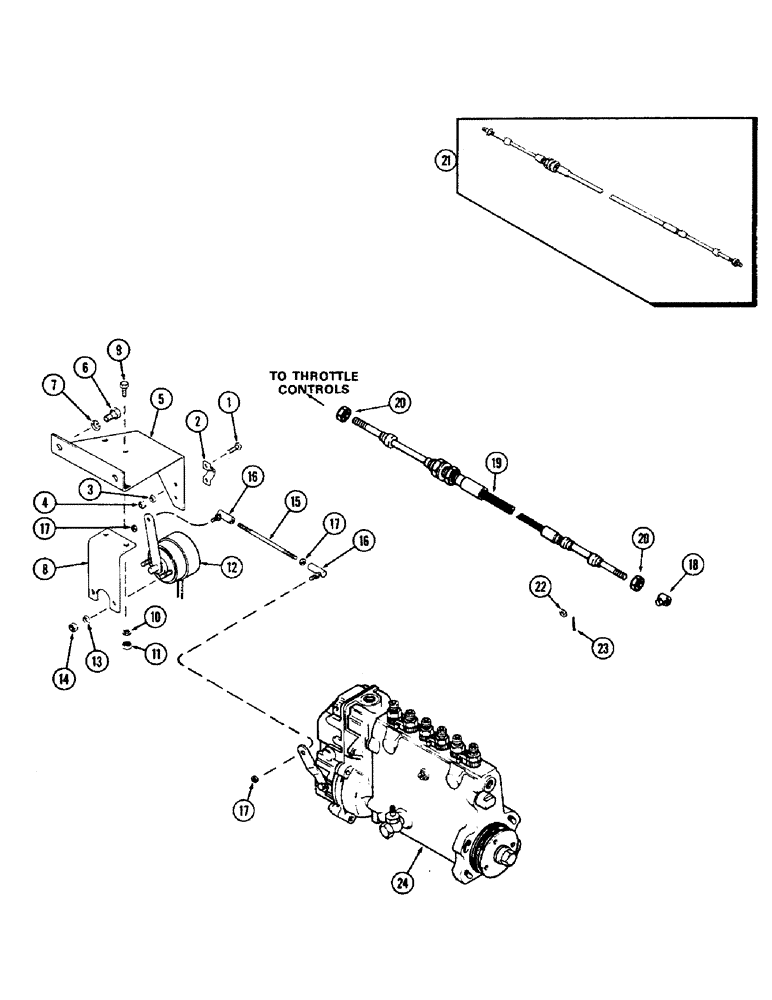

Запчасти Case IH 2470 (047A) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE, FUEL INJECTION PUMP CONTROLS (03) - FUEL SYSTEM

1

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- (#10-24 x 3/4" round head), Serial Range: clamp-plate

2шт.

2

A75815

CLAMP

- throttle cable

1шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

4

129-17

NUT,Hex, #10 - 24

NUT - ( hex.) #10-24

2шт.

5

A76371

PLATE - anchor, throttle cable (Replaced A75814)

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate to engine block Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

A76372

BRACKET

- solenoid mounting (Replaced A75816)

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Bracket to plate Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

A76189

NO LONGER SERVICED

SOLENOID - rotary, 12 volt

1шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Solenoid to bracket

2шт.

15

A64680

ROD - solenoid to injector pump

1шт.

16

A62901

BALL

JOINT - rod

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- (#10-32 hex., Keps)

3шт.

18

A75386

LINKAGE

PIVOT - throttle cable

1шт.

19

A76409

CABLE

- throttle control (68") (1st used tractor serial no. 8712343) (See figure 42)

1шт.

20

129-37

NUT,#10-32

2шт.

21

A75387

CABLE

- throttle control (68") (Used prior to tractor serial no. 8712343) (See figure 42)

1шт.

22

195-102

WASHER,1/4"

- ( plain) 1/4"

1шт.

23

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

24

A64643

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (See figure 50)

1шт.
