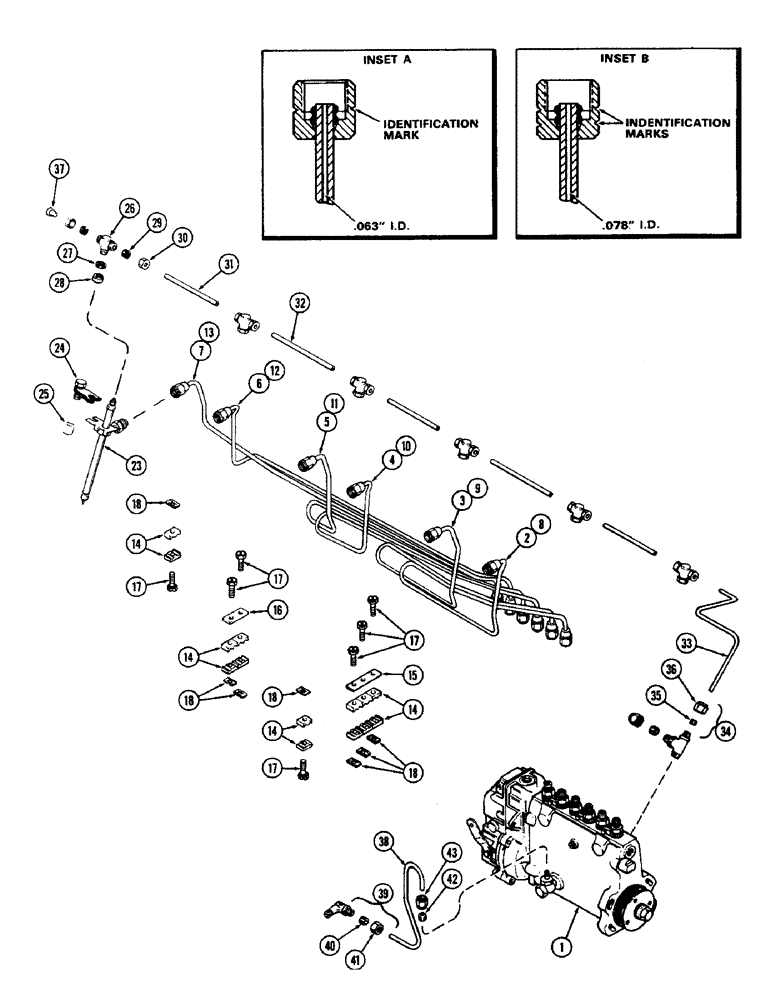

Запчасти Case IH 2470 (046) - FUEL INJECTION SYSTEM, 504BDT DIESEL ENGINE, PUMP AND LINES (03) - FUEL SYSTEM

1

A64643

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (See figure 50)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, #1 cylinder (See inset A)

1шт.

3

A58703

TUBE

ASSY. - fuel injection, #2 cylinder (See inset A)

1шт.

4

A58704

TUBE

ASSY. - fuel injection, #3 cylinder (See inset A)

1шт.

5

A58705

TUBE

ASSY. - fuel injection, #4 cylinder (See inset A)

1шт.

6

A58706

TUBE

ASSY. - fuel injection, #5 cylinder (See inset A)

1шт.

7

A58707

TUBE

ASSY. - fuel injection, #6 cylinder (See inset A)

1шт.

8

A76194

TUBE

ASSY. - fuel injection, #1 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

9

A76195

TUBE ASSY. - fuel injection, #2 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

10

A76196

TUBE ASSY. - fuel injection, #3 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

11

A76197

TUBE ASSY. - fuel injection, #4 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

12

A76198

TUBE ASSY. - fuel injection, #5 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

13

A76199

TUBE ASSY. - fuel injection, #6 cyl. (See inset B)

1шт.

When replacing tube order 1-A58702, 1-A58703, 1-A58704, 1-A58705, 1-A58706 & 1-A58707.

1шт.

14

A58709

BRACKET

- injection tube

14шт.

15

A58708

PLATE

- injection tube bracket (6 line)

1шт.

16

A58710

PLATE

- injection tube bracket (4 line)

1шт.

17

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. hex. slotted mach.

7шт.

18

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, Tinnerman

7шт.

23

A76193

NUT

NOZZLE ASSY. - fuel injection (See figure 50)

6шт.

A138323R

REMAN-INJECT NOZZLE

2470 (BEFORE S/N 8762940) (1/72-12/79), Reman for new PN A76193

6шт.

A138323C

CORE-NOZZLE, INJECT

Return Number

1шт.

24

A58695

CLAMP

ASSY. - nozzle

6шт.

25

A58696

SPACER

- nozzle clamp

6шт.

26

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY. - nozzle leak-off

6шт.

27

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

28

A58961

NUT

- cap

6шт.

29

222-102

SLEEVE,1/4" Tube

12шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

31

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

32

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

33

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

34

A59097

VALVE

- leak-off check (In injection pump), Includes: Ref. 35 and 36

1шт.

35

222-102

SLEEVE,1/4" Tube

2шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

37

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.

38

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

39

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube, Includes: Ref. 40 and 41

1шт.

40

222-102

SLEEVE,1/4" Tube

1шт.

41

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

42

222-102

SLEEVE,1/4" Tube

1шт.

43

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
