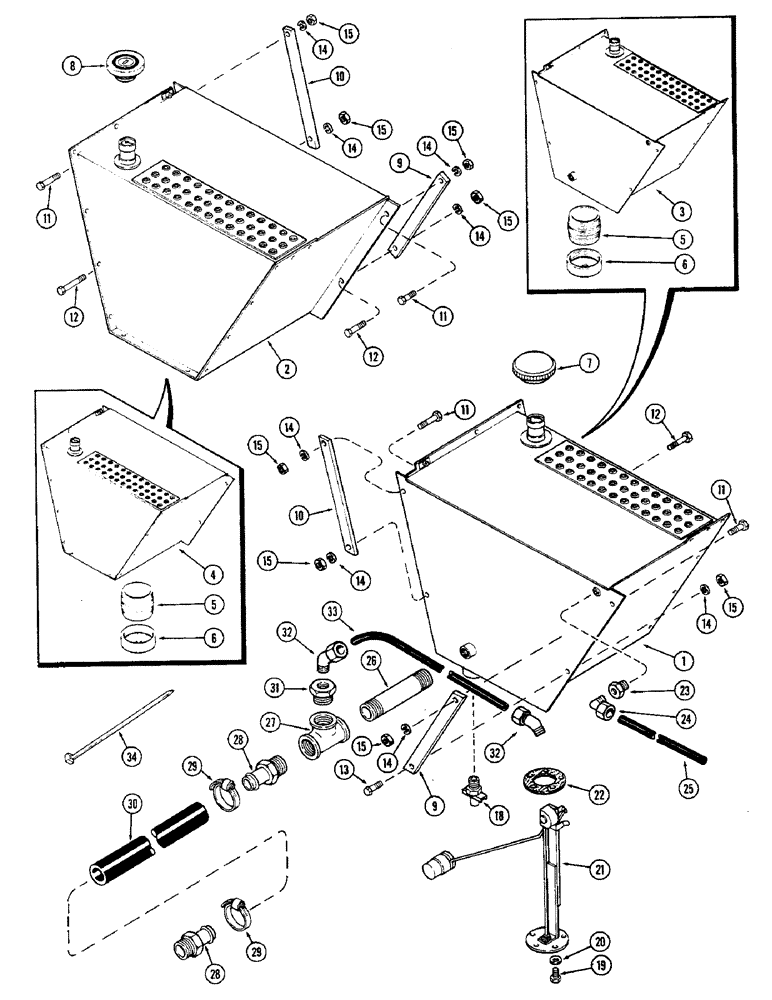

Запчасти Case IH 2470 (044) - FUEL TANKS, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A76381

TANK

- fuel, L.H. (1st used tractor ser. no. 8713174)

1шт.

2

A76380

TANK

- fuel, R.H. (1st used tractor ser. no. 8712956)

1шт.

3

A75867

TANK

- fuel, L.H. (Used prior to trac. ser. no. 8713174)

1шт.

4

A75866

TANK

- fuel, R.H. (Used prior to trac. ser. no. 8712956)

1шт.

5

T38751

SUN VISOR

NIPPLE - fuel tank (Used w/A75866 & A75867 tanks)

2шт.

6

T38591

COVER

CAP - (3" P.T.) (Used w/A75866 & A75867 tanks)

2шт.

7

A32119

CAP

- fuel tank

2шт.

8

A32120

CAP

- lock, fuel tank

2шт.

9

A75878

PLATE

SPACER - fuel tank, front (1/2 x 1-1/2 x 19-45/64")

2шт.

10

A75879

SPACER - fuel tank, rear (1/2 x 1-1/2 x 17-29/32")

2шт.

11

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

12

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

13

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

1шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

129-107

NUT,5/8"-11, G5

8шт.

18

217-107

VALVE

- drain

2шт.

19

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- (#10-32 x 7/16" rd. hd., slotted) (1st used tractor serial no. 8692646)

5шт.

19

163-4

SCREW,Hex, #10 - 32 x 5/8"

- (#10-32 x 5/8" hex.) (Used prior to tractor serial no. 8692646)

5шт.

20

A66619

WASHER

GASKET - seal (Replaces A20662)

5шт.

21

A75880

UNIT

SENDING UNIT - fuel (12 volt)

1шт.

22

A11822

GASKET

- fuel sending unit

1шт.

23

217-1012

ADAPTER,1/4" - 18 Male NPTF x 3/8" - 18 Female NPTF

REDUCER - pipe coupling (1/4 to 3/8")

1шт.

24

222-5110

ELBOW,90 Degree, 7/16"-24 x 1/8" NPTF

- 90 degrees

1шт.

25

A39358

TUBE

- (1/4" O.D.), injector, Serial Range: overflow-tank

1шт.

26

221-246

NIPPLE, LUBE

NIPPLE - pipe (1 x 5-1/2")

1шт.

27

221-426

FITTING,1" NPT

TEE - pipe

1шт.

28

217-156

FITTING,1" Hose Barb x 1" Male NPTF

BARB - hose, straight

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16 to 1-3/4")

2шт.

30

A75881

SLEEVE

HOSE - tank to tank (1 x 1-1/2 x 18-1/2")

1шт.

31

221-62

REDUCER,Hex, 1" x 1/4" NPT

BUSHING - reducer (1" x 1/4")

1шт.

32

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 45 degrees

2шт.

33

A62320

TUBE

- tank to injector (17/64 x 23/64 x 105")

1шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - nylon

2шт.
