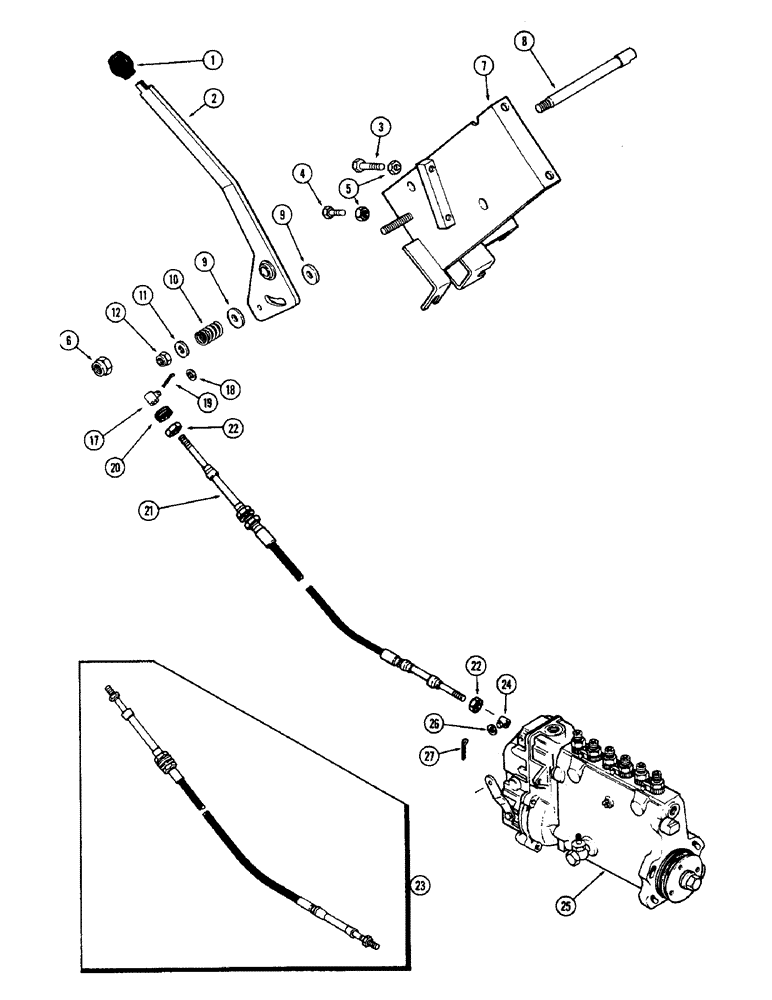

Запчасти Case IH 2470 (042) - THROTTLE CONTROLS, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A65699

KNOB

- throttle lever, w/brass insert (Replaced A23885)

1шт.

2

A75381

LEVER

- throttle

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

2шт.

6

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

1шт.

7

A75366

BRACKET - cockpit

1шт.

8

A75377

SHAFT

- control levers

1шт.

9

A61069

DISC

- friction, throttle lever

2шт.

10

A26546

SPRING

- friction disc

1шт.

11

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

1шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" - 16 Esna)

1шт.

17

A75386

LINKAGE

PIVOT - throttle linkage

1шт.

18

195-102

WASHER,1/4"

- (5/16 x 47/64 x 1/16")

1шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

20

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- cable

1шт.

21

A76409

CABLE

- throttle control (68") (1st used tractor serial no. 8712343) (See figure 47A)

1шт.

22

129-37

NUT,#10-32

2шт.

23

A75387

CABLE

- throttle control (68") (Used prior to tractor serial no. 8712343) (See figure 47A)

1шт.

24

A75386

LINKAGE

PIVOT - throttle cable

1шт.

25

A64643

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (See figure 50)

1шт.

26

195-102

WASHER,1/4"

- (5/16 x 47/64 x 1/16")

1шт.

27

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.
